Specifications
Model Number :
ZL-1052B
Test Current :
1.5~12.5A or 3~32A, customizable per customer’s requirement
MOQ :
1 set
Delivery Time :
10-20 work days
3-wheel Pulley Diameter :
one set for 40 mm, 45 mm, 50 mm (3 pcs per set)
Brand Name :
ZL
Packaging Details :
wooden case packaging
Payment Terms :
T/T,D/P,D/A,L/C
Carriage Running Speed :
0.33 m/s for 2‑wheel configuration, 0.1 m/s for 3‑wheel configuration (optional)
2-wheel Pulley Diameter :
one set each for 60 mm, 80 mm, 120 mm, 160 mm, 200 mm (2 pcs per set)
Price :
UDS4000-7000
2-wheel Test Weights :
two pieces each of 500g, 1000g, 2000g, 3000g, 7000g, total 10 pcs
Supply Ability :
30 Sets
Carriage Travel :
1000 mm
Certification :
CE,ISO
3-wheel Test Weights :
two pieces each of 21N, 28N, 42N
Place of Origin :
Guangdong, China
Description
Two & Three Wheel Bending Tester Wire & Cable Mechanical Flexibility Testing Machine
This advanced wire and cable flexing tester supports multiple optional test loads, meeting diverse dynamic flexing test requirements for flexible wires and cables. Designed for manufacturers and inspection authorities, it ensures comprehensive mechanical flexibility testing.
Compliance Standards
Manufactured in accordance with: IEC227-2, IEC245-2, UL1581, VDE0472, IEC60227-2(ed2)1997, IEC60245-2(ed2)1994+A1:1997, HD22.1 Clause 5.6.3.1, 5.6.3.2, GB5023.2 and GB5013.2.
Technical Specifications
Parameter Specification
Carriage Travel 1000 mm
Carriage Running Speed 0.33 m/s for 2-wheel configuration, 0.1 m/s for 3-wheel configuration (optional)
Test Weights 2-wheel: two pieces each of 500g, 1000g, 2000g, 3000g, 7000g, total 10 pcs, combinable for different loads (1+0.5=1.5Kg, 3+0.5=3.5Kg, 3+1=4Kg, 1+2+3=6Kg, 7+0.5=7.5Kg). 3-wheel: two pieces each of 21N, 28N, 42N
Pulley Diameter 2-wheel: one set each for 60 mm, 80 mm, 120 mm, 160 mm, 200 mm (2 pcs per set). 3-wheel: one set for 40 mm, 45 mm, 50 mm (3 pcs per set)
Workstation Two two-wheelers and three-wheelers, one set of mechanism and one set of wheelsets. The three wheels are twisted at an Angle of 18 degrees to each other.
Test Current 1.5~12.5A or 3~32A, customizable per customer's requirement
Test Voltage 1∮AC 220V/ 60Hz or 3∮AC 380V/ 60Hz
Counter Electronic, 8-digit, automatically stops when the set number of times is reached.
Machine Weight 188×53×150kg
Power Supply 3∮AC 380V,35A
Overall Dimension (L×W×H) Approx. 1800×650×1400 mm
Test Criteria
Pass Criteria: During testing, no open circuit or short circuit in the tested sample until the machine stops running.
Fail Criteria: Sample experiences open circuit, short circuit between conductors, or short circuit between test sample and pulley.

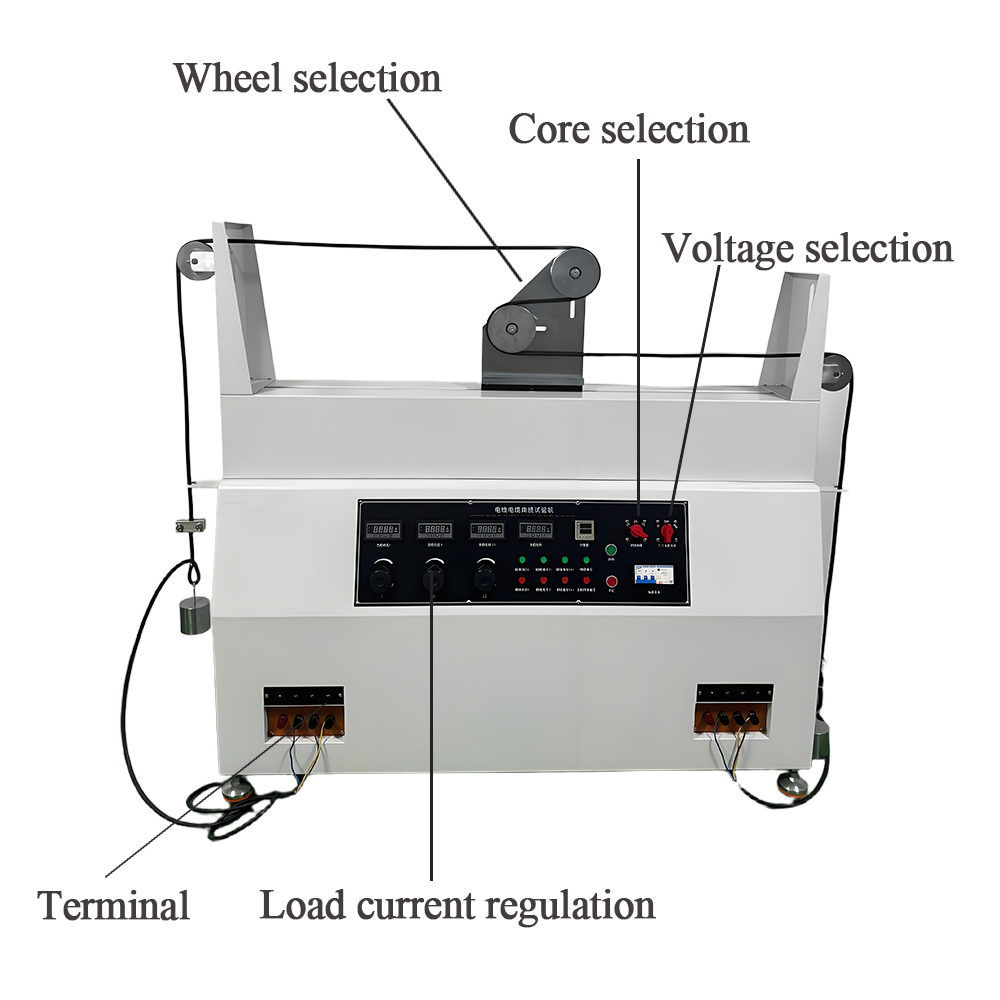

Sample Configuration
  • Sample selection: one-core, two-core, three-core
  • Three-core voltage options: Adjustable 0V, 220V, 380V
  • Power supply: three-phase, five-wire system (A, B, C live wires, N neutral wire, earth wire)
Application Scope
Suitable for performing dynamic flexing tests under load on flexible cables with rubber-plastic insulation and sheaths. The unit automatically stops upon detecting conductor open-circuit, short-circuit between conductors, or short-circuit between cable specimen and pulley.
Test Method
A test specimen approximately 7 meters in length is wound around two pulleys of specified diameter at its middle section. Weights are applied to both ends of the specimen, and electric current is passed through it. The pulleys move reciprocally over a stroke of 1 meter at specified speeds (0.33 m/min for two-pulley type or 0.1 m/min for three-pulley type), causing the specimen to undergo repeated bending and stretching. The test automatically stops when wire breakage occurs or when the preset cycle count is reached.
