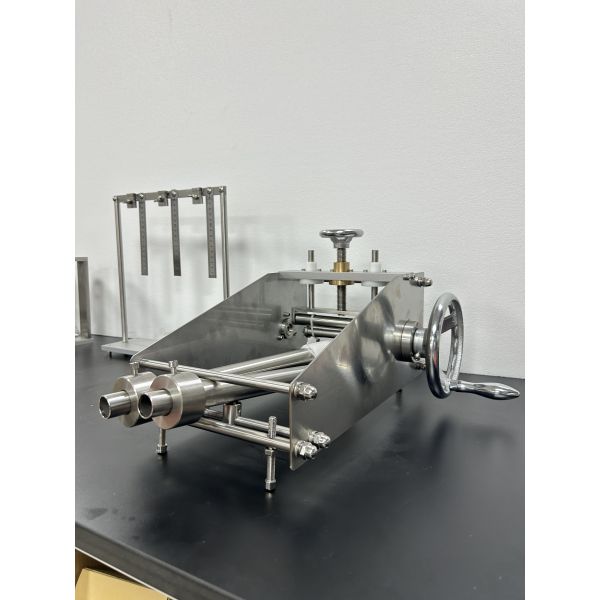

IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
Specifications
Brand Name :
ZL
Model Number :
ZL-1022A
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
USD 1,000.00 - 1200.00 / unit
Delivery Time :
7-10 days
Packaging Details :
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device will be Packaged within wooden case
Name :
Low Temperature Winding Test Device
Winding Mandrel Diameters :
Ø4 / Ø7 / Ø8 / Ø10 / Ø12 / Ø14 / Ø16 / Ø20 / Ø23 / Ø26 / Ø32 / Ø38 mm (12 types in total)
Wire Guides :
Ø3.5 mm / Ø6 mm / Ø10 mm / Ø12 mm / Ø16 mm (one of each)
Material :
SUS304 Stainless Steel
Standards :
GB/T 2951.4, IEC 60811-1-4, and VDE 0472
Model :
ZL-1022A
Description
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
This precision test apparatus is engineered in compliance with domestic and international safety standards including GB/T 2951.4, IEC 60811-1-4, and VDE 0472. It evaluates whether insulated wires develop cracks when subjected to low-temperature coiling conditions. Testing must be performed in conjunction with a compatible low-temperature test chamber.
Application Scope
  • Circular insulated cores with outer diameter ≤ 12.5 mm
  • Insulated cores where cross-section prevents preparation of dumbbell test pieces
  • Cables with outer diameter ≤ 12.5 mm
  • Flat cables with minor axis dimension ≤ 20 mm
Technical Specifications
Winding Mandrel Diameters Ø4 / Ø7 / Ø8 / Ø10 / Ø12 / Ø14 / Ø16 / Ø20 / Ø23 / Ø26 / Ø32 / Ø38 mm (12 types total)
Wire Guides Ø3.5 mm / Ø6 mm / Ø10 mm / Ø12 mm / Ø16 mm (one of each)
Material SUS304 Stainless Steel
IEC 60811-1 VDE 0472 Low Temperature Winding Test Device
