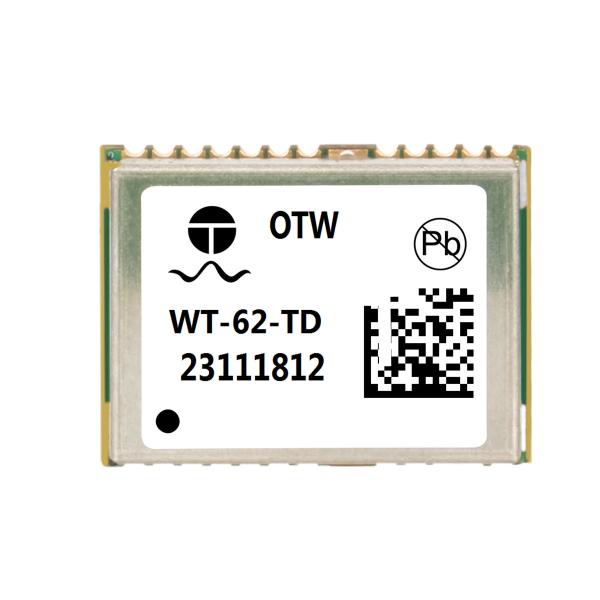

Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module
Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module
Specifications
Brand Name :
OTW
Model Number :
WT-62-TD
Place of Origin :
China
MOQ :
10pcs
Price :
US $2.4 - 11.80/
Payment Terms :
T/T,Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Application :
Positioning, surveying and mapping, etc
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Baud rate :
4800bps-921600bps,Default9600bps
Update frequency :
1Hz-10Hz(default 1Hz)
Description

Smart Gps Tracker & Locator Low Power Gps Devices Use Gps Modules

Product descriptions from the supplier

Overview

Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module
Application:
●Vehicle positioning monitoring terminal, traffic recorder
●Car tracker, motorcycle tracker, etc
●Portable navigation
●Walkie-talkies
●Meteorological detection
Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module
Features:
• With antenna status detection and antenna short circuit protection
• Support for internal ephemeris
• Support D-GNSS foundation enhancement
• Support for A-GNSS assisted enhancement
• Dual UART ports
• Has internal power-on reset function and supports user external reset
• Compatible with mainstream GPS modules of the same size
Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module

Bottom view
Module pin allocation
Glonass Arduino GPS Module GNSS Module 9600bps OEM GPS Module
Module performance
Chip WT-62-TD
Receiver type

BDS:B1I+B1C
GPS/QZSS/SBAS:L1C/A
GALILEO:E1
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -163dbm Capture: -160dbm Cold start -147dbm
Cold start Average 28seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 3m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Port
Port

2 URAT
1 I2C
2 SPI
Physical property
Type 24 pin stamp holes
Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage 1.8V~3.6V
Power Consume

Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
