Specifications
Place of Origin :
China
Model Number :
WT-11-UB
Price :
CN¥27.11/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+ BDS
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
0.25Hz-10Hz(default 1Hz)
Voltage :
1.65V to 3.6V
Power consumption :
Running Mode 16.5mA @3.0V
Size :
9.7mm*10.1mm*2.4mm
Output Mode :
UART+TTL
Description

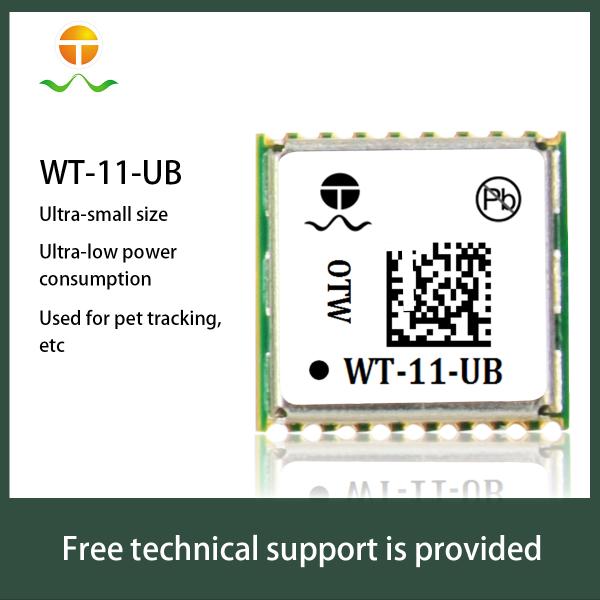

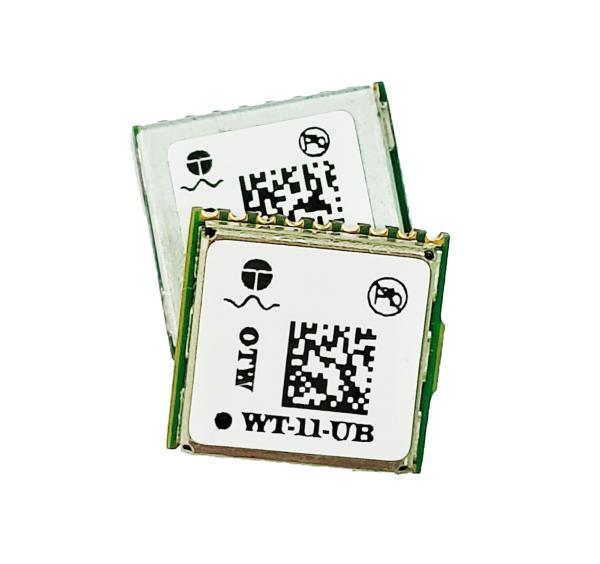

WT-11-UB Ultra Consumption GNSS Receiver Module
WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output

High-performance GNSS module with UART TTL and NMEA GLL output, designed for precision positioning and surveying applications.

Key Features
  • Multi-system support: GPS, GLONASS, and BDS
  • Low power consumption: 16.5mA @3.0V in operation mode
  • Compact size: 9.7mm × 10.1mm × 2.4mm
  • Wide voltage range: 1.65V to 3.6V
  • Configurable baud rate from 4800bps to 921600bps
  • Multiple NMEA message outputs including RMC, VTG, GGA, GSA, GSV, GLL
Product Specifications
Attribute Value
Type GNSS Module
Brand OTW
Chipset XX
Operating Mode GPS+GLONASS+BDS
Output Mode UART+TTL
Country of Origin Shenzhen Guangdong, China
OTW GNSS Module GPS GLONASS BDS UART TTL Output OTW GNSS Module GPS GLONASS BDS UART TTL Output OTW GNSS Module GPS GLONASS BDS UART TTL Output
Technical Specifications
Receiver Type: GPS/QZSS L1 C/A, GLONASS L1
Protocol: NMEA-0183 compliant or custom protocol
Channels: 56
Sensitivity: Tracking: -161dBm, Hot start: -148dBm, Cold start: -148dBm
Start Time: Cold start: 29s (avg), Hot start: 1s (avg)
Accuracy: Horizontal position: average, SBAS < 2.5m
Max Height: 18,000m
Max Speed: 515m/s
Max Acceleration: ≤4G
Positioning Mode: A-GNSS
Physical Properties
Package Type: 18PIN LCC

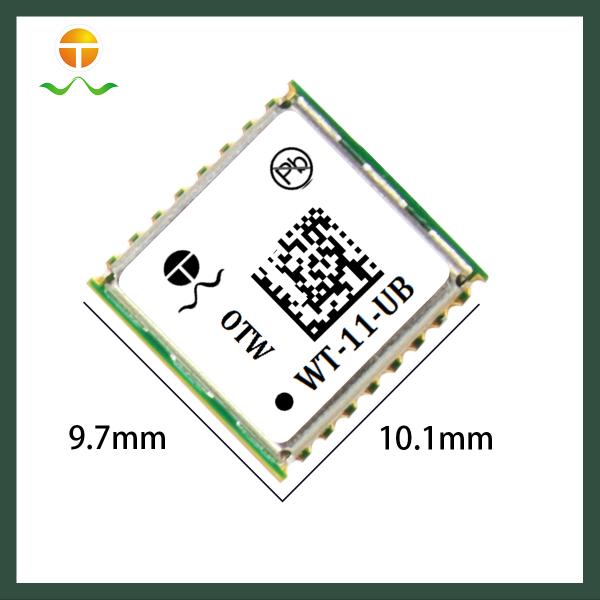

Dimensions: 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Power Requirements
Voltage Range: 1.65V to 3.6V
Power Consumption: Operation: 16.5mA@3V, Power saving: 4.5mA@3V
Operating Environment
Temperature Range: -40℃ to 85℃
Humidity Range: 5% to 95% non-condensing
OTW GNSS Module GPS GLONASS BDS UART TTL Output OTW GNSS Module GPS GLONASS BDS UART TTL Output OTW GNSS Module GPS GLONASS BDS UART TTL Output
