Specifications
Place of Origin :
China
Model Number :
WT-11-AKL
Price :
CN¥20.69/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+ BDS
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-10Hz(default 1Hz)
Voltage :
3.6V to 5.5V
Power consumption :
25 mA @3.3V
Size :
9.7mm*10.1mm*2.4mm
Output Mode :
UART+TTL
Description

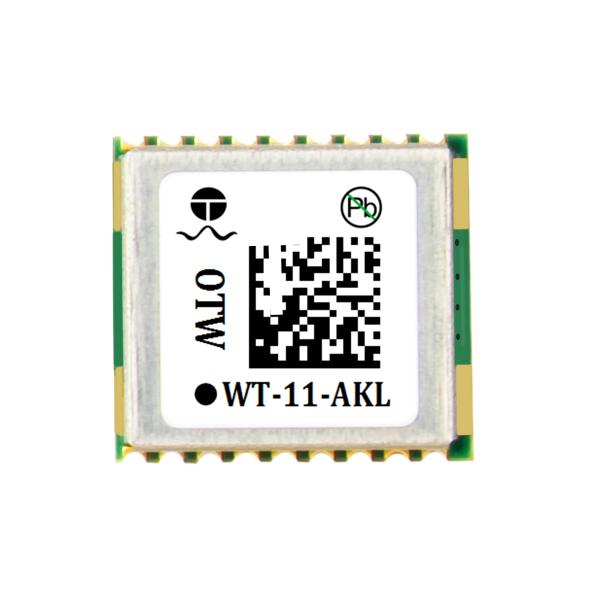

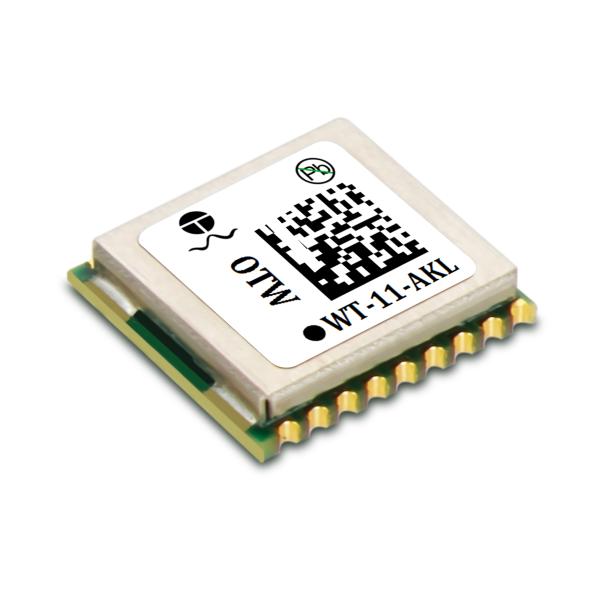

WT-11-AKL 4G Mini GPS Module for Fleet Management
WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output
Product Overview

Compact GNSS module with NMEA GGA output, designed for precise positioning in fleet management, surveying, and mapping applications. Features multi-system support including GPS, GLONASS, and BDS.

4G GPS Module for Fleet Management with NMEA GGA Output 4G GPS Module for Fleet Management with NMEA GGA Output 4G GPS Module for Fleet Management with NMEA GGA Output
Key Specifications
Model WT-11-AKL
Receiver Type BDS: B1I+B1C
GPS/QZSS: L1C/A
GLONASS: L1
Protocol NMEA-0183 compliant or custom protocol
Baud Rate 4800bps~921600bps (default 9600bps)
Channels 32
Sensitivity Tracking: -162dBm
Capture: -160dBm
Cold start: -148dBm
Start Time Cold start: 29s average
Hot start: 1s average
Accuracy Horizontal position: <2.5m with SBAS
Max Height 18000m
Max Speed 515m/s
Max Acceleration ≤4G
Update Rate 1Hz-10Hz
Physical Characteristics

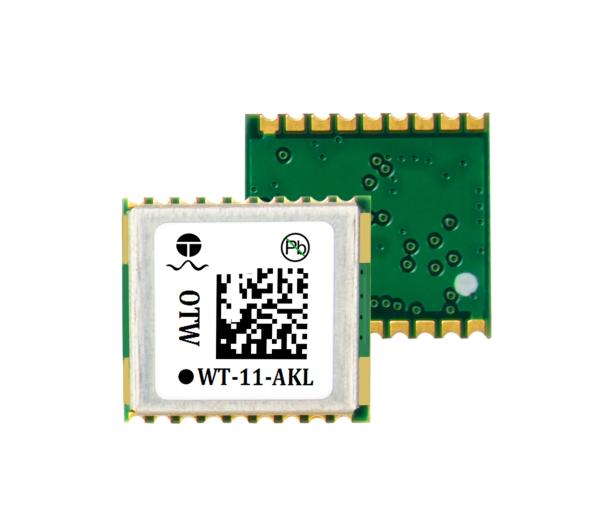

Package Type 18PIN LCC

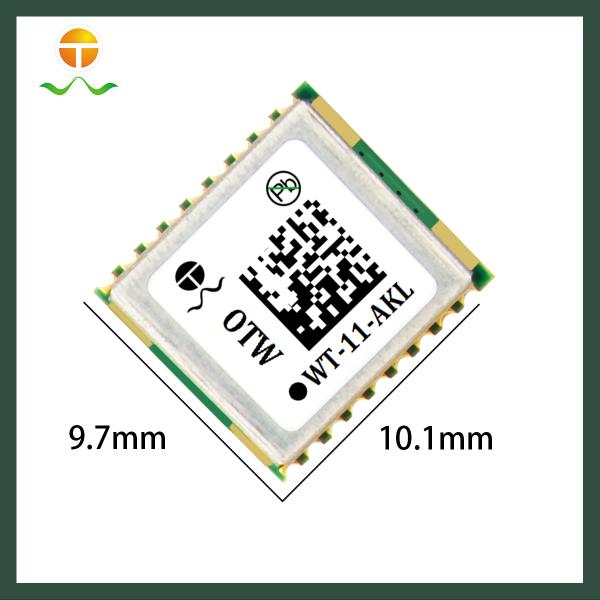

Dimensions 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Weight Lightweight design
Power Requirements
Voltage Range 3.6V~5.5V
Power Consumption 25mA @3.3V (running mode)
8mA @3.3V (standby mode)
Environmental Specifications
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Humidity Range 5% to 95% non-condensing
Additional Technical Details
Output Mode UART+TTL
NMEA Messages RMC, VTG, GGA, GSA, GSV, GLL
Positioning Mode A-GNSS
4G GPS Module for Fleet Management with NMEA GGA Output 4G GPS Module for Fleet Management with NMEA GGA Output 4G GPS Module for Fleet Management with NMEA GGA Output
Key Features
  • Multi-constellation support (GPS+GLONASS+BDS)
  • Compact 18PIN LCC package design
  • Low power consumption for extended operation
  • High sensitivity receiver for challenging environments
  • Wide operating voltage range (3.6V-5.5V)
  • Robust performance across extreme temperatures
  • Configurable update rate from 1Hz to 10Hz
Note: All specifications are typical values measured at 25°C unless otherwise noted.
