Specifications
Place of Origin :
China
Model Number :
WT-11-AK
Price :
CN¥19.98/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+ BDS
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-10Hz(default 1Hz)
Voltage :
3.6V to 5.5V
Power consumption :
25 mA @3.3V
Size :
9.7mm*10.1mm*2.4mm
Output Mode :
UART+TTL
Description

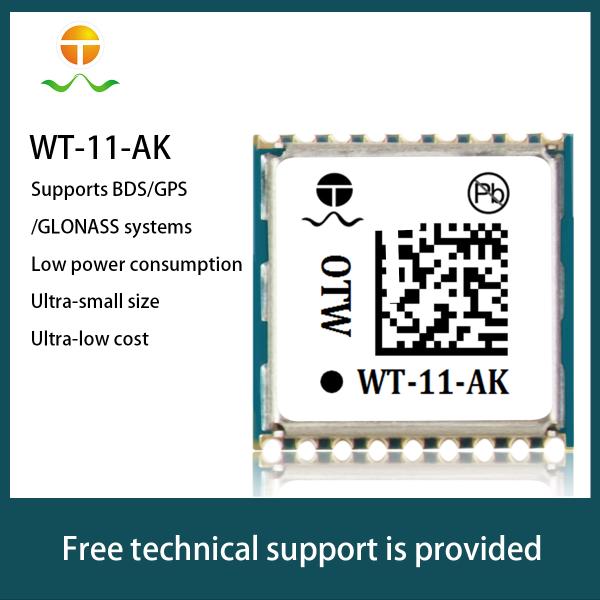

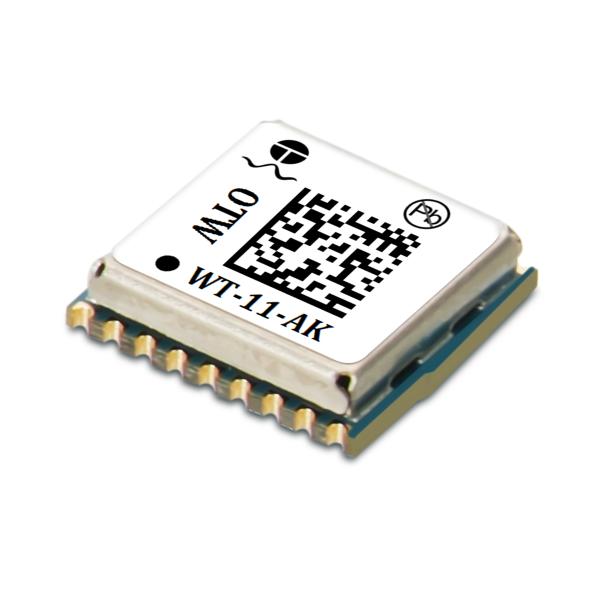

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking
Product Overview

Compact GNSS module designed for precise positioning in small vehicles and drone applications, featuring multi-system compatibility and low power consumption.

OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars
Key Specifications
Type GNSS Module
Brand OTW
Operating Systems GPS+GLONASS+BDS
Update Frequency 1Hz-10Hz (default 1Hz)
Voltage Range 3.6V to 5.5V
Dimensions 9.7mm × 10.1mm × 2.4mm
Technical Performance
Receiver Type BDS: B1I+B1C
GPS/QZSS: L1C/A
GLONASS: L1
Protocol NMEA-0183 compliant or custom protocol
Sensitivity Tracking: -162dBm
Capture: -160dBm
Cold start: -148dBm
Startup Time Cold start: 29s average
Hot start: 2-3s average
Position Accuracy Horizontal: <2.5m (CEP50) with SBAS
Max Operational Limits Altitude: 18,000m
Speed: 515m/s
Acceleration: ≤4G
Physical Characteristics
  • 18-pin stamp hole design
  • Compact dimensions: 10.1mm × 9.7mm × 2.5mm (±0.5mm)
  • Lightweight construction for space-constrained applications
Power Requirements
  • Operating voltage: 3.6V-5.5V
  • Power consumption: 25mA @3.3V (operation mode)
  • 8mA @3.3V in power saving mode (PSM, 1Hz)
Environmental Specifications
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Humidity range: 5% to 90% non-condensing
OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars OTW GNSS Module GPS+GLONASS+BDS for Drones and Cars
