Specifications
Place of Origin :
China
Model Number :
WT-11-UN
Price :
CN¥35.67/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+ BDS
Output Mode :
TTL
Baud rate :
4800bps-921600bps,Default9600bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
1.65V to 3.6V
Power consumption :
21mA @3.0V
Size :
9.7mm*10.1mm*2.4mm
Description

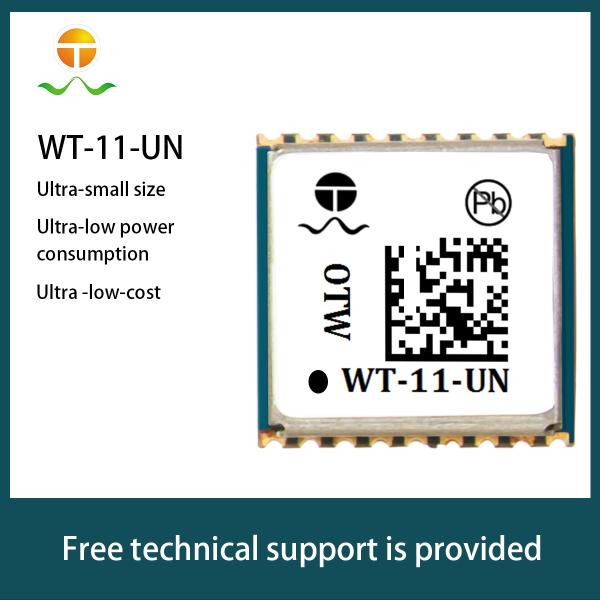

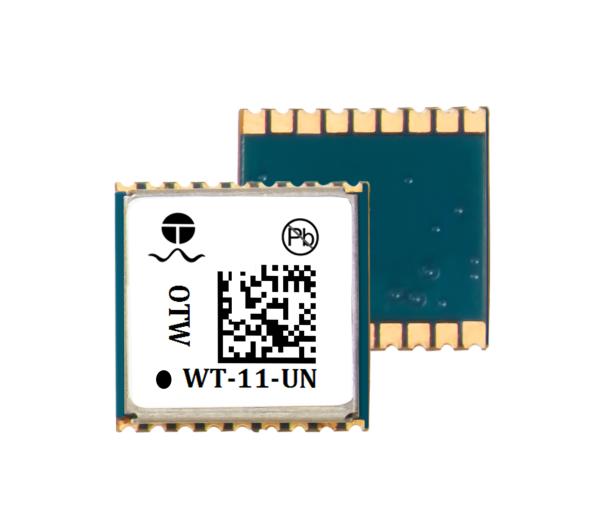

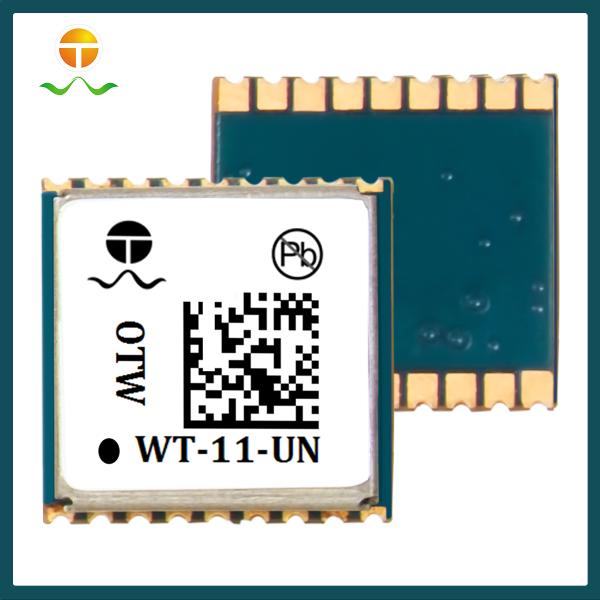

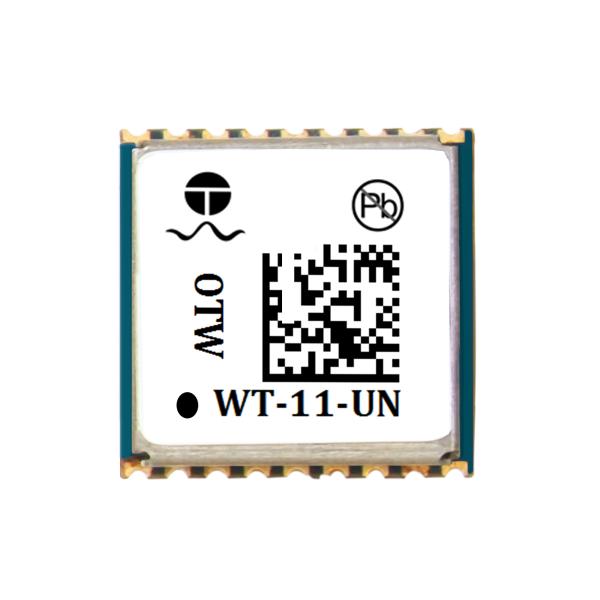

XX Chipset WT-11-UN Precision GNSS Module
High-performance GPS+GLONASS+BDS satellite positioning module for precise navigation and surveying applications
OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset
Key Specifications
Attribute Value
Type GNSS Module
Brand OTW
Chipset XX
Operating Mode GPS+GLONASS+BDS
Output Mode UART+TTL+R232
Baud Rate 4800bps-921600bps (Default 9600bps)
Update Frequency 1Hz-18Hz (default 1Hz)
Voltage 1.65V to 3.6V
Power Consumption 21mA @3.0V
Size 9.7mm × 10.1mm × 2.4mm
Technical Performance
Receiver Type GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Protocol NMEA-0183 compliant or custom protocol
Sensitivity Tracking: -167dBm
Capture: -158dBm
Cold start: -148dBm
Startup Time Cold start: 26s (average)
Hot start: 1s (average)
Positioning Accuracy Horizontal: <2.0m (with SBAS)
Physical Characteristics

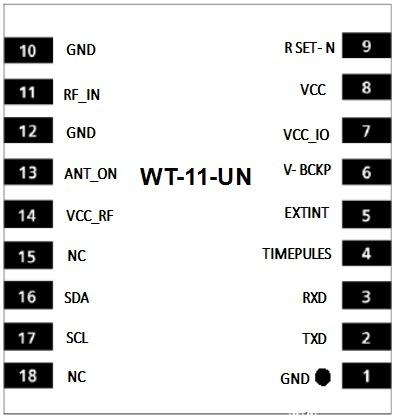

Package Type: 18PIN LCC

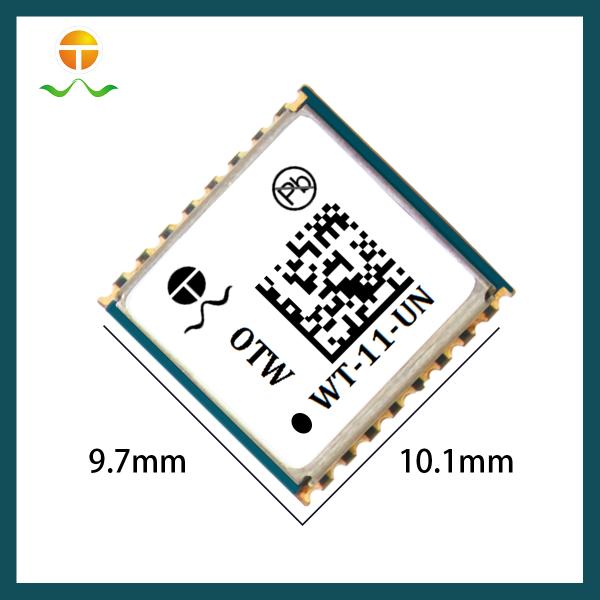

Dimensions: 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Operating Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 125℃
Humidity Range: 5% to 95% non-condensing
Interfaces
2 × UART ports
1 × I2C interface
2 × SPI interfaces
OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset OTW GNSS Module GPS GLONASS BDS Satellite Positioning XX Chipset
