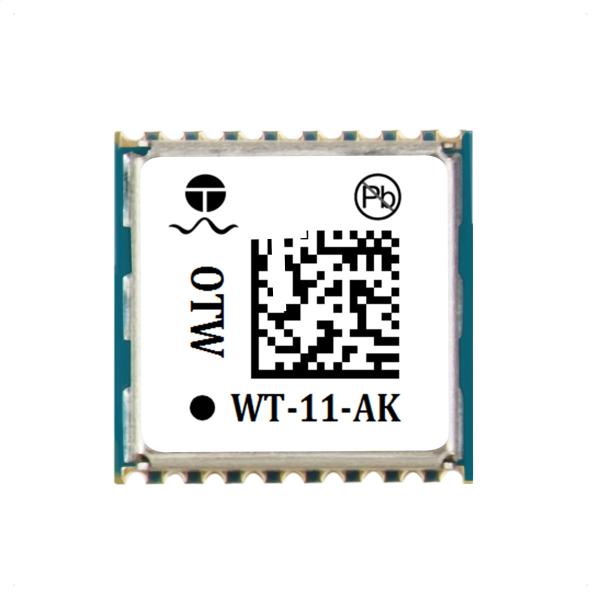

OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
Specifications
Brand Name :
OTW
Model Number :
WT-11-AK
Place of Origin :
China
MOQ :
10pcs
Price :
US $2.4 - 11.80/
Payment Terms :
T/T,Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Type :
GNSS Module
Brand :
OTW
Operating mode :
GPS+GLONASS+ BDS
Output Mode :
TTL
Baud rate :
4800bps-921600bps,Default9600bps
Update frequency :
0.25Hz-10Hz(default 1Hz)
Power consumption :
25 mA @3.3V
Size :
9.7mm*10.1mm*2.4mm
Description

Product descriptions from the supplier

Overview

OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
Application:
●On-board and ship-borne positioning and navigation
●Timing
●Wearable devices
●Portable equipment
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
Features:
●Supports BDS/GPS/GLONASS multi-system joint positioning and single-system independent positioning.
●Provides active antenna detection and protection
●Power Management
Solution 1: DCDC is used to supply the core LDO, supporting 2.7~3.6V single power supply, typical 3.3V power supply.
Solution 2: Support 1.8V to 3.3V direct power supply.
●RTC and backup circuit power supplies as low as 1.4V.
●Small size, overall size :10.1mm*9.7mm*2.5mm
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update

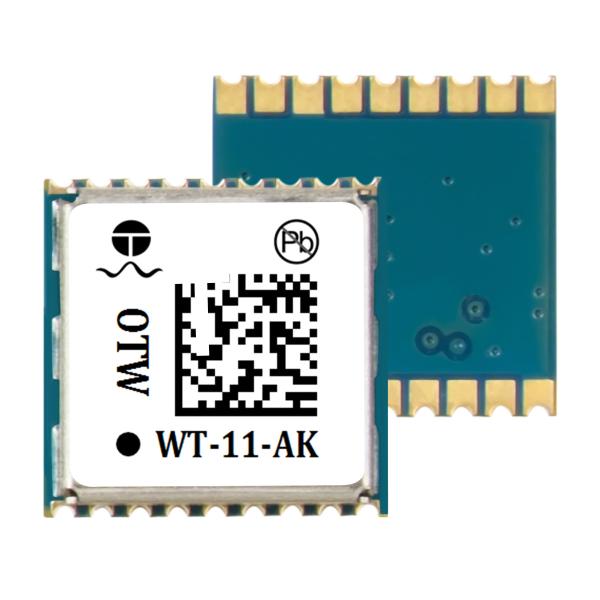

Bottom view
Module pin allocation
OTW GNSS Module 32 Channels GPS Module GLONASS BDS 10Hz Update
Module performance
Model WT-11-AK
Receiver type

BDS:B1I+B1C
GPS/QZSS:L1C/A
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 32
Sensitivity Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI
Physical property
Type 18PIN LCC package
Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 3.6V~5.5V
Power Consume

Running mode: 25mA@3.3V, standby mode: 8mA (@3.3V)
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
