Specifications
Place of Origin :
China
Model Number :
WT-62-UBL
Price :
CN¥29.25/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS
Output Mode :
UART+TTL
Baud rate :
4800bps-921600bps,Default 9600bps
NMEA sentences :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-10Hz(default 1Hz)
Voltage :
1.8V to 3.6V
Power consumption :
17 mA @3.3V
Size :
12.2mm*16mm*2.4mm
Description

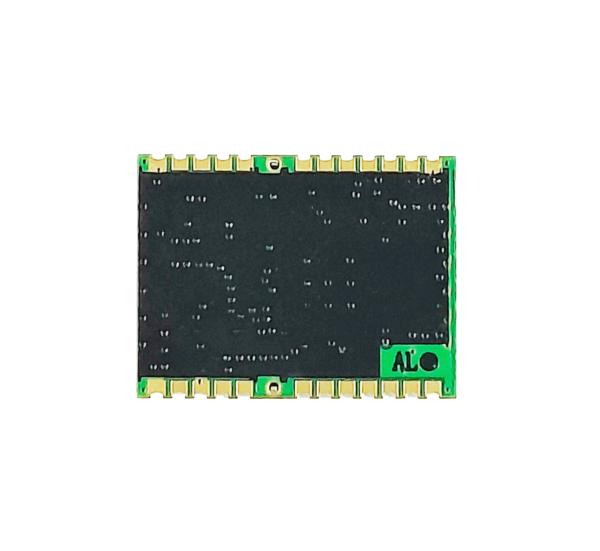

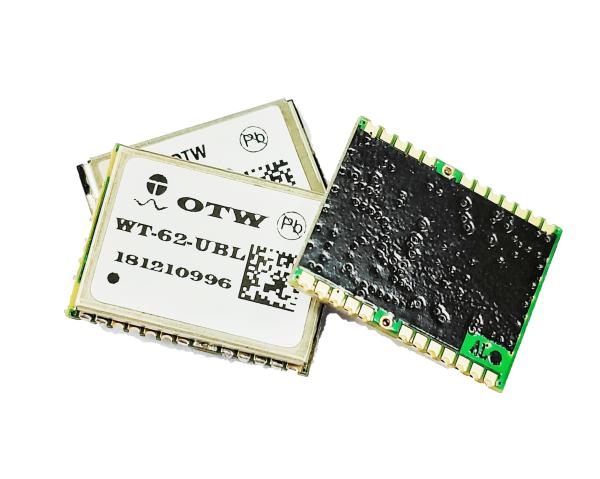

WT-62-UBL GNSS Module for Motorcycle GPS Systems with GPS+GLONASS Support
Product Overview

High-performance GNSS module designed for motorcycle GPS systems, featuring dual GPS+GLONASS support for enhanced positioning accuracy and reliability.

OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems
Key Specifications
Attribute Value
Type GNSS Module
Brand OTW
Operating Mode GPS+GLONASS
Output Mode UART+TTL
Baud Rate 4800bps-921600bps (Default 9600bps)
Voltage 1.8V to 3.6V
Power Consumption 17 mA @3.3V
Dimensions 12.2mm × 16mm × 2.4mm
Technical Performance
Receiver Type GPS/QZSS L1 C/A, GLONASS L1
Protocol NMEA-0183 compliant or custom protocol
Channels 56
Sensitivity Tracking: -162dBm, Capture: -160dBm, Cold start: -148dBm
Start Time Cold start: 29s (avg), Hot start: 1s (avg)
Accuracy Horizontal Position: <2.5m with SBAS
Update Frequency 1Hz-10Hz (default 1Hz)
Physical Characteristics
Interface: 24 pin stamp holes
Ports: 2 UART, 1 I2C, 2 SPI
Dimensions: 16.0mm × 12.2mm × 2.4mm (±0.5mm)
Power Specifications
Voltage Range: 1.8V-3.6V
Power Consumption: Operation: 17mA@3V, Power saving: 5mA@3V
Environmental Specifications
Operating Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃
Humidity Range: 5% to 95% non-condensing
OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems OTW GNSS Module GPS GLONASS UART TTL for Motorcycle Systems
