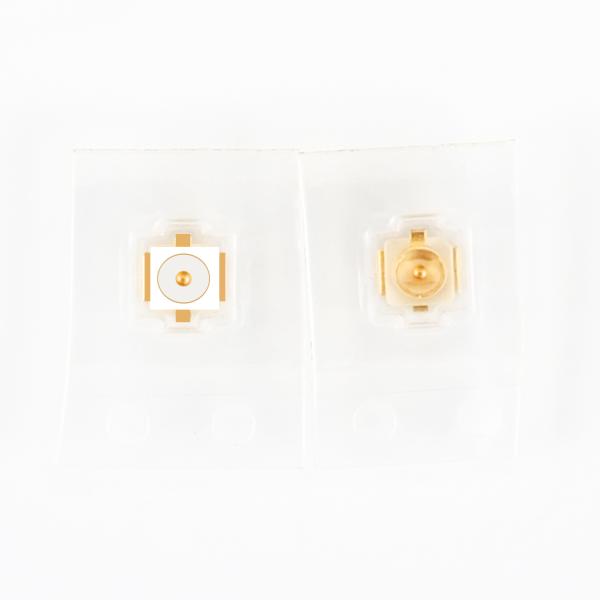

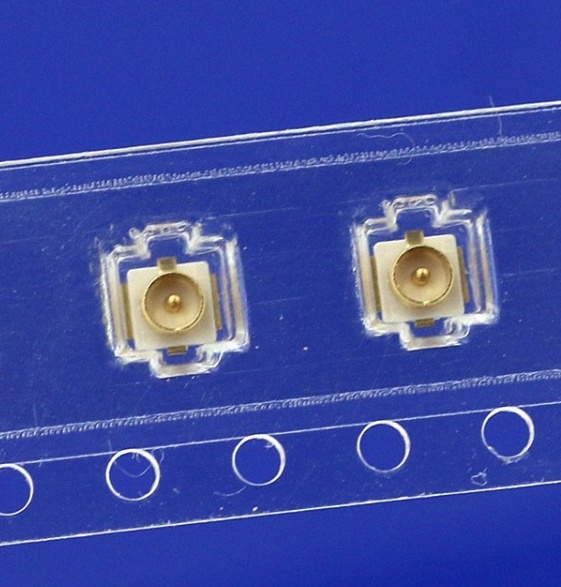

IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
Specifications
Brand Name :
OTW
Model Number :
20279-001E-01
Place of Origin :
China
MOQ :
50pcs
Price :
0.05-0.39
Payment Terms :
T/T, Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Application :
PCB Mount Socket RF Coaxial Connector
Type :
IPEX / IPX connector
Country of Origin :
CHINA
Brand :
OTW
D/C :
Ipex U.fl Mhf4 Plug
Product Name :
Rf Connector Rf Coax U.fl/Ipex Smt Connectors
Impedance :
50Ω
Frequency :
0-4GHz
Supplier Type :
Original manufacturer
Size :
2.6mm*2.6mm*1.25mm
Description

20279-001E-01 IPEX U.FL SMD SMT Solder for PCB Mount Socket Jack Female RF Coaxial Connector

Product descriptions from the supplier

Overview

IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
Application:
PCB wireless module network card, routing, Bluetooth and other devices as mini antenna interface.
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
Features:
High frequency low loss easy to install.
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
IPEX U.FL PCB Mount RF Coaxial Connector 50Ω 0-4GHz
Product performance
Model 20279-001E-01
Designation Ipex1 Patch antenna seat
COPPER

Brass + phosphor copper
Plastic LCP
Size 2.6mm*2.6mm*1.25mm
Frequency range 0-4GHZ
Characteristic impedance 50Ω
Insulation resistance 500MΩ Min
Withstand voltage 200V AC
Standing-wave ratio 1.3MAX(0-3GHZ 1.2MAX)
Operating temperature -40℃ to 85℃
