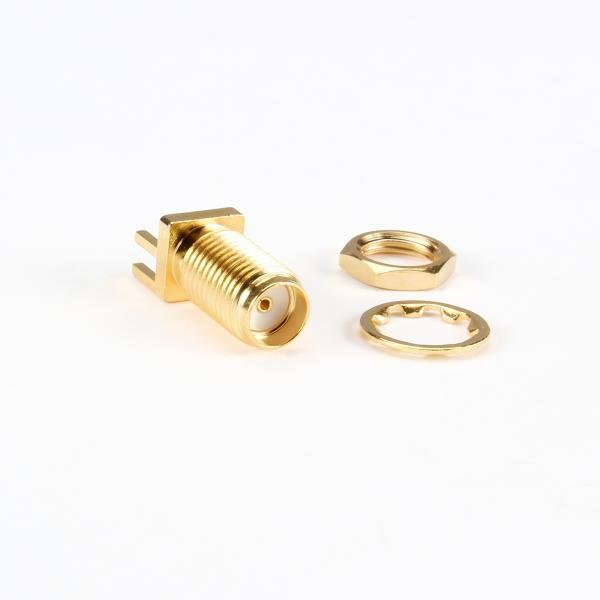

SMA Female PCB Mount Connector 50Ω 2700V Max Brass
SMA Female PCB Mount Connector 50Ω 2700V Max Brass
Specifications
Brand Name :
OTW
Model Number :
SMA-KE-16.5
Place of Origin :
China
MOQ :
50pcs
Price :
0.05-0.39
Payment Terms :
T/T, Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Application :
PCB mount Connector
Country of Origin :
CHINA
Description :
Female PCB mount Connector
Material :
Brass
Working Voltage :
2700V max
VSWR :
1.10:1
Impedance :
50Ω
Description

2700V Max SMA Female PCB Mount Connector 100m/s2 50 OHM

Product descriptions from the supplier

Overview

SMA Female PCB Mount Connector 50Ω 2700V Max Brass
Application:
● PCB Mounting Wifi Antenna Connector
● RF signal connection
SMA Female PCB Mount Connector 50Ω 2700V Max Brass
Features:
● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety
● Gold ion plating ● Stable performance and strong durability ● High reliability, long life
SMA Female PCB Mount Connector 50Ω 2700V Max Brass
SMA Female PCB Mount Connector 50Ω 2700V Max Brass
SMA Female PCB Mount Connector 50Ω 2700V Max Brass
Product performance
Model SMA-KE-16.5
Vibration 100m/s2 (10~500Hz)
Impedance

50 OHM
Frequency Range DC – 11GHz
Working Voltage 2700V max
Break-down Voltage 4000V rms @ sea level
Contact resistance ≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact
Average power 3KW max
Insulation resistance ≥10000M OHM
VSWR ≤ 1.10
Durability (mating) ≥500 (cycles)
Temperature range -40~+85°C
Material Brass
Size Leg length 16.5MM Teeth length 11MM 1.7MM spacing
