50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
Specifications
Brand Name :
OTW
Model Number :
SMA-KE-14.5
Place of Origin :
China
MOQ :
50pcs
Price :
0.05-0.39
Payment Terms :
T/T, Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Brand :
OTW
Description :
Female PCB mount Connector
Material :
Brass
Plating :
GOLD
Working Voltage :
2700V max
Impedance :
50Ω
Description

Stable and Durable Attachment for High Reliability and Long Life

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

Product descriptions from the supplier

Overview

50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
Application:
● PCB Mounting Wifi Antenna Connector
● RF signal connection
50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
Features:
● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety
● Brass/Gold plating ● Stable performance and strong durability ● High reliability, long life
50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
50 Ohm Female PCB Mount Connector SMA-KE-14.5 Gold Plated
Product performance
Model SMA-KE-14.5
Vibration 100m/s2 (10~500Hz)
Impedance

50 OHM
Frequency Range DC – 11GHz
Working Voltage 2700V max
Break-down Voltage 4000V rms @ sea level
Contact resistance ≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact
Average power 3KW max
Insulation resistance ≥10000M OHM
VSWR ≤ 1.10
Durability (mating) ≥500 (cycles)
Temperature range -40~+85°C
Material Brass

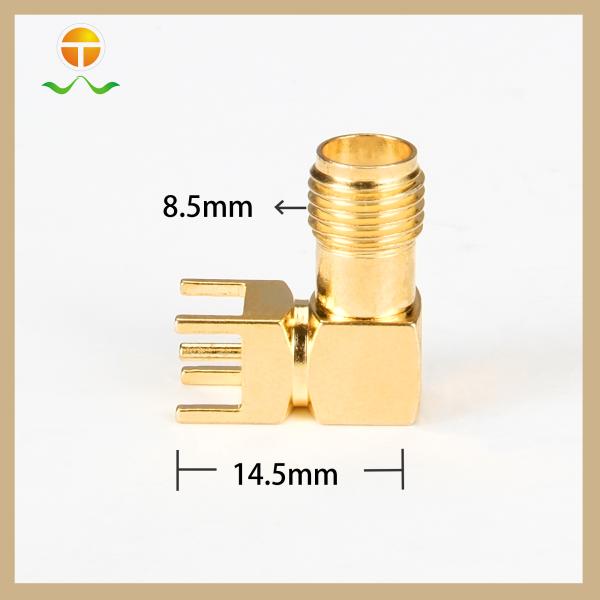

Size Leg length 14.5MM Teeth length 8.5MM 1.7MM spacing
