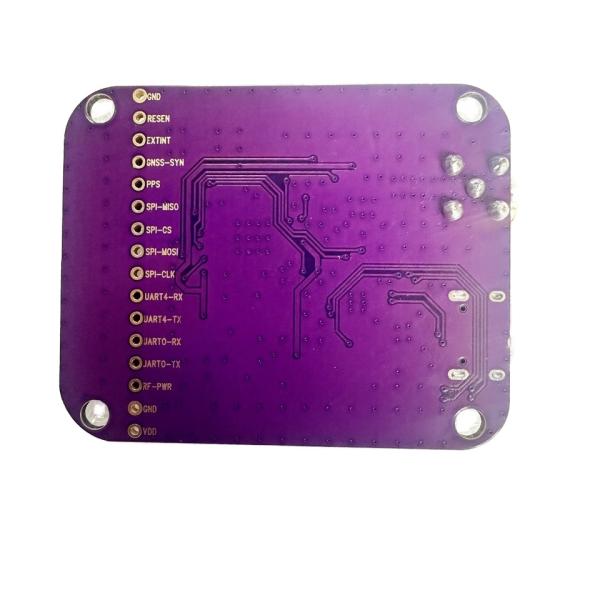

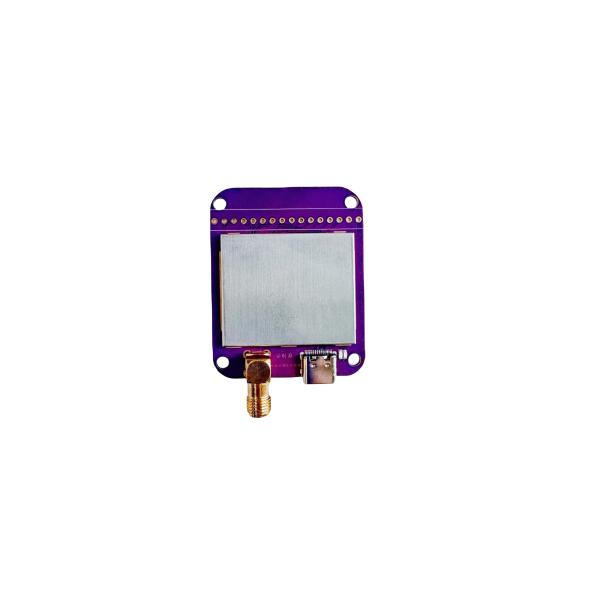

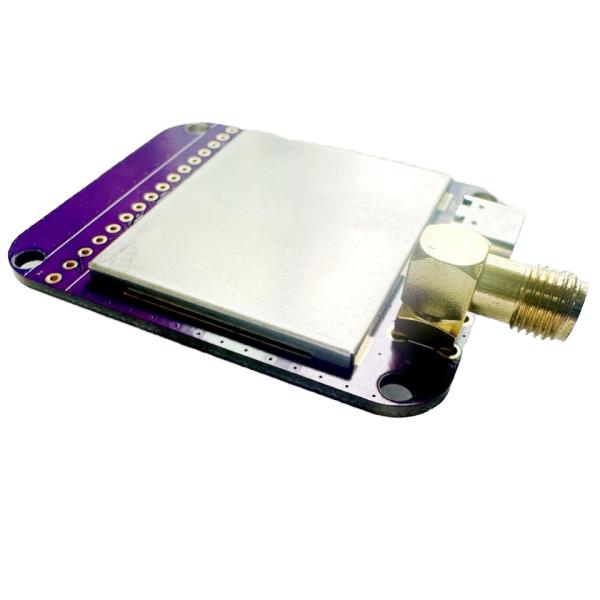

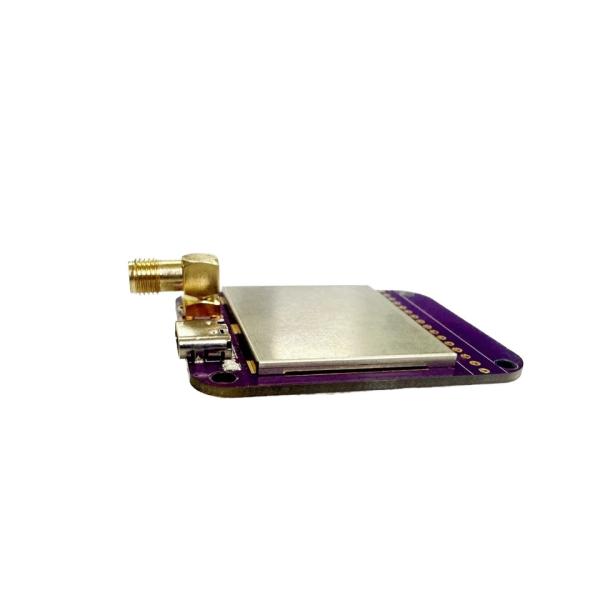

Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Specifications
Place of Origin :
China
Model Number :
WT-B50-DF
MOQ :
1
Price :
$70.42-84.51
Type :
GPS Module Development board
Country of Origin :
CHINA
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS+QZSS+SBAS
Baud rate :
4800bps-921600bps,Default38400bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-20Hz(default 1Hz)
Voltage :
3.6V~6.0V(typical 5V)
Power consumption :
80 mA @5V
Size :
50.4mm *40.8mm * 13mm
Description
High-Precision Dual-Frequency GPS Module 2.5cm GNSS/GPS Receiver Evaluation Board with SM a USB Drone Development RTK GPS Base
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Application:
● Research and development, traffic GPS timing system
● Communication GPS timing system, financial synchronous clock system
● Power synchronous clock system, airport synchronous clock system
● Gymnasium GPS synchronous clock system
● Hospital GPS synchronous clock system, differential base station timing, etc
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Features:
● Multi-band access to all four satellite constellations enhances receiver delivery.
● The timing error is reduced to less than 5 nanoseconds under clear sky conditions.
● Ultra-high precision, can achieve centimeter-level positioning.
● Advanced security features such as boot, security interface and T-RAIM provide the highest level of timing integrity.
● All GNSS bands and dual surface acoustic wave filters have excellent signal selectivity and out-of-band attenuation.
● Small size, low power consumption.
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board

Specification:
Module performance
Model
WT-B50-DF
Receiver type
GPS: L1C/A L2C
GLONASS: L1OF L2OF
Galileo: E1-B/C E5b
BeiDou: B1I B2I
QZSS: L1C/A L2C
SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Algorithm
Integrated dual frequency RTK algorithm
Agreement
NMEA-0183
Support:VTG,GLL,TXT ublox binary and NMEA Command
Available baud rate
4800bps~921600bps(default 38400bps)
Channel
184
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dBm Hot start: -157dbm
Cold start
Average 24 seconds
Hot start
Average 2 seconds
Accuracy
0.01 m + 1 ppm CEP
Max Height
50000m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration
1Hz -20 Hz(default 1Hz)
RAWX
support multi-GNSS raw measurenmet data output

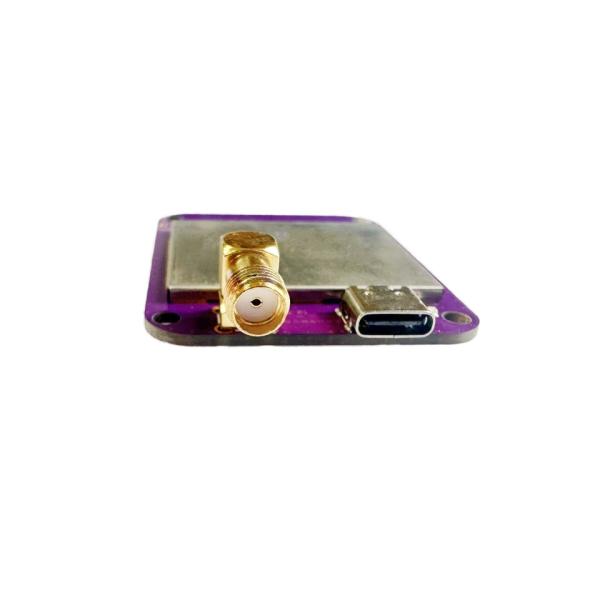

Port
1 PCS SMA, 1PCS USB
Size
50.4mm *40.8mm * 13mm (+/- 0.5mm)
Voltage
3.6V~6.0V(typical 5V)
Power Consume
80 mA @5V
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 105℃
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Company Profile
Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company integrating the R & D, production, sales and service of wireless positioning communication products, semi-finished products, finished products and supporting terminals. it has many international well-known enterprises in-depth cooperation resources and a number of elite and senior R & D and design teams.
We always take customer demand as the original strategy, providing wireless and portable high-end consumer electronics solutions, specializing in navigation, positioning, tracking, timing, communications, wireless connections and other professional products, semi-finished products and products, mainly centimeter-level positioning terminals, wearable children's smartwatches, pet track.
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Logistics & Payment
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
Dual Frequency GPS Module 2.5cm GNSS Receiver Evaluation Board
FAQ
Q1: Are you a manufacturer? Where is your factory? A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory. Q2: If i place an order how long will it take to delivery it? A2: IT usually takes about only 7-10days on receipt of payment,depends on the quantity ordered and the stock status. Q3: Are the prices on the list final? A3: No, the price is negotiable. It depends on the quantity of your order. Q4: When can I get the price? A4: Usually we quote within 24 hours of receiving an inquiry. If you urgently need to get a price, please call us so that we can let me quote you as soon as possible. Q5: Can I ask for a sample before placing an order? A5: Yes, we are welcome to order samples to test and check the quality. Mixed samples are acceptable. Q6: Can it be customized? A6: Yes. We support custom requirements. Q7: How can you make our business build a long term good relationship? A7: 1. We maintain good quality and competitive price to ensure that our customers benefit; 2. We respect every customer as our friend and sincerely conduct business and make friends with you, wherever you come. If you would like to know more about our company, please contact us immediately.
