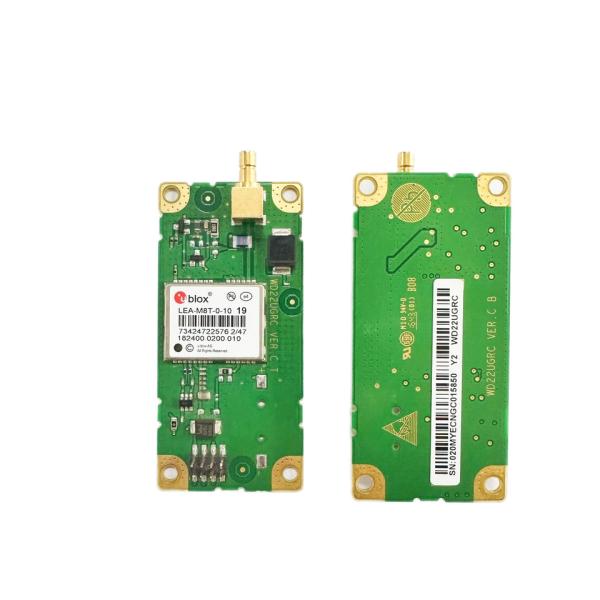

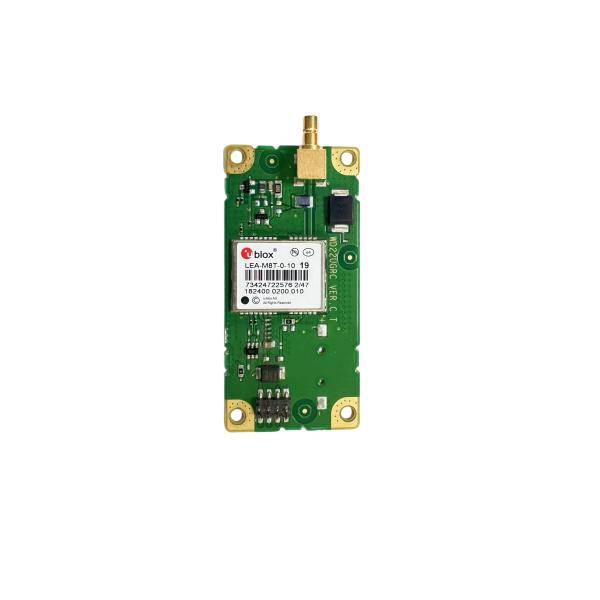

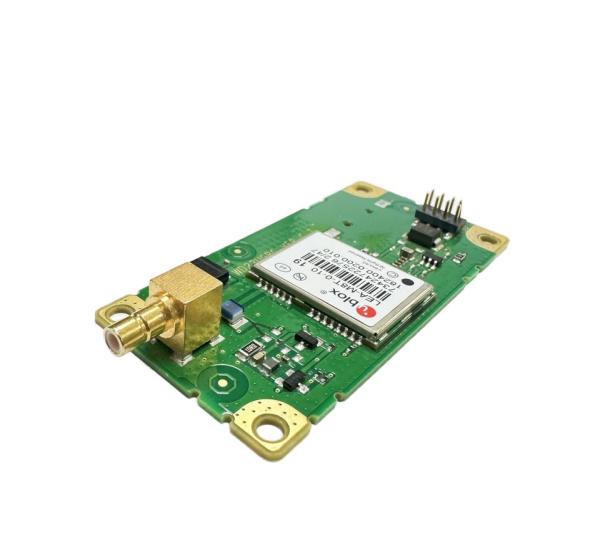

NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
NMEA-0183 Dual Core GNSS Development Board with UART USB DDC
Specifications
Brand Name :
OTW
Model Number :
LEA-M8T
MOQ :
1
Price :
40.28 - 42.36usd per piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000 pcs/day
Delivery Time :
5-8 working days
Description

Development Board with UART USB and DDC Interfaces 2.5m Horizontal Accuracy 20ns Timing Accuracy dual-core development b

Application:

● Smart Agriculture ● Research and development, traffic GPS timing system ● Communication GPS timing system, financial synchronous clock system ● Power synchronous clock system, airport synchronous clock system ● Gymnasium GPS synchronous clock system ● Hospital GPS synchronous clock system, differential base station timing, etc
Specification:
Module performance
Model
LEA-M8T
Frequency
GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1/SBAS L1
Agreement
NMEA-0183 or Customized
Available baud rate
4800bps~921600bps (default 9600bps)
Channel
72
Sensitivity
Tracking and Navigation:-167 dBm -166dBm Cold Start:-157 dBm Autonomous:148 dBm Recapture:-160 dBm
Cold start
Average 25 seconds
Hot start
Average 2 seconds
Horizontal accuracy
2.5m
Timing accuracy: RMS 20 ns
Max Height
18000m
Max Speed
515 m/s
Max Acceleration
≦ 4G
Update Frequency
1-4Hz
Positioning method
A-GNSS
connector
UART,USB,DDC,SPI
Module Type
28PIN LCC package
Size
31.7mm*67.1mm*9.7mm (+/-0.5mm)
Voltage
3.3V~5V
Power Consume
100 mA
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
Our services
OEM and ODM
Warranty:
Replace or repair for 1 year, provide technical service at any time;
Acceptance of delivery terms:
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES;
Payment currency accepted:
Us dollar, Euro, Japanese Yen, Canadian dollar, Australian dollar,Hong Kong Dollar, British Pound, RMB, Swiss Franc.

Tag:

RTK GNSS Receiver Board,

gnss oem board,

High Precision gps receiver board
