Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Geomagnetic 5883P RTK Development Board High Precision Module
Specifications
Brand Name :
OTW
Model Number :
WT-62-RK (5883P)
Certification :
CE/ISO
Place of Origin :
China
MOQ :
xx
Price :
xx
Payment Terms :
D/P
Delivery Time :
2-3 days
Packaging Details :
LCC
Description

Affordable RTK high-precision module, combined with the geomagnetic 5883p development board

Module performance

Chip

BG11XX

Receiver type

BDS:B1I/B1C & B2a

GPS/QZSS:L1C/A & L5

GLONASS:L1

Galileo:E1 & E5a

Arithmetic

Integrate RTK algorithm

Agreement

NMEA-0183 or custom

GALILEO L1 open service (with upgrade) Default:GGA,GSA,GSV,RMC

Support:VTG,GLL,TXT ublox binary and NMEA Command

NMEA messages

RMC,VTG,GGA,GSA,GSV,GLL

Available baud rate

4800bps~921600bps(default 115200bps)

Channel

128

Sensitivity

Tracking:-167dBm Capture:-158dBm Cold start-148dBm

Cold start

Average28秒

Hot start

Average1秒

Accuracy

Level 1cm+1ppm CEP50；Elevation 2cm+1ppm CEP50

Timepulse signal: RMS 30 ns

Max Height

18000m

Max Speed

515 m/s

Max Acceleration

≦ 4G

Regeneration

0.25-10 Hz

Positioning mode

A-GNSS,double frequency RTK

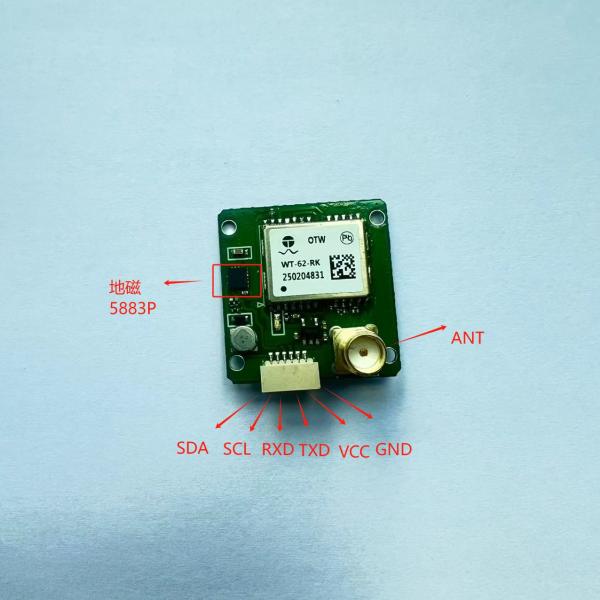

Compass

5883P

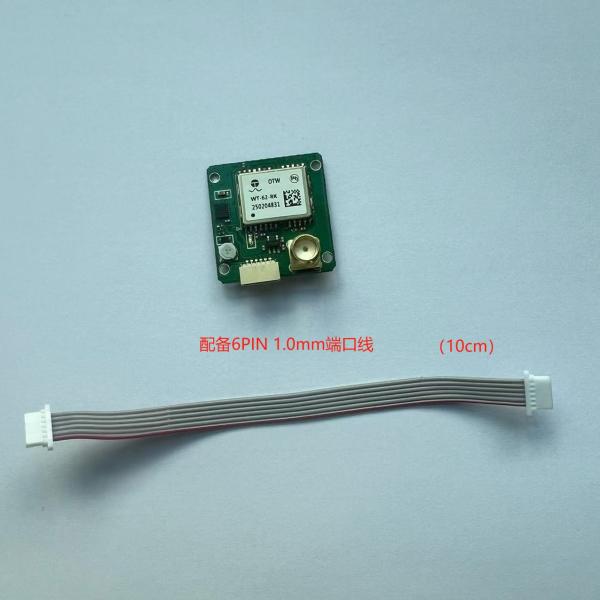

Connector

Connector

6PIN 1.0mm JST

Physical property

Type

24PIN LCC package

Power supply

Voltage

1.8V~3.3V

Power Consume

operational mode:103mW@1.8V,

standby mode:＜20μW

energy-saving mode: search:38mA, trace: 29mA

power saving mode: ＜10mA

Oerating Environment

Humidity range

5% to 95% non-condensing

Working Temperature

-40℃ to 85℃

Storage Temperature

-40℃ to 85℃
