OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
OTW UBLOX GPS Development Board with 1cm Accuracy
Specifications
Place of Origin :
Guangdong, China
Model Number :
ZED-F9P-04B-01
MOQ :
1
Price :
$83.26-88.26
Type :
GPS Module Development board
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
UBLOX
Application :
Positioning, surveying and mapping, etc
Dimensions :
30.5mm * 30.2mm * 4.2mm
Positioning Accuracy :
1cm
Operating mode :
GPS+GLONASS+GALILEO+ BDS+QZSS+SBAS
Output Mode :
UART+TTL
Baud rate :
4800bps-921600bps,Default38400bps
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-20Hz(default 1Hz)
Voltage :
3.6V~6.0V(typical 5V)
Power consumption :
80 mA @5V
Size :
30.5mm * 30.2mm * 4.2mm
Connect :
6Pin 1.0Jst
Description

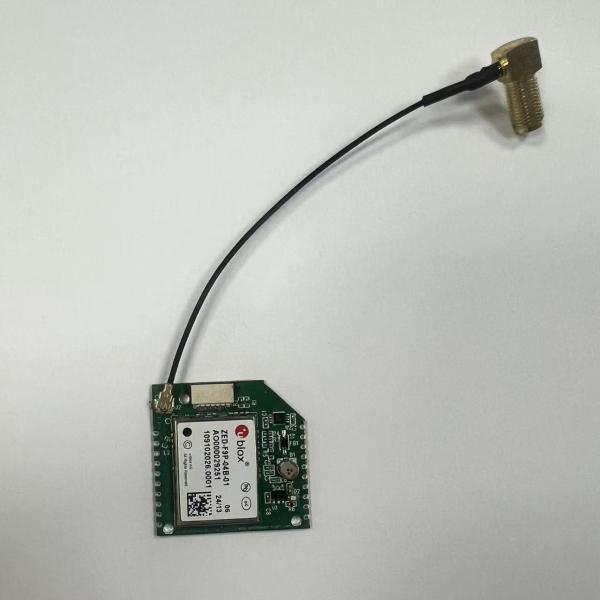

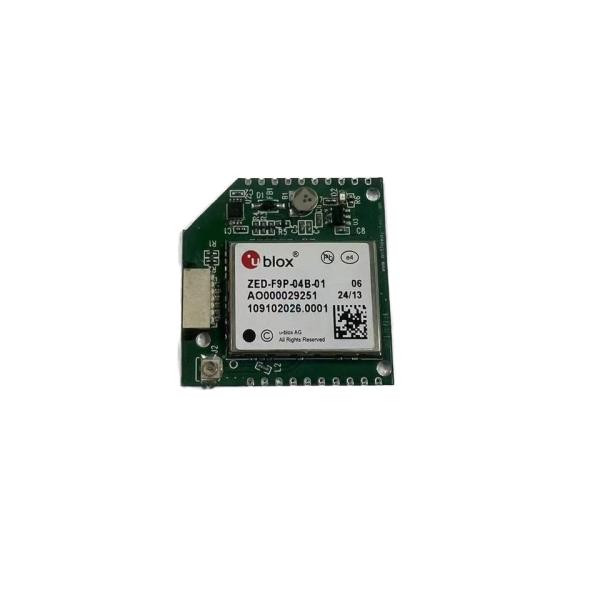

ZED-F9P-04B-01Small Development Board,Smaller Size, Higher Integration
OTW UBLOX GPS Development Board with 1cm Accuracy
Module performance
Model
ZED-F9P-04B-01
Receiver type
GPS: L1C/A L2C
GLONASS: L1OF L2OF
Galileo: E1-B/C E5b
BeiDou: B1I B2I
QZSS: L1C/A L2C
SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Algorithm
Integrated RTK algorithm
Agreement
NMEA-0183
Support:VTG,GLL,TXT ublox binary and NMEA Command
Available baud rate
4800bps~921600bps(default 38400bps)
Channel
184
Sensitivity
Tracking: -167dbm Capture: -160dbm Cold start -148dBm Hot start: -157dbm
Cold start
Average 24 seconds
Hot start
Average 2 seconds
Accuracy
0.01 m + 1 ppm CEP
Max Height
50000m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration
1Hz -20 Hz(default 1Hz)
RAWX
support multi-GNSS raw measurenmet data output

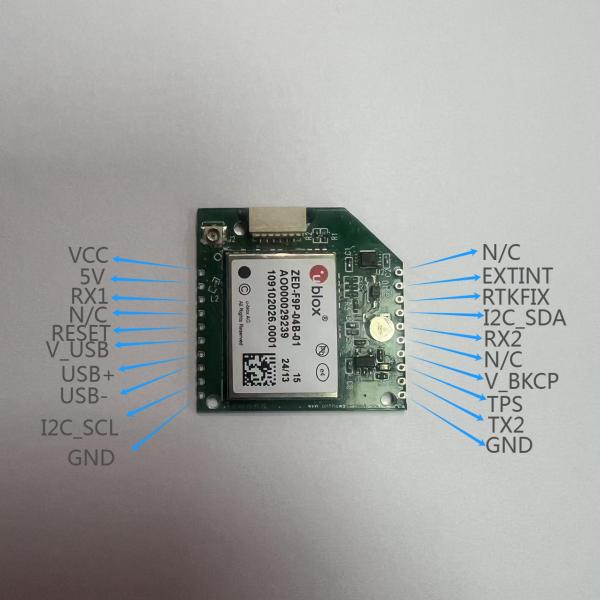

Port
6PIN 1.0MM JST
Size
30.5mm * 30.2 * 4.3mm (+/- 0.5mm)
Voltage
3.6V~6.0V(typical 5V)
Power Consume
80 mA @5V
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 105℃
