OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
OTW Micro GPS Tracker Module UART TTL Output GNSS
Specifications
Place of Origin :
China
Model Number :
WT-62-UNL
Price :
CN¥37.81/pieces 1-499 pieces
Type :
GNSS Module
Country of Origin :
Shenzhen Guangdong, China
Brand :
OTW
Chipset :
XX
Application :
Positioning, surveying and mapping, etc
Operating mode :
GPS+GLONASS+GALILEO+ BDS
Output Mode :
UART+TTL
Baud rate :
4800bps-921600bps,Default9600bps
NMEA sentences :
RMC,VTG,GGA,GSA,GSV,GLL
Update frequency :
1Hz-18Hz(default 1Hz)
Voltage :
1.65V to 3.6V
Power consumption :
21 mA , @3.0V
Size :
12.2mm*16mm*2.4mm
Description

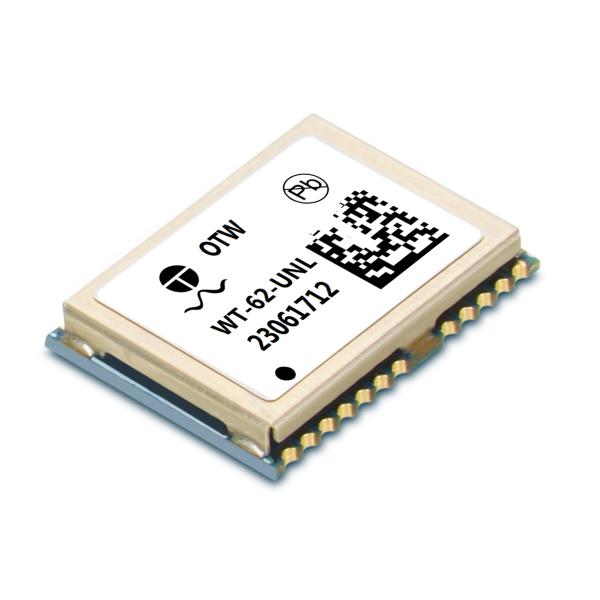

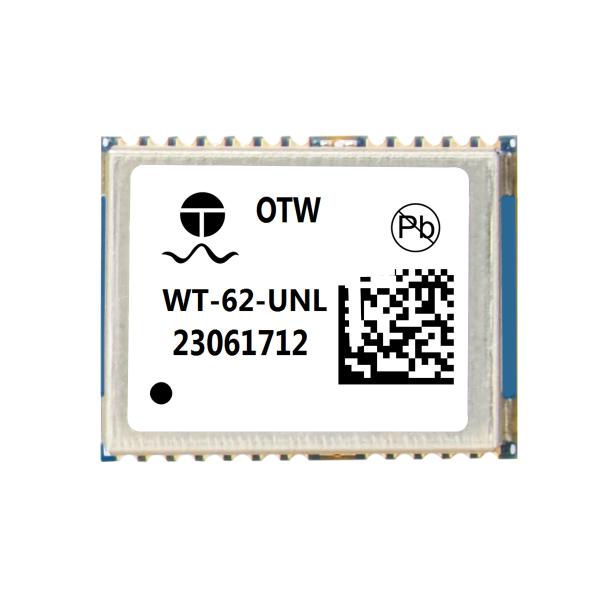

WT-62-UNL Micro GPS Tracker Module with UART+TTL Output
OTW Micro GPS Tracker Module UART TTL Output GNSS OTW Micro GPS Tracker Module UART TTL Output GNSS OTW Micro GPS Tracker Module UART TTL Output GNSS
Product Overview

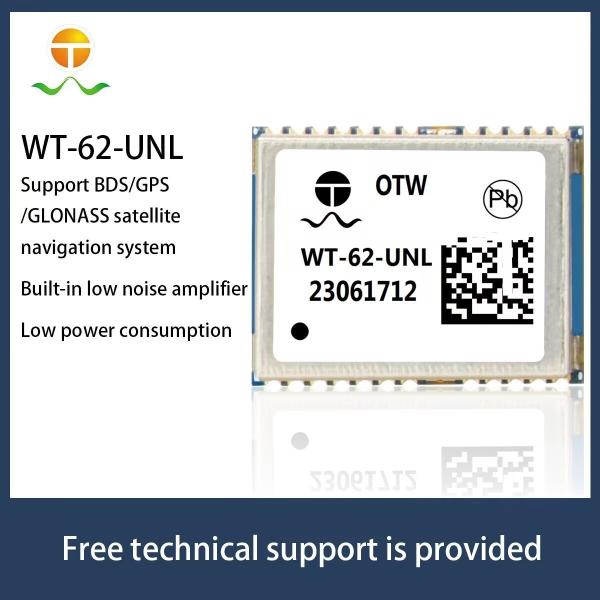

Compact GNSS module with multi-constellation support, designed for precise vehicle tracking and positioning applications. Features UART+TTL output and low power consumption.

Key Specifications
Attribute Value
Type GNSS Module
Brand OTW
Operating Mode GPS+GLONASS+GALILEO+BDS
Output Mode UART+TTL
Baud Rate 4800bps-921600bps (Default 9600bps)
Voltage 1.65V to 3.6V
Dimensions 12.2mm × 16mm × 2.4mm
Technical Performance
Receiver Type GPS/QZSS:L1C/A, Galileo:E1-B/C, GLONASS:L1OF, BeiDou:B1
Protocol NMEA-0183 compliant or custom
Sensitivity Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
Start Time Cold start: 26s (avg), Hot start: 1s (avg)
Position Accuracy Horizontal: <2.0m (SBAS enabled)
Update Rate 1Hz-18Hz (default 1Hz)
Physical Characteristics

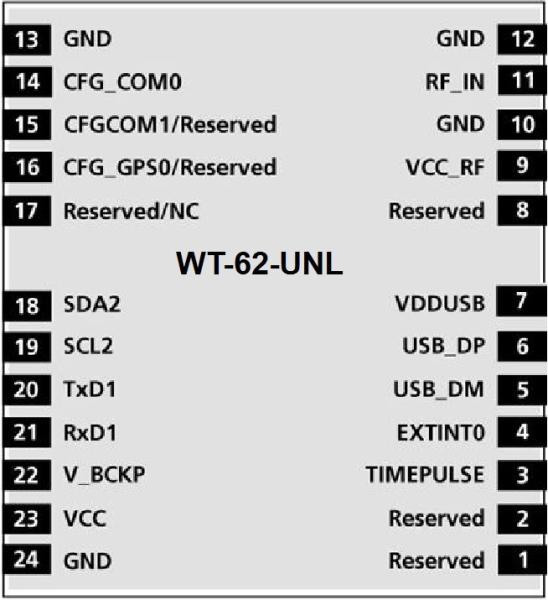

Interface 24-pin stamp holes

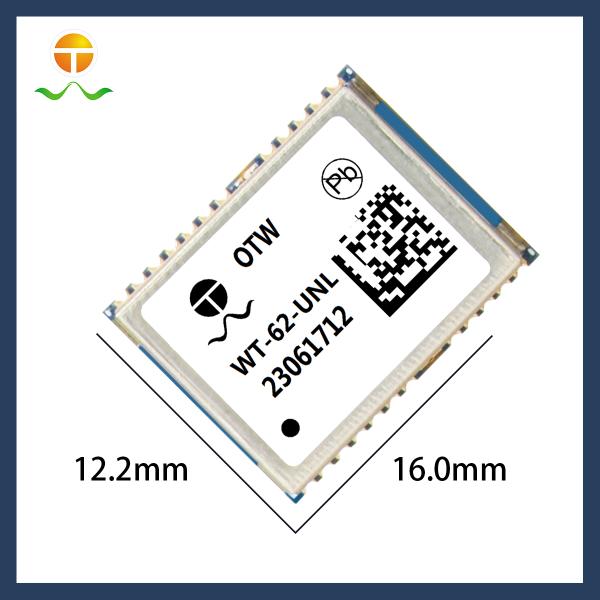

Dimensions 16.0mm × 12.2mm × 2.4mm (±0.5mm)
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Power Specifications
  • Operating Voltage: 1.65V-3.6V
  • Power Consumption: 21mA @3.0V (operation mode)
  • Power Saving Mode: 5.3mA @3.0V (PSM, 1Hz)
OTW Micro GPS Tracker Module UART TTL Output GNSS OTW Micro GPS Tracker Module UART TTL Output GNSS OTW Micro GPS Tracker Module UART TTL Output GNSS
Applications

Ideal for vehicle tracking systems, surveying equipment, precision agriculture, fleet management, and other positioning applications requiring multi-constellation GNSS support.
