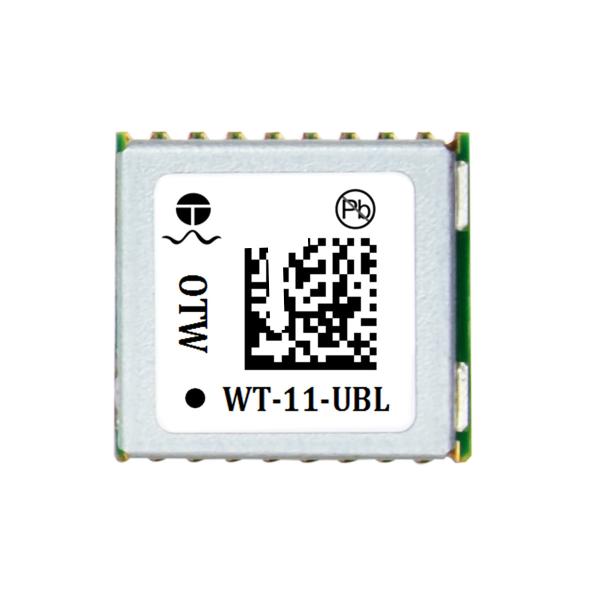

OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V
OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V
Specifications
Brand Name :
OTW
Model Number :
WT-11-UBL
Place of Origin :
China
MOQ :
10pcs
Price :
US $2.4 - 11.80/
Payment Terms :
T/T,Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Type :
GNSS Module
Brand :
OTW
Operating mode :
GPS+GLONASS+ BDS
Output Mode :
TTL
NMEA messages :
RMC,VTG,GGA,GSA,GSV,GLL
Voltage :
1.65V to 3.6V
Power consumption :
Running Mode 16.5mA @3.0V
Size :
9.7mm*10.1mm*2.4mm
Description

Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module

Product descriptions from the supplier

Overview

OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V
Application:
●Car navigation, traffic recorder
●Drones, law enforcement cameras
●Hd camera, surveying and mapping
●Handheld device
●Smart wear
●Smart agriculture
OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V
Features:
●Supports GPS/QZSS,GLONASS
●Combines low power consumption and high sensitivity
●Strong anti-interference ability
● Low cost, ultra-small size
●Built-in low noise amplifier LNA and filter SAW
OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V

Bottom view
Module pin allocation
OTW GNSS Tracker Module GPS GLONASS BDS 1.65V-3.6V
Module performance
Model WT-11-UBL
Receiver type

GPS/QZSS L1 C/A
GLONASS L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -161dbm Hot start: -148dbm Cold start -148dBm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 0.25Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI
Physical property
Type 18 pin stamp holes
Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 1.65V~3.6V
Power Consume

Operation mode: 16.5mA@3V, power saving mode: 4.5mA@3V
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
