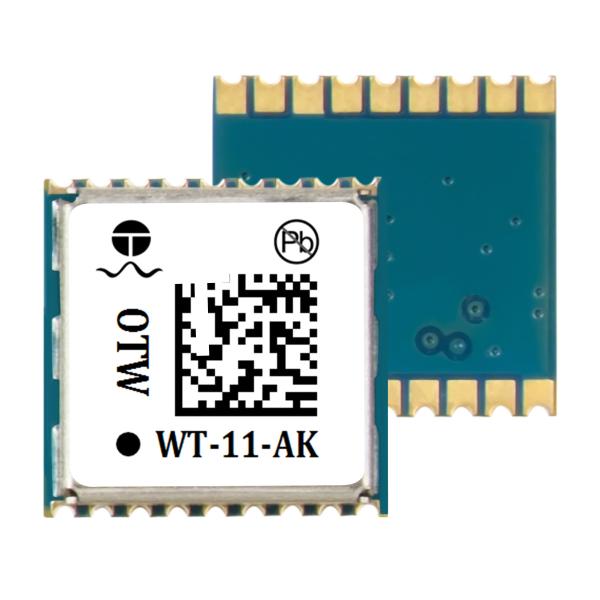

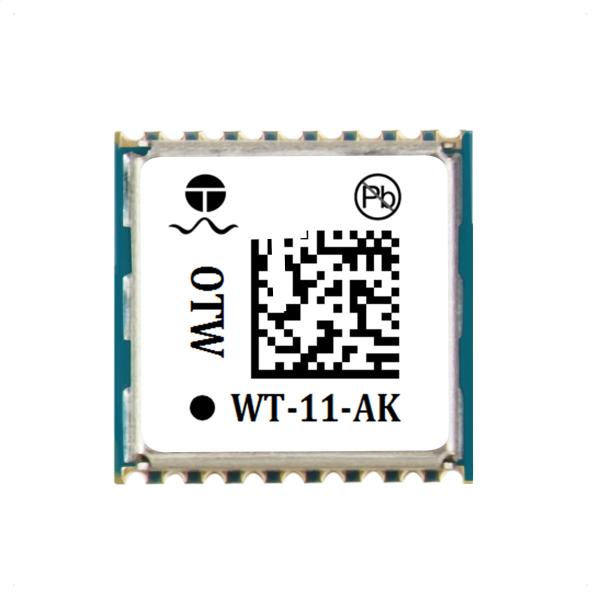

32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
Specifications
Brand Name :
OTW
Model Number :
WT-11-AK
Place of Origin :
China
MOQ :
10pcs
Price :
US $2.4 - 11.80/
Payment Terms :
T/T, Western Union
Supply Ability :
Above US$100 Million
Delivery Time :
7-10working days after receiving the payment
Type :
GNSS Module
Brand :
OTW
Operating mode :
GPS+GLONASS+ BDS
Output Mode :
UART+TTL+R232
Baud rate :
4800bps-921600bps,Default9600bps
Update frequency :
0.25Hz-10Hz(default 1Hz)
Power consumption :
25 mA @3.3V
Size :
9.7mm*10.1mm*2.4mm
Description

Vehicle Precision Tracker 32 Channel Gps Module High Precision And High Sensitivity

Product descriptions from the supplier

Overview

32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
Application:
●On-board and ship-borne positioning and navigation
●Timing
●Wearable devices
●Portable equipment
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
Features:
●Supports BDS/GPS/GLONASS multi-system joint positioning and single-system independent positioning.
●Provides active antenna detection and protection
●Power Management
Solution 1: DCDC is used to supply the core LDO, supporting 2.7~3.6V single power supply, typical 3.3V power supply.
Solution 2: Support 1.8V to 3.3V direct power supply.
●RTC and backup circuit power supplies as low as 1.4V.
●Small size, overall size :10.1mm*9.7mm*2.5mm
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
Bottom view
Module pin allocation
32 Channel GNSS GPS Module with UART TTL R232 for Vehicle Tracking
Module performance
Model WT-11-AK
Receiver type

BDS:B1I+B1C
GPS/QZSS:L1C/A
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 32
Sensitivity Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI
Physical property
Type 18PIN LCC package
Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 3.6V~5.5V
Power Consume

Running mode: 25mA@3.3V, standby mode: 8mA (@3.3V)
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
