CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
Specifications
Brand Name :
RDC
Certification :
CCC
Place of Origin :
China
MOQ :
1 set
Price :
USD $6619/sets 1-9 sets
Payment Terms :
D/A,D/P,T/T
horsepower :
2900r/min
power source :
Diesel Engine
structure :
Multistage Pump
voltage :
Custom
Flow Rate :
2000GPM
Engine Type :
Diesel Engine
Voltage :
220V/380V/415V/440V,380V,220V/380V
Description

CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump


Product Conformity
The performance of the double suction pump has been fully optimized to meet the four key requirements of the American Fire Protection Standards FM/UL.

1) The performance meets the requirements of rated flow and rated pressure.
2) The outlet pressure at zero flow does not exceed 140% of the rated pressure.
3) At a suction depth of 4.6 meters, when the flow is 150% of the rated flow, the outlet pressure should not be less than 65% of the rated pressure.
4) The performance curve includes a maximum shaft power value, and the driving power provided exceeds this maximum shaft power value.

Materials conform to standard
1) pump case and pump cover: Ductile Iron
2) Impeller: Brass/ SS304
3) Wear ring: Brass/ SS304
4) Sealing: Gland packing/ Mechanical Seal

APPLICATION
1) They are used to supply high-pressure water to hoses for extinguishing fires, and can also serve as standby fire pumps in fire water systems.
2) They are used in urban water supply systems, water plants, and for supplying water to air-conditioning systems.
3) They are used in various industrial processes, including cooling water supply, sewage systems, petrochemical industries, and paper mills.


CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump

CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire PumpCCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump

CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
CCC/UL/FM2000gpm Fire Fighting System Electric Motor Driven Diesel Fire Pump
Product Paramenters
Control Method
Frequency Control
Ambient temperature
+5℃~ +40℃
Maximum operating pressure
(suction pressure + pump shutdown dead center)
20kg/CM
Minimum suction pressure
0.2 kg/CM
Allowable suction pressure
Subject to maximum operating pressure
Power supply
Three-phase X 220/ 380V X 50Hz

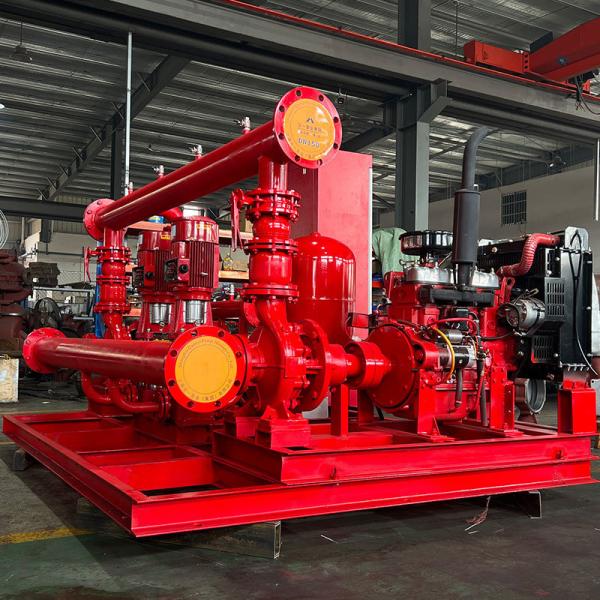

Factory Tour
