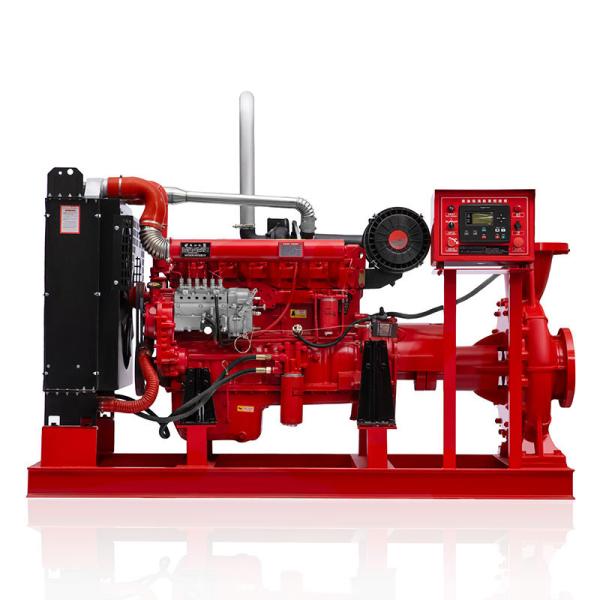

Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
Specifications
Brand Name :
READYCOME
Certification :
CCC
MOQ :
1 sets
Price :
USD 7999 sets
place of origin :
China
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
motor, PLC
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Certificate :
UL/FM/CCC
Description

Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply


Max.Capacity >400 L/min
Driving Type Diesel Engine &Electric Motor
Impeller Number Single-Stage Pump
Working Pressure High Pressure Pump
Influent Type of Impeller Single Suction Pump
Position of Pump Shaft Horizontal Pump
Pump Casing Combined Horizontal End Suction Pumps
Mounting Height Suction Centrifugal
Impeller Closed
Usage Pump, Pumps, Fire Fighting
Voltage 220V/380V/400V/415V/440V
Frequency 50Hz/60Hz
Standard UL, FM, Nfpa20, CE, ISO
Casing Material Ductile Iron
Seal Packing Seal
Impeller Material Bronze
Working Temperature Normal
Color Red

1. Product Description

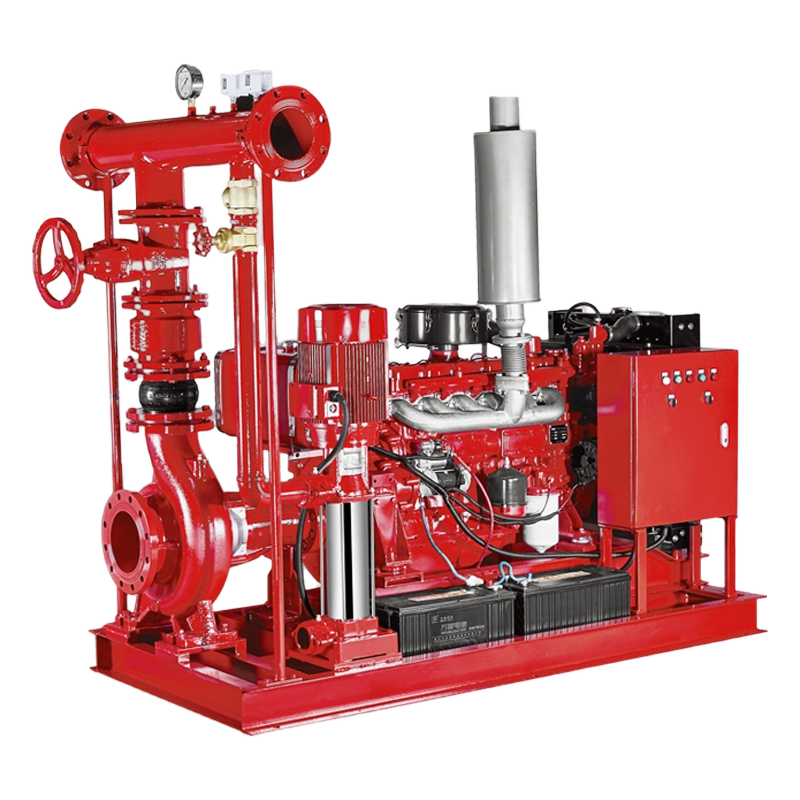

EDJ series is a packaged fire pump set, generally an automatic fire water supply system It consists of a main pump (driven by an electrical motor), stand by pump (driven by diesel engine) and a jockey pump. This model comes equipped with a separate controller, or one that is attached to the skid, The package also contains discharge valves, common header, and accessories.

2. Working Principle

Generally the pipeline network's pressure is between the low pressure P1 and the high pressure P2. When the above pressure is lower than P1, the pressure maintaining pump will start automatically and not stop until the pressure rises gradually to P2. Due to the pipeline network's leakage, its pressure will drop to P1 gradually, and then the pressure maintaining pump will start automatically again. with such a repeated process, the pipeline network's pressure is maintained between P1 and P2 all the time. when the pipeline network's pressure can't be maintained between P1 and P2 (for instance, when the water consumption increases a lot) and drops to the minimum pressure P3, the electric pump will start automatically and the pressure will rise to Pw and meet the need for fire water supply, if the mains supply is power-off or the electric pump fails, the pressure will continue to drop from P3 to the ultimate pressure P4. then the diesel pump set will start automatically, and the pressure will rise to Pw and meet the need for fire water supply. the electric or diesel pump shall be stopped manually after human judgment (except automatic switching ).


Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply


Diesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water SupplyDiesel Engine Fire Pump Set Designed to Provide Fire Fighting Water Supply
