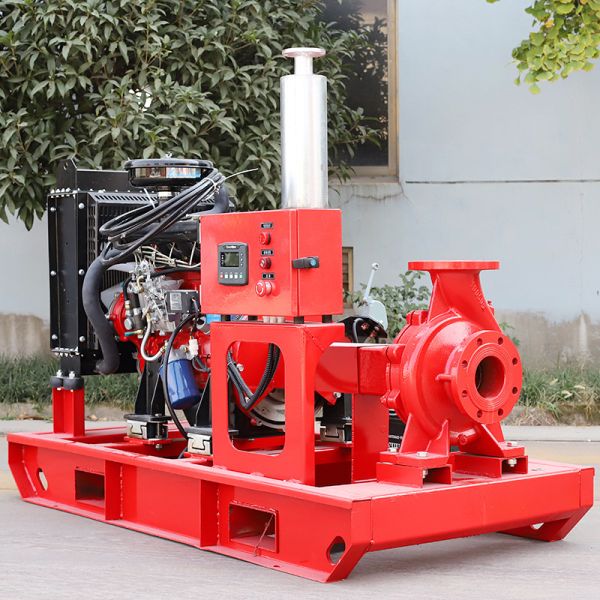

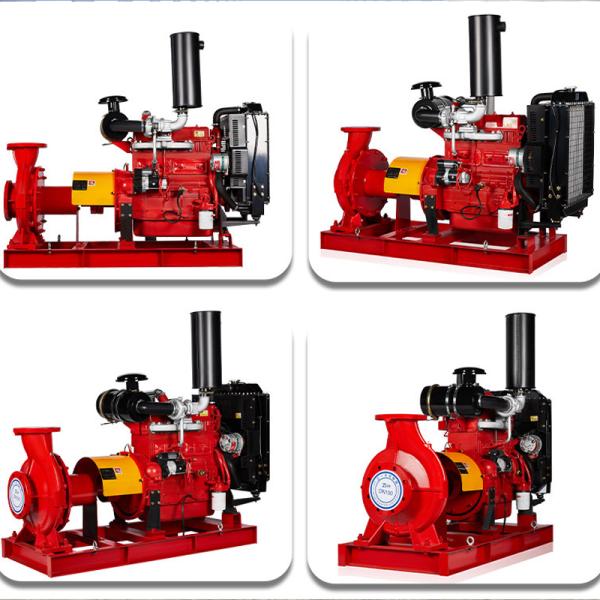

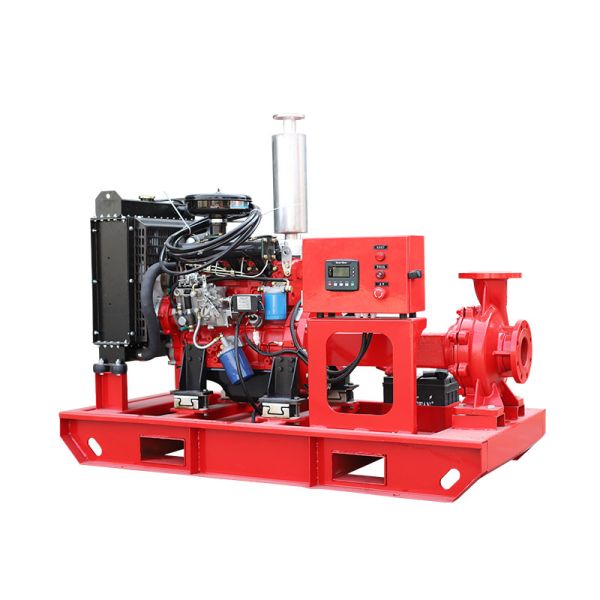

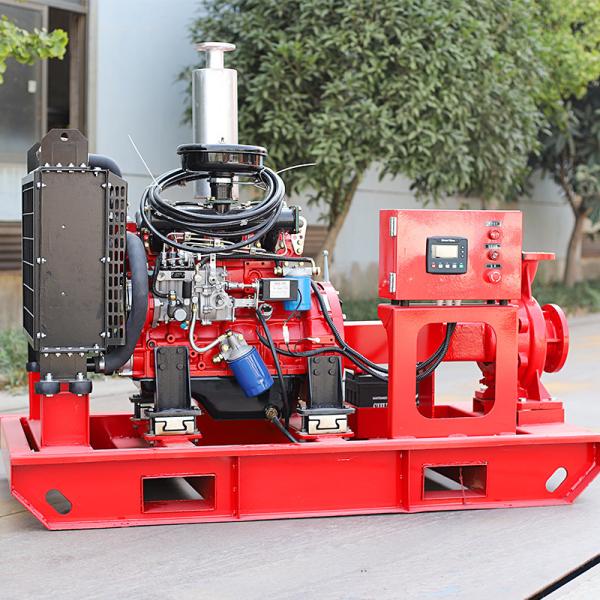

Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Heavy Duty Diesel Engine Fire Pump Set Fire Suppression
Specifications
Brand Name :
READYCOME
Certification :
CCC
Place of Origin :
China
MOQ :
1 sets
Price :
USD 7999 sets
Origin :
China
Marketing Type :
Ordinary Product
Warranty :
1 Year
Usage :
Fire pump diesel engine,for fire pump
Application :
Fire,Submersible,irrigation
Impeller :
Cast iron
Description

Heavy Duty Diesel Engine Fire Pump Set Fire Suppression

Name Diesel Engine Electric Driven Fire Fighting Pump Set
Driving Type Diesel Engine &Electric Motor
Pump Casing Combined Horizontal End Suction Pumps
Mounting Height Suction Centrifugal
Usage Pump, Pumps, Fire Fighting
Voltage 220V/380V/400V/415V/440V/Custom
Frequency 50Hz/60Hz
Standard UL, FM, Nfpa20, CE, ISO,CCC
Casing Material Ductile Iron
Color Dark red

Product Overview

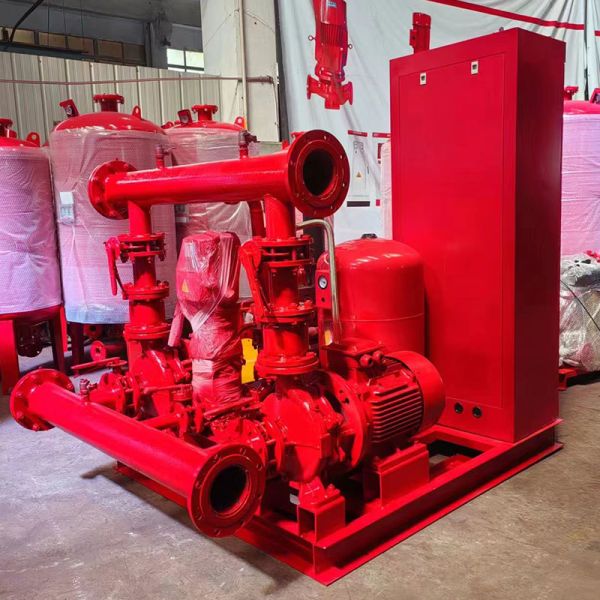

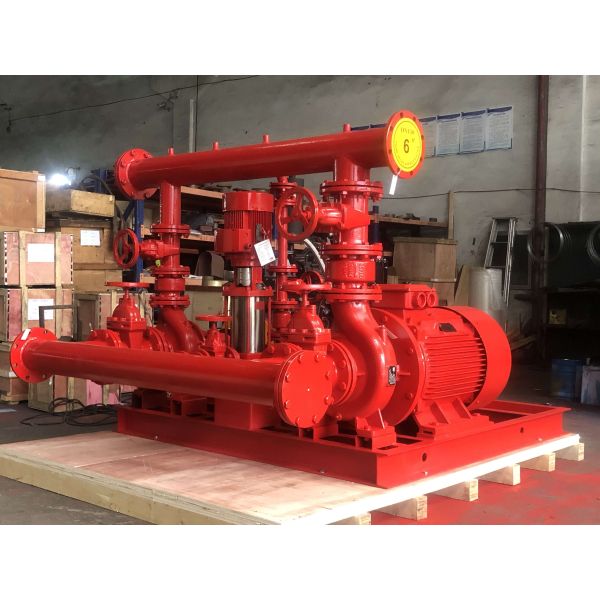

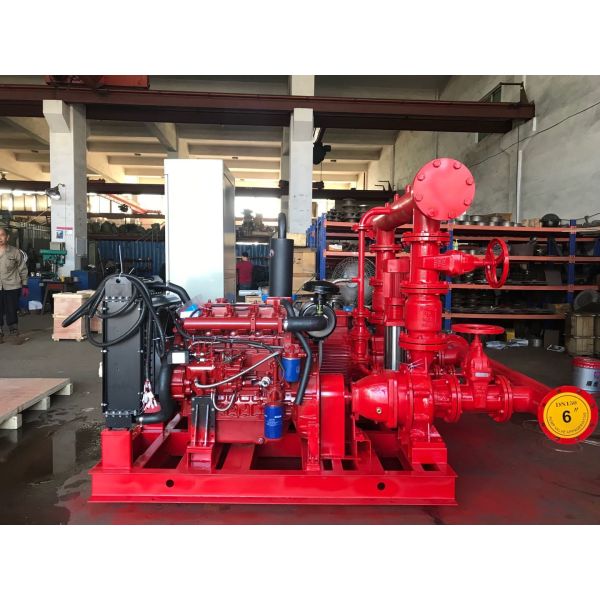

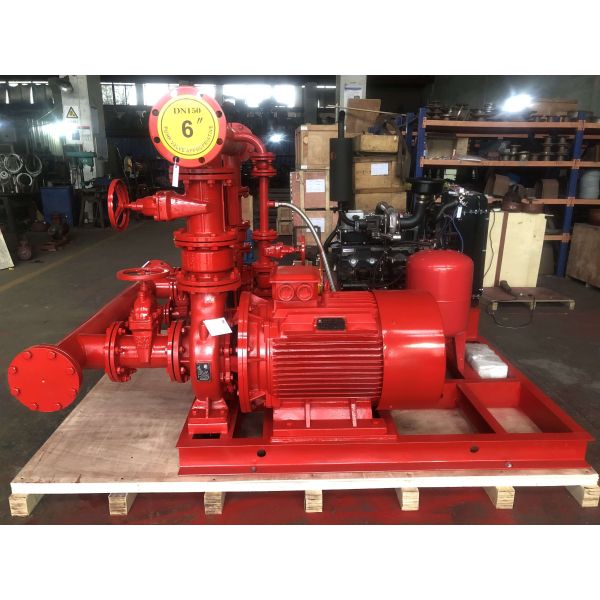

The EDJ series is a complete set of fire pump units, typically forming an automatic fire water supply system. This system comprises the following core components:

  • Main pump: driven by an efficient electric motor
  • Standby pump: equipped with diesel engine drive
  • Pipeline pressure compensating pump: used to maintain the pressure of the pipeline network
  • control system

Two controller configuration schemes are provided:

  • A. Standalone controller
    • Flexible installation
    • Easy to maintain
  • B. Integrated controller
    • Installed on skid-mounted equipment
    • Small space occupation

Normal operating state

  • The pressure of the pipeline network is maintained between P1 (low pressure) and P2 (high pressure)
  • The pressure maintenance pump automatically starts and stops according to pressure changes

Response to power failure

  • In the event of a main power supply interruption or electric pump malfunction:
    • a) The pressure continues to decrease until reaching P4 (ultimate pressure)
    • b) Automatic start of diesel pump
    • c) The pressure rebounds to Pw
    • d) Restoration of fire water supply

Heavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire SuppressionHeavy Duty Diesel Engine Fire Pump Set Fire Suppression
