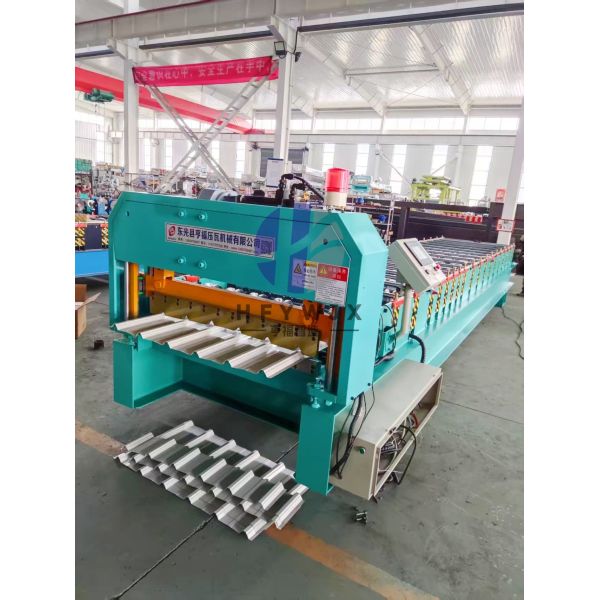

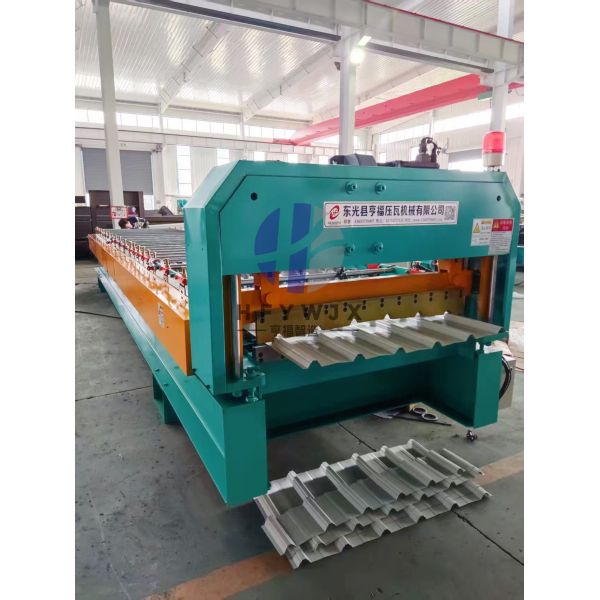

350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
950T roll forming machine
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Electric
Transmission Mode :
1 Inch Chain Drive
Transport Package :
Plastic Film & Steel Wire Fixed
Origin :
Dongguang, Cangzhou City
Production Capacity :
400sets/ Year
Tile Type :
Colored Steel
Condition :
New
Usage :
Roof
Model :
950 Roll Forming Machine
Electronic Control System :
PLC
Specification :
11000mmx1300mmx1400mm
HS Code :
8455221000
Description
Trapezoidal Roll Forming Machine – High Efficiency, Precise Profiling, Stable Output, and Long Service Life
This Customizable 950T Corrugated Trapezoidal Roof Tile Steel Forming Machine is a high-efficiency production system engineered for manufacturing durable trapezoidal roofing panels widely used in industrial and commercial buildings. It processes galvanized and color-coated steel sheets into strong, weather-resistant profiles with excellent load-bearing capacity and modern architectural appeal, making it ideal for large-scale construction projects.

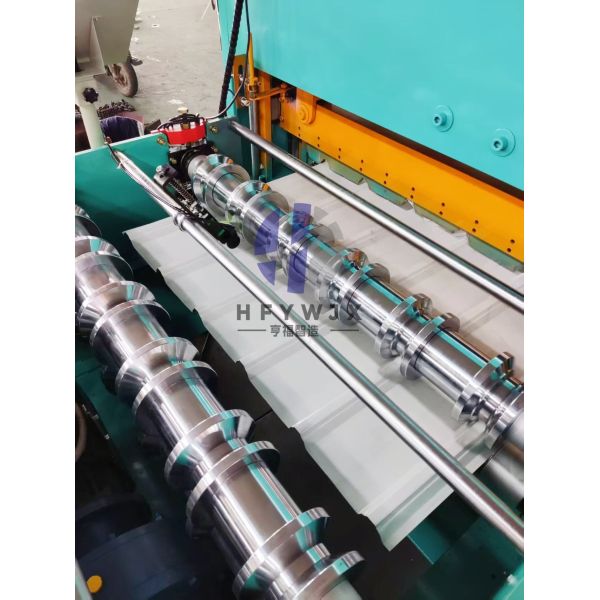

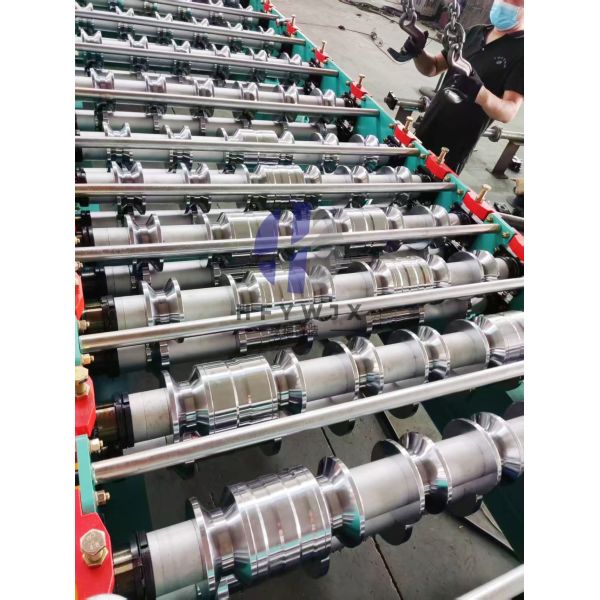

Built with a heavy-duty 350H steel frame and equipped with approximately 18 forming stations, the machine ensures outstanding structural stability and precise forming performance. The Φ70 mm solid shafts and high-quality roller materials provide consistent shaping accuracy, delivering panels with uniform geometry, smooth surfaces, and reliable mechanical strength.
The production line adopts a continuous cold roll forming process combined with a high-speed cutting system, enabling efficient and stable output. With forming speeds reaching up to 0-40 m/min, it significantly improves productivity while maintaining tight tolerance control. The servo cutting system ensures clean edges and accurate length, reducing material waste and enhancing overall production quality.
Equipped with an intelligent PLC control system, the machine allows flexible parameter adjustment, including length, batch quantity, and operating speed. Its user-friendly interface simplifies operation and supports customized profile designs, making it adaptable to various roofing specifications and market demands.
Dongguang Hengfu Roll Forming Machine Co., Ltd. is widely recognized for producing high-quality roll forming equipment with refined craftsmanship and dependable performance. Their machines are built using premium materials and advanced engineering techniques, ensuring long service life, stable operation, and high precision. With strong technical support and comprehensive after-sales service, Hengfu provides customers with professional and reliable solutions for modern metal forming production.
Technical Specifications
Model NO 950T roll forming machine
Condition New
Usage Roof
Feeding Width 1220mm
Machine Frame 350H steel frame
Forming Speed 0-40M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of rolling mill sets 18 row molding
Spindle diameter Φ70mm (Solid shaft)
Customized Customized
Feeding method Double hand rocking feeding rack (with pressure roller)
Specification 11000mm x 1300mm x 1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Product capacity 400 sets/year
Product Gallery
350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations 350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations 350H Steel Frame Trapezoidal Roll Forming Machine 0-40 M/Min Speed 18 Stations
Frequently Asked Questions
What are the available cutting methods?
Hydraulic Flying Shear or Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
