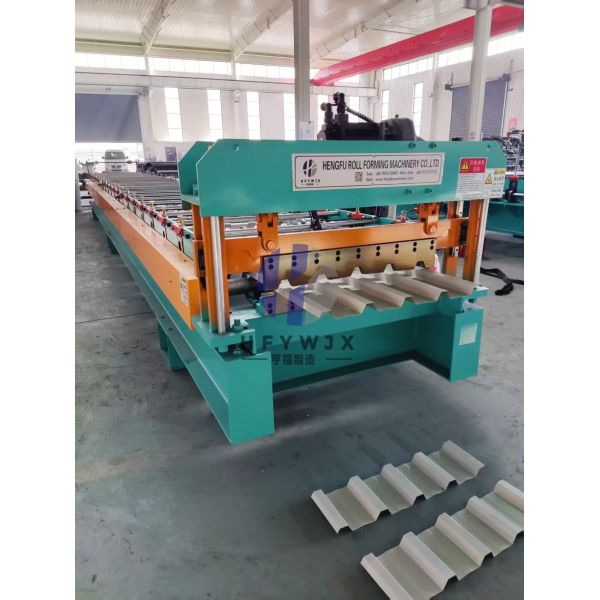

High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
Specifications
Model NO :
686 roll forming machine
Customized :
Customized
Transmission Mode :
1 Inch Chain Drive
Tile Type :
Colored Steel
Transport Package :
Plastic Film & Steel Wire Fixed
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Description
High-Efficiency PPGI 686 Trapezoidal IBR Roof Sheet Roll Forming Machine

This IBR 686 roof sheet roll forming machine is engineered for high-efficiency production of trapezoidal metal roofing sheets, specifically designed for the African market. Built with a robust 350H steel welded frame featuring 16mm thick wall plates, the machine ensures exceptional stability and long-term durability during continuous operation.

Featuring 23 forming stations and 80mm solid shafts crafted from high-quality 45# steel, the machine delivers precise forming performance and consistent sheet quality. The power system combines a 7.5kW servo motor with a reliable chain transmission, achieving production speeds up to 40 meters per minute.

The rollers, manufactured from 45# steel with precision machining and surface hardening, provide superior wear resistance and extended service life. The cutting system incorporates a servo-driven flying cutting device with patented linear guide rail design, enabling smooth, precise cutting without machine stoppage for maximum efficiency and minimal material waste.

Technical Specifications
Model NO. 686 Roll Forming Machine
Usage Roof, Wall, Floor
Speed 0-40m/Min
Main Motor 7.5kw
Voltage 380V/50Hz, 3p or Customized as Customer' Request
Roller Station 23 rows
Spindle diameter 80mm (solid shaft)
Transmission method Gear transmission
Cutting method Linear guide shear
Touch screen PLC
Origin Botou cangzhou hebei
Warranty 1 year
Key Features
  • Robust 350H steel welded frame with 16mm thick wall plates
  • 23 forming stations with 80mm solid shafts made from 45# steel
  • 7.5kW servo motor with chain transmission system
  • Production speed up to 40 meters per minute
  • Servo-driven flying cutting with linear guide rail design
  • Cr12 alloy steel cutting blades for superior hardness and durability
  • PLC control system with integrated touchscreen interface
  • Automatic length setting and precise counting capabilities
  • Ideal for galvanized steel and African roofing materials
High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control High-Efficiency 23 Forming Stations IBR 686 Roof Sheet Roll Forming Machine with 40m/min Speed and PLC Control
Frequently Asked Questions
Are you a trading company or a factory?
We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.
Do you have after-sales support?
Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Do you sell only standard machines?
No, most of our machines are built according to customers specifications, using top brand components.
What will you do if the machine is broken?
We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Can you finish the machine during the delivery time?
We will finish the machine in time according to determined lead time.
