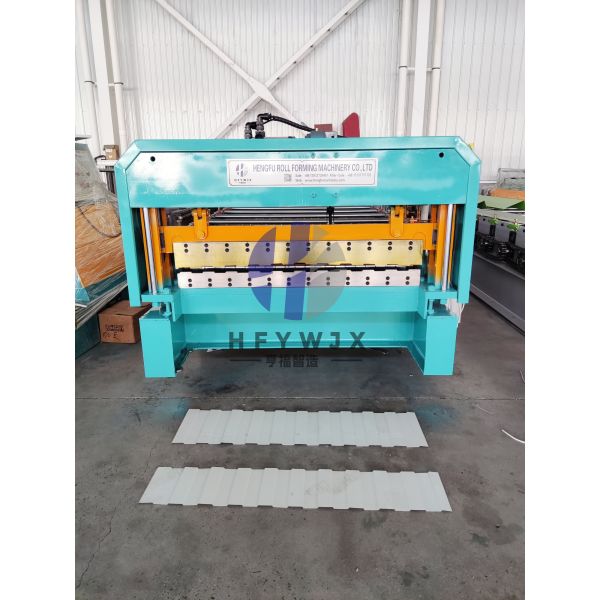

High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
High-Speed C8 Roll Forming Machine with PLC Control for 0.3-0.8mm Galvanized Steel Roof Sheets
Specifications
Model NO :
C8 roll forming machine
Usage :
Roof, Wall, Floor
Thickness :
0.3-0.8mm
Customized :
Customized
Control System :
PLC
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Description
C8 IBR Galvanized Color Steel Roofing Sheet Roll Forming Machine
Dongguang Hengfu Roll Forming Machine proudly introduces its high-performance C8 corrugating machine, designed to help customers achieve higher productivity, better product quality, and greater profitability. Backed by years of industry experience and continuous technological innovation, Hengfu has developed a solution that stands out in a highly competitive market.
One of its most outstanding features is the patented linear guide rail system, which ensures smoother and more precise cutting compared to traditional machines. This advanced design reduces mechanical wear, minimizes maintenance requirements, and significantly extends the service life of the equipment.
The machine is specifically designed for high-speed production while maintaining exceptional forming accuracy. It allows manufacturers to complete large-volume orders quickly, shorten delivery times, and improve customer satisfaction. The machine supports a wide range of materials, including galvanized steel, PPGI, and aluminum.
Technical Specifications
Category Item Specification
Material Raw Material PPGI or Galvanized steel
Thickness 0.3-0.8 mm
Product Material Width 1 m (can be customized)
Coils Weight 5T
Shaft OD 70mm
Machine Rolled Material 45 steel
Machine Frame 350H steel frame
Machine Size Approx. 11500mm x 1800mm x 1600mm
Machine Weight Approx. 6.5 ton
Machine Color As customer request
Power Working Speed 0-35 meter/min
Motor China brand
Main Power 7.5 KW Servo motor
Voltage 380v 50hz 3PH (or customized)
Control System Labour 1 person
Language Chinese, English or customized
Frequently Asked Questions
Can it be integrated into a complete color steel production line?
Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
How long is the warranty period?
The entire machine comes with a 12-month warranty, excluding wear parts.
