350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
1000-type trapezoidal roll forming machine
Certification :
SGS
Customized :
Customized
Tile Type :
Colored Steel
Condition :
New
Usage :
Roof
Transmission Mode :
1-Inch Chain Drive
Cutting Method :
Guide Post 4kw Oil Pump Shearing
Package Size :
650.00cm * 160.00cm * 170.00cm
Package Gross Weight :
7000.000kg
Description

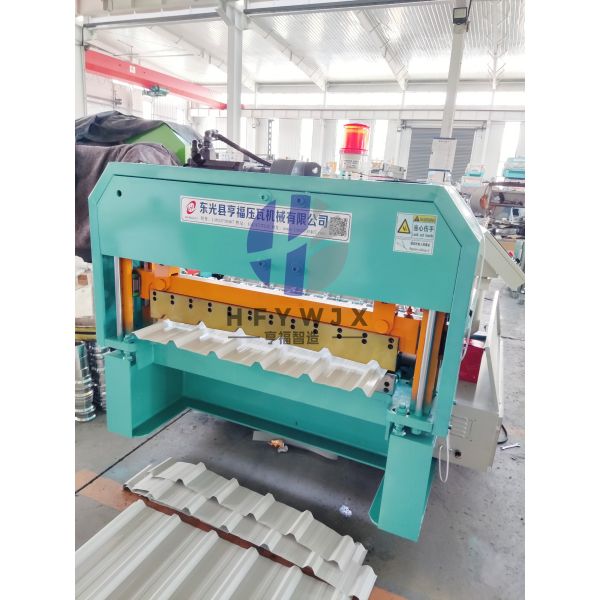

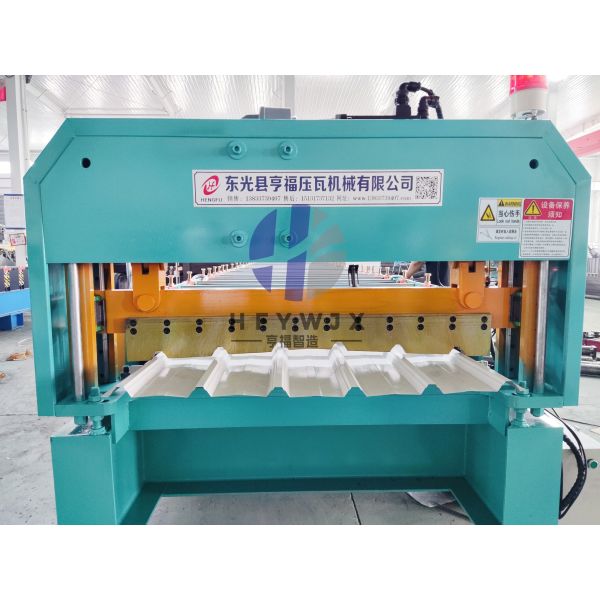

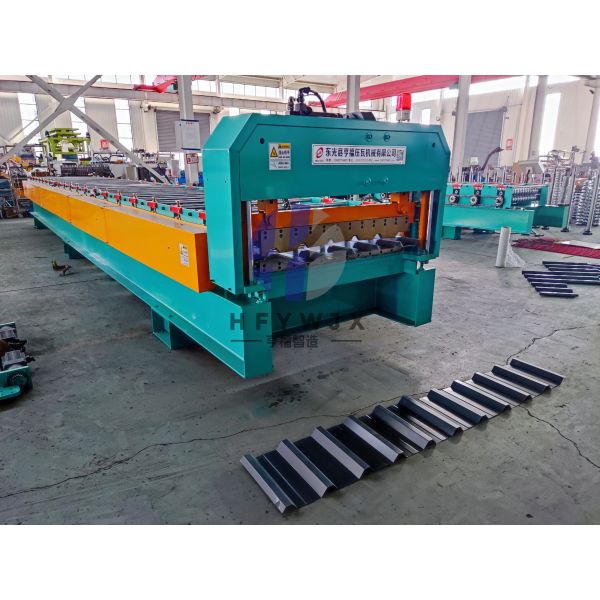

High Strength Frame 1000-type Trapezoidal Roll Forming Machine
The 1000-type Trapezoidal Roofing Sheet Roll Forming Machine is a specialized equipment designed to produce high-quality trapezoidal metal roofing sheets widely used in industrial construction projects. It is ideal for manufacturing durable, weather-resistant panels for roof cladding, wall panels, and structural support applications. This new machine is built for continuous production, ensuring stable performance and reliable output.

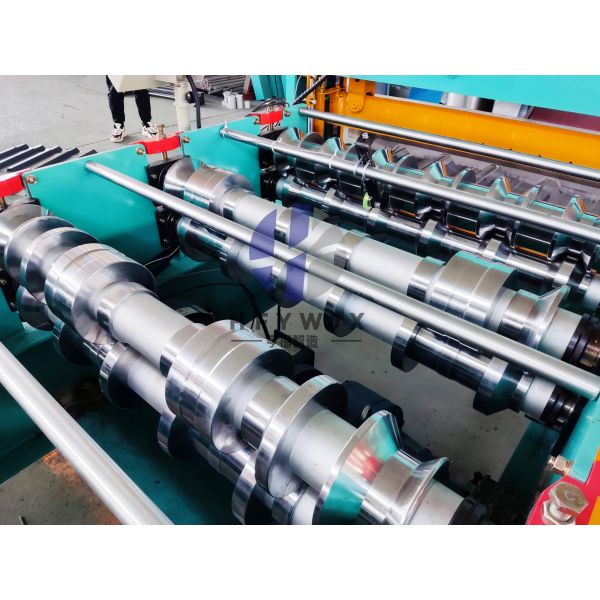

The machine features a heavy-duty 350H steel frame for strong stability, with a Φ70mm solid spindle and 13 rows of forming stations. It processes raw material with a feeding width of 1219mm at a forming speed of 12-15 meters per minute. The entire line measures approximately 6500mm×1600mm×1700mm, offering a compact footprint suitable for various factory layouts.

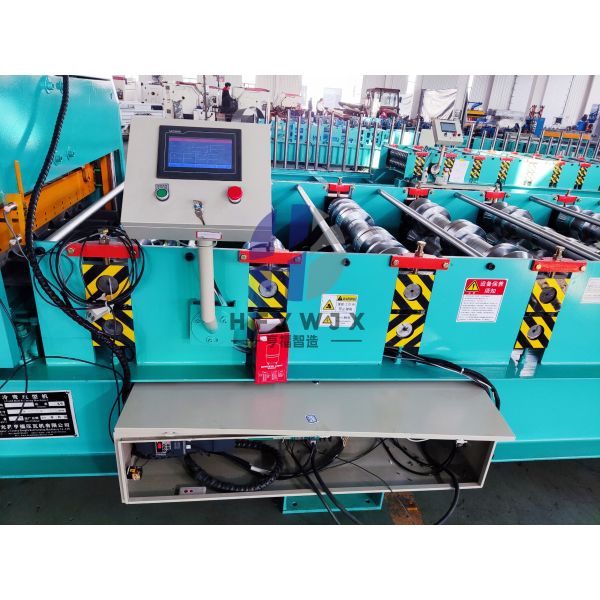

Equipped with chain drive and electric transmission, the machine ensures smooth and reliable operation. It uses a two-hand crank feeder with a pressure roller for easy material feeding. The design is simple yet durable, minimizing downtime and making it easy for operators to learn and use quickly.
The machine supports full customization, including profile design and equipment color, to meet specific project requirements. Originating from Cangzhou, Hebei—a renowned machinery manufacturing base, it comes with a 1-year warranty, providing customers with reliable after-sales protection and peace of mind.
Technical Specifications
Model NO 1000
Condition New
Usage Roof, Building
Feeding Width 1219mm
Machine Frame 350H steel frame
Forming Speed 12-15M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of Rolling Mill Sets 13 row molding

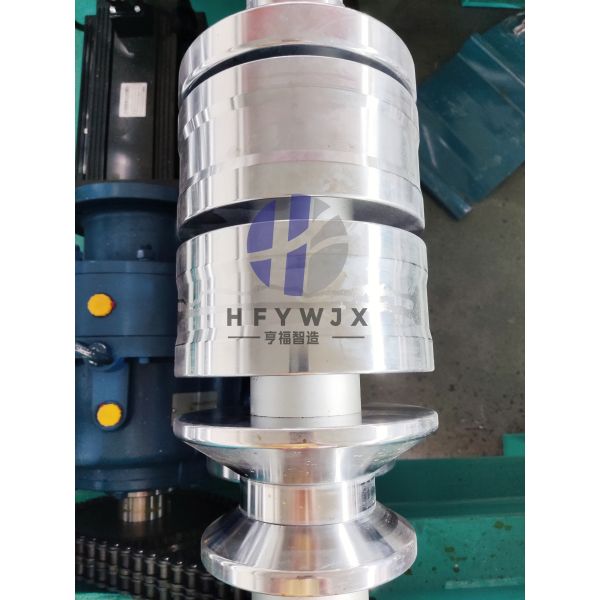

Spindle Diameter Φ70mm (Solid shaft)
Customized Customized
Feeding Method Two-hand crank feeder (with pressure roller)
Specification 6500mm×1600mm×1700mm
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type 350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type 350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type 350H Steel Frame Trapezoidal Sheet Forming Machine 12-15M/Min 1000-Type
Frequently Asked Questions
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
