1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO :
1040 roll forming machine
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Electric
Transmission Mode :
1-Inch Chain Drive
Tile Type :
Colored Steel
Transport Package :
Plastic Film & Steel Wire Fixed
HS Code :
8455229090
Description

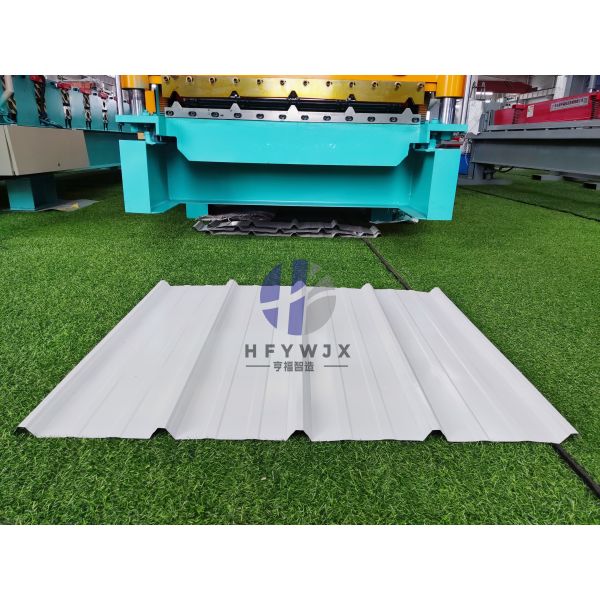

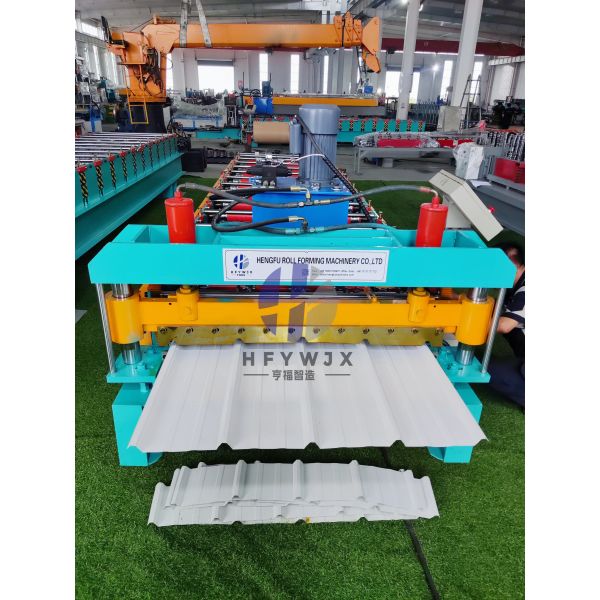

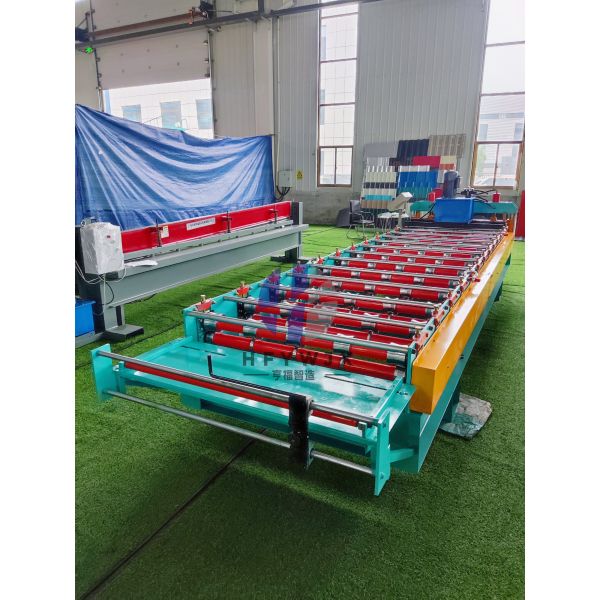

Rib Type 1040 Sheet Roll Forming Machine for Africa Trapezoid Roof Sheet Making Machinery
The 1040 Type Trapezoidal Roof Tile Roll Forming Machine is specially designed for producing high-quality trapezoidal roofing sheets. It is widely used in industrial buildings, warehouses, agricultural structures, and residential roofing systems due to its excellent strength, waterproof performance, and modern appearance.
Key Features
  • Strong 300H steel frame construction for excellent rigidity and stability
  • Heavy-duty structure reduces vibration and guarantees precise forming accuracy
  • Forming speed of 0-40 meters per minute for efficient production capacity

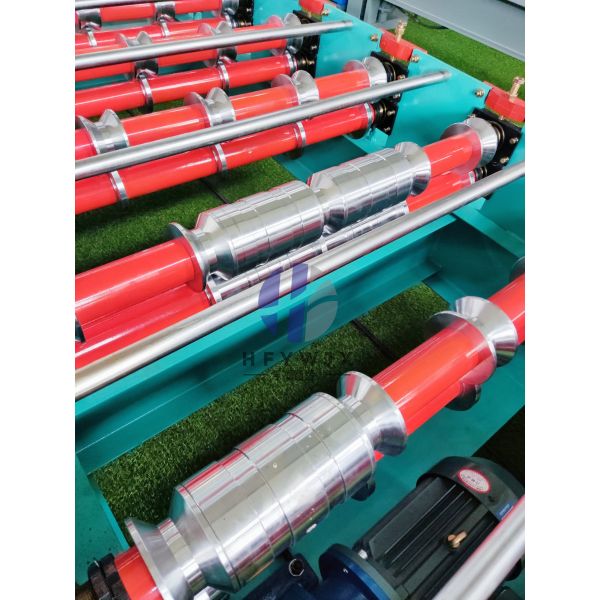

  • 13 rows of forming rollers for accurate and smooth trapezoidal profile shaping
  • Chain drive system with electric transmission for stable and reliable operation
  • Φ70mm solid shaft spindle enhances machine strength and durability
  • Customizable design to meet specific production requirements
Technical Specifications
Model NO 1040
Condition New
Usage Roof
Feeding Width 1200mm
Machine Frame 300H steel frame
Forming Speed 10-15M/min
Type of Driven Chain drive
Transmission Method Electric
Number of Rolling Mill Sets 13 row molding
Spindle Diameter Φ70mm (Solid shaft)
Feeding Method Iron plate feeding rack
Specification 7000mm x 1300mm x 1500mm
Origin Cangzhou, Hebei
Warranty 1 year
Product Gallery
1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame 1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame 1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame 1040 Type 13 Row Molding Trapezoidal Roof Sheet Machine With 300H Steel Frame
Frequently Asked Questions
Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own product design team. Welcome to visit our factory and inspect the quality of our machines on-site.
Q2: Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3: Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4: What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.
