Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Package Size :
1200.00cm * 150.00cm * 145.00cm
Package Gross Weight :
15000.000kg
Tile Type :
Colored Steel
Usage :
Roof, Floor
Precision :
High Precision
Degree of Difficulty :
Easy to Operate
SGS :
Certification
Transmission Method :
Electric
Maintain :
Easy Maintenance
Origin :
Dongguang, Cangzhou City, Hebei Province
Description
Dynamic Servo Drive Arc Shearing Machine High Efficiency Rotary Flying Shear for Continuous Sheet Metal Fabricating
Dongguang Hengfu Roll Forming Machine Co., Ltd. introduces its High-Efficiency Servo Shearing and Bending Machine, a premium integrated solution engineered for cold hard plate processing. This fully automatic equipment combines shearing and bending in one continuous workflow, delivering exceptional stability, precision, and efficiency for industrial sheet metal production.
The core advantage of this machine lies in its advanced servo control system, which ensures ultra-precise movement, stable feeding, and consistent processing. Compared with conventional hydraulic machines, it features lower energy consumption, quieter operation, faster response, and higher positioning accuracy.
Built with a heavy-duty welded frame, the machine offers outstanding rigidity and shock resistance, ensuring stable running even under long-hour, high-load production. The robust structure reduces vibration and extends service life, while high-strength wearing parts and precision machining guarantee minimal maintenance and high durability.
Technical Specifications
Machine frame 400H steel frame
Roll material 45# steel, hardened, rough-machined, fine-machined, fine-polished, and electroplated
Spindle material 45# steel, tempered and ground on the outside
Spindle diameter ¢70mm (solid shaft)
Main motor power 7.5KW servo motor
Transmission method Gear drive
Production speed 50/60-M/min (conservative speed)
Cutting die Two-blade shearing, Cr12 molybdenum vanadium hardened, HRC58-60
Cutting Cutting after forming, dual 3.8kW tracking shearing, 5.5kW electric shears
Electrical control system Industrial computer PLC vertical electrical control box
Tie rod 35mm

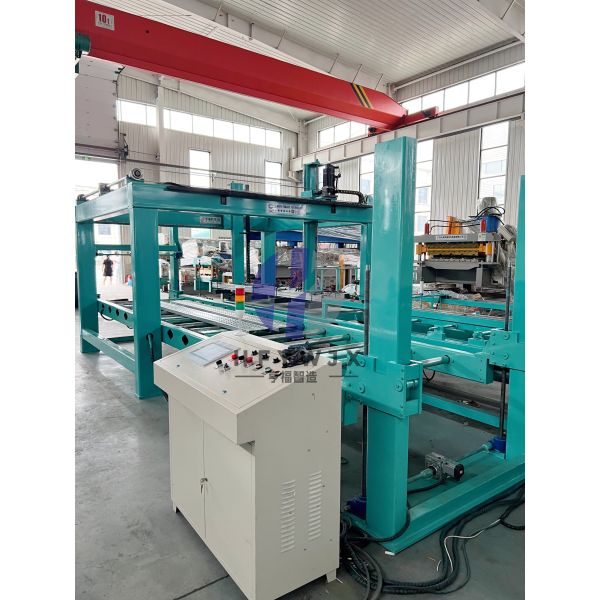

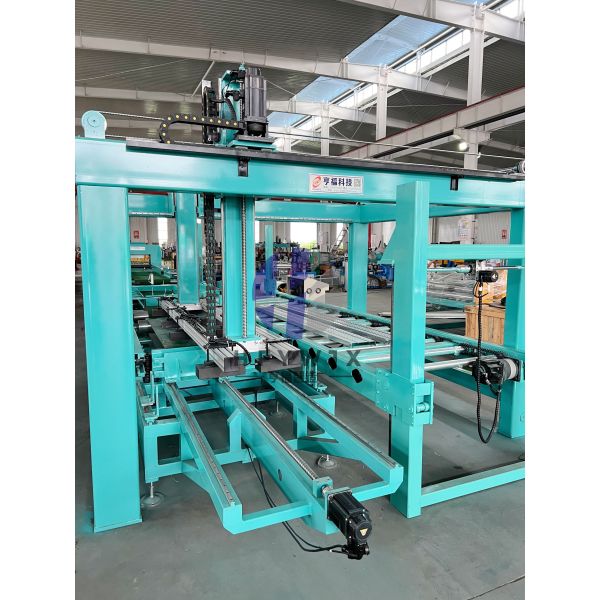

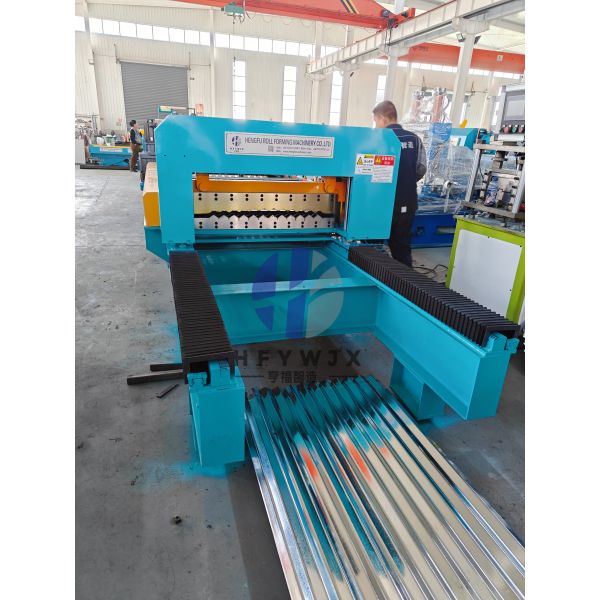

Product Gallery
Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication Servo Metal Sheet Shearing Machine Electric Transmission And Easy Maintenance For Sheet Metal Fabrication
Frequently Asked Questions
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Will the machine scratch the surface coating of the color-coated steel sheets during production?
With precision-ground and polished rollers, combined with a properly designed forming process, the machine will not scratch the sheet surface under normal operating conditions.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
