Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Galvanized Sheet
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Transmission Method :
Electric
Electronic Control System :
PLC
Transport Package :
Plastic Film & Steel Wire Fixed
Transmission Mode :
7.5kw Inch Chain Drive
Specification :
12000mmx1300mmx1400mm
Package Size :
1200.00cm * 130.00cm * 140.00cm
Package Gross Weight :
15000.000kg
Description
Industrial Intelligent Cold Hard Board Arc Machine

As a professional galvanized plate forming equipment, the cold hard plate arc machine specifies the feed width of galvanized plates as 1000mm to ensure forming accuracy and consistency. This key parameter is determined by equipment structure and production needs, avoiding unqualified forming caused by improper feed width.

To ensure overall stability and reliability, the equipment is made of 350H large steel, which resists deformation and wear from long-term high-intensity operation. The 26 sets of roll forming design realize gradual forming, reducing plate damage and improving product qualification rate.

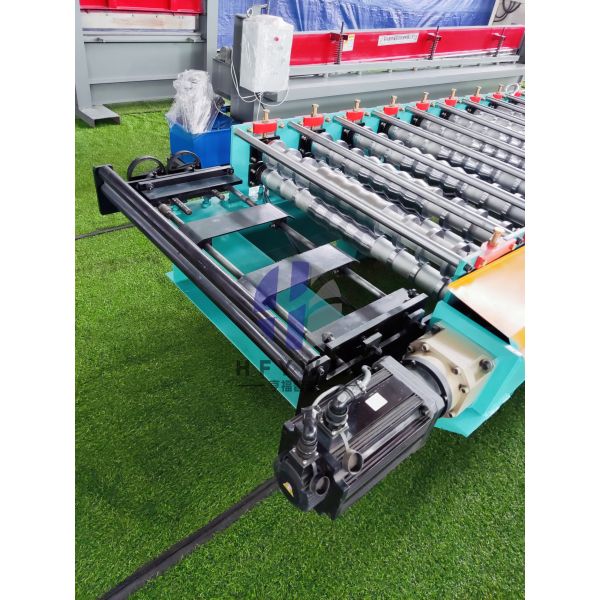

The 7.5kw servo motor provides sufficient power, with adjustable production speed of 0-40 meters per minute. This design greatly improves production efficiency, meeting the needs of mass production while ensuring product quality.

Technical Specifications
Model NO Corrugated Roofing Sheet Machine
Condition New
Usage Roof
Feeding Width 1000mm
Machine Frame 350H steel frame
Forming Speed 0-40M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of rolling mill sets 26 row molding
Spindle diameter Φ70mm (Solid shaft)
Customized Customized

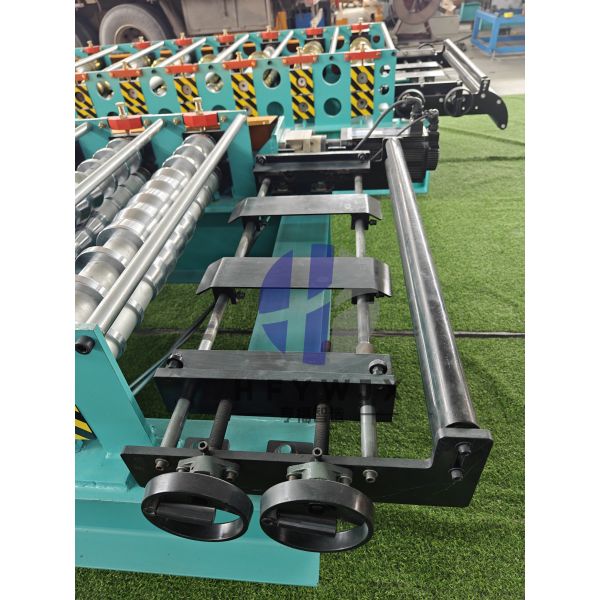

Feeding method Double hand rocking feeding rack (with pressure roller)
Specification 12000mm x 1300mm x 1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Material & Construction Details
Raw materials Galvanized steel
Machine frame 350H steel frame
Feed width 1000mm
Product Gallery
Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame Industrial Intelligent Corrugated Sheet Roll Forming Machine 350H Steel Frame
Frequently Asked Questions
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
What is the difference between your machines and cheaper alternatives?
  • The machine frame is thicker and will not deform even after prolonged use
  • The rollers feature high precision, ensuring a standard and consistent panel profile
  • The cutting system is stable, guaranteeing precise length accuracy
  • It boasts a low failure rate and low maintenance costs
  • It offers a significantly longer service life
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
