Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Tile Type
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Transmission Method :
Electric
Model :
Corrugated Roofing Sheet Machine
Transmission Mode :
7.5kw Inch Chain Drive
7.5kw Inch Chain Drive :
PLC
Specification :
12000mmx1300mmx1400mm
Transport Package :
Plastic Film & Steel Wire Fixed
Package Size :
1200.00cm * 130.00cm * 140.00cm
Package Gross Weight :
15000.000kg
Description

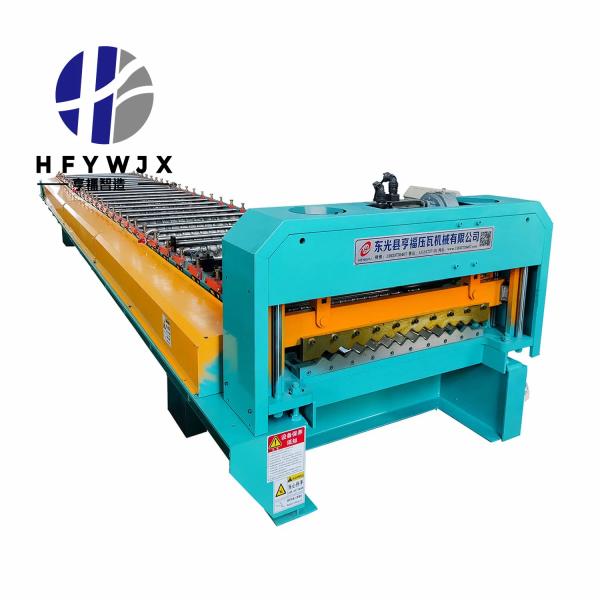

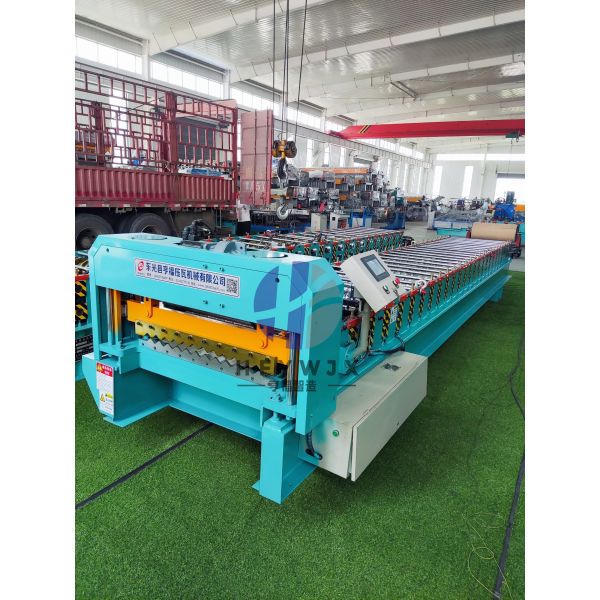

Stable High-Rigidity Cold Hard Board Arc Machine
The cold hard plate arc machine is an essential device in the galvanized plate processing industry, used for arc forming of cold hard plates. It requires a fixed feed width of 1000mm for galvanized plates, which ensures consistent forming effect of each batch and reduces equipment adjustment time, improving production continuity.
In material selection and structure design, the equipment prioritizes stability and durability. Made of 350H large steel, it can withstand operation impact and pressure. The 26 sets of roll forming design realize precise forming, and the 70mm solid main shaft enhances rigidity and extends service life.

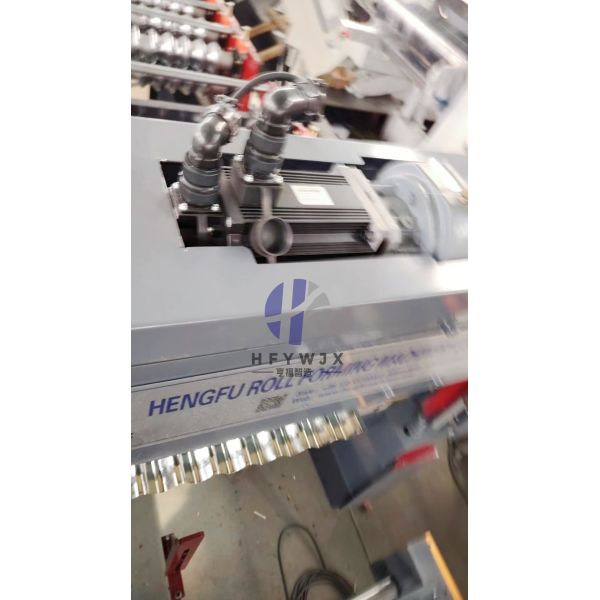

The 7.5kw servo main motor is energy-saving and stable, with production speed adjustable between 0-40 meters per minute. Operators can adjust the speed according to actual production, achieving a balance between efficiency and product quality.
The equipment emphasizes operation safety and intelligent control. Double hand-operated feeding ensures operator safety, the alarm-equipped electric shear reminds of abnormalities in time, and PLC frequency conversion control simplifies operation and ensures stable operation.
Technical Specifications
Model NO Corrugated Roofing Sheet Machine
Condition New
Usage Roof
Feeding Width 1000mm
Machine Frame 350H steel frame
Forming Speed 0-40M/min
Color Customized
Type of Driven Chain drive
Transmission Method Electric
Number of rolling mill sets 26 row molding
Spindle diameter Φ70mm (Solid shaft)
Customized Customized
Feeding method Double hand rocking feeding rack (with pressure roller)
Specification 12000mm x 1300mm x 1400mm
Origin Cangzhou, Hebei
Warranty 1 year
Material Specifications
Raw materials Galvanized steel
Machine frame 350H steel frame
Feed width 1000mm
Product Gallery
Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design Stable High Rigidity Corrugated Roll Forming Machine 350H Steel Frame 7.5kw 26 Sets Roll Forming Design
Frequently Asked Questions
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
