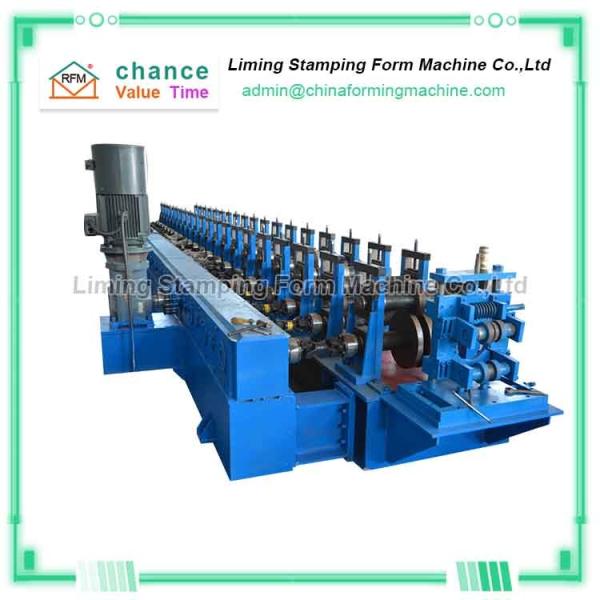

Plc Adjustable Speed Photovoltaic Bracket 15kw Steel Roll Forming Machine
Plc Adjustable Speed Photovoltaic Bracket 15kw Steel Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Solar 7
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
40work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity: :
20/min
Material of blade: :
Cr12Mov,HRC58-62
After-sales Service Provided: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
thickness: :
0.3-1.2mm
Power: :
15kw
Dimension(L*W*H): :
8500*1500*1200mm
plc: :
mitsubishi/delixi/siemens
Description

Adjustable speed and precise size Photovoltaic bracket forming machine

Solar energy is the most important basic energy source among all kinds of renewable energy; therefore, as a solar power technology that converts solar radiant energy into electrical energy, the photovoltaic industry is developing rapidly. The photovoltaic bracket must be strong and reliable by virtue of its own structure, and can withstand the atmosphere. The advantages of erosion, wind load and other external effects are widely used by others. If you want to produce solar photovoltaic stents, we can provide photovoltaic stent forming machines to help you produce.

The photovoltaic support forming machine integrates the production process of uncoiling, punching, roll forming, and shearing, and is controlled by a PLC programming system to achieve the effect of automatic production, which can help you save a lot of labor costs.

The photovoltaic support products produced by the photovoltaic support forming machine have safe and reliable installation, can achieve the maximum use effect with the minimum installation cost, almost maintenance-free, and have the characteristics of reliable maintenance, which can help you quickly win market competitiveness at the same time It can also bring you objective benefits.

Technical parameters of Reusable, adjustable position, photovoltaic bracket forming machine

serial number
Serial number
Equipment Type and Specification
quantity
power of motor (KW)
1
Discharger
5T Automatic Hydraulic
1set
4KW
2
leveller
9 rolls leveling
1set
5.5KW
3
Servo feeder
Separate control system
1set
5.5KW
4
puncher
JH21-80 High Speed Press
1set
7.5KW
5
Punching, computer control cabinet
300 mm per feed
1set
6
Molding mainframe
Arch structure, bevel gear box drive
1set
45KW
7
pneumatic circuit
Flow rate 0.5 m3/min; pressure 0.7 Mpa
1set
8
Hydraulic cutting device
Hydraulic tape storage
1set
7.5KW
9
navar
PLC control system
1set
10
Discharge Desk
Length 3 m
2set

Plc Adjustable Speed Photovoltaic Bracket 15kw Steel Roll Forming Machine
