0.3mm Customized Shelf Column Liming Roll Forming Machine
0.3mm Customized Shelf Column Liming Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Solar 4.3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity: :
15m/min
Material of blade: :
Cr12Mov,HRC58-62
After-sales Service Provided: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
thickness: :
0.3-1.2mm
Warranty: :
1 Year
Dimension(L*W*H): :
9500*1500*1200mm
Core Components: :
PLC
Description

Factory direct sales customized shelf column forming machine

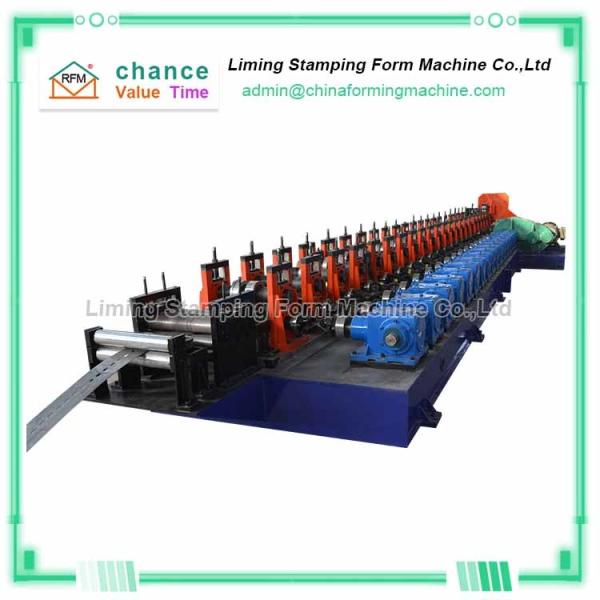

The shelf column forming machine is a forming equipment used to produce shelf columns.

The forming process of the shelf column forming machine: uncoiling-punching-feeding-roll forming-cut to length-splicing, these processes are composed, and the shelf column forming machine is the combination of these forming processes. A piece of equipment, and controlled by PLC electronic control, can help you save a lot of labor costs.

Technical parameters of Factory direct sales customized shelf column forming machine

Machine sizes:
15*1.5*1.8m
Roller diameter:
Φ100mm
Speed:
8-15m/min
Power:
45kw
Molding row:
12rollers
Die Material:
GCR12MOV (HCR58-62)
Machine weight:
35T
Transmission type:
Gearbox drive

The punching device of the shelf column forming machine can use roll punching. The blanking position produced by the roll punching is accurate and the punching speed is fast, which greatly breaks the pattern of the conventional main machine according to the punching speed and can help you produce efficiently.

Shelf column forming machines need customized production. Because each country has different profile sizes, mass production of shelf column forming machines cannot be carried out. Therefore, customized production is required, but please rest assured that we have an experienced design team that can help you Design and manufacture high-precision shelf column forming machines.
