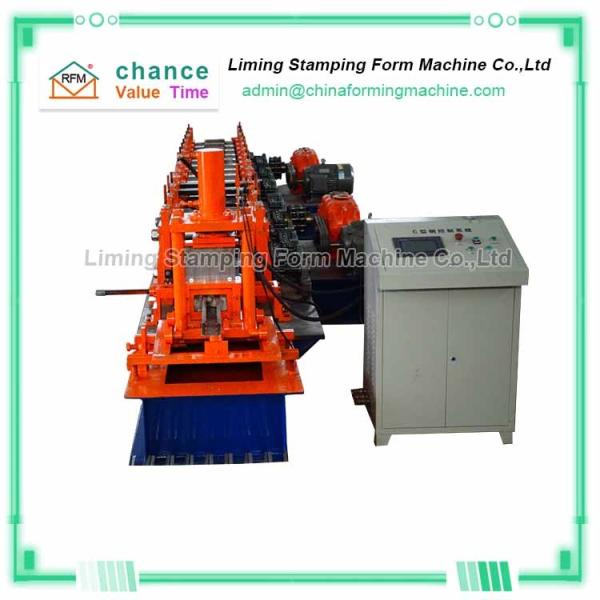

Punching Shelf Column Plc Metal Roll Forming Machine 8m/Min
Punching Shelf Column Plc Metal Roll Forming Machine 8m/Min
Specifications
Brand Name :
LIMING
Model Number :
LM-Solar 3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity: :
8m/min
Material of blade: :
Cr12Mov,HRC58-62
After-sales Service Provided: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Control system: :
PLC
Power: :
15kw
Dimension(L*W*H): :
9.5*1.5*1.2m
Weight: :
6T
Description

The industry is fully automatic, a new generation of roll punching, shelf column forming machine

Our common shelf column forming machine uses a punch to punch the shelf column. It is necessary to ensure that the forming speed of the shelf column forming machine host is consistent with the punching speed of the punching machine to maintain continuous and normal production. However, the shelf column is formed The production speed of the machine cannot be adjusted, only a constant speed can be maintained.

The new generation of shelf column forming machine developed by Liming Company breaks the conventional punching method and adopts the newly developed roll punching to achieve the purpose of adjusting the punching speed. At the same time, we also use a reducer transmission method. Enhance the power of the shelf column forming machine, which can help you quickly produce shelf column products.

The shelf column forming machine is also equipped with a three-piece knife cutting device, which makes the section of the cut product clean and without secondary processing, which can help you save a lot of manpower costs.

Technical parameters of Windproof And Shockproof Solar PV Bracket Roll Forming Machine

No. Solar PV Bracket Roll Forming Machine
1 Length of the main part 9.5*1.5*1.2m
2 Weight of main part About 6 t
3 Voltage 380V/50HZ3Phase (as customer’s request)
4 Roller fixer Guide column
5 Frame Middle plate welded
Memorial arch frame type
6 Frame thickness 25mm
7 Drive mode Gear or chain
8 Material of rollers 45# steel with tempering
9 Material of shafts 45# steel with tempering
10 Diameter of shafts φ40mm
11 Number of rollers 10 rollers
