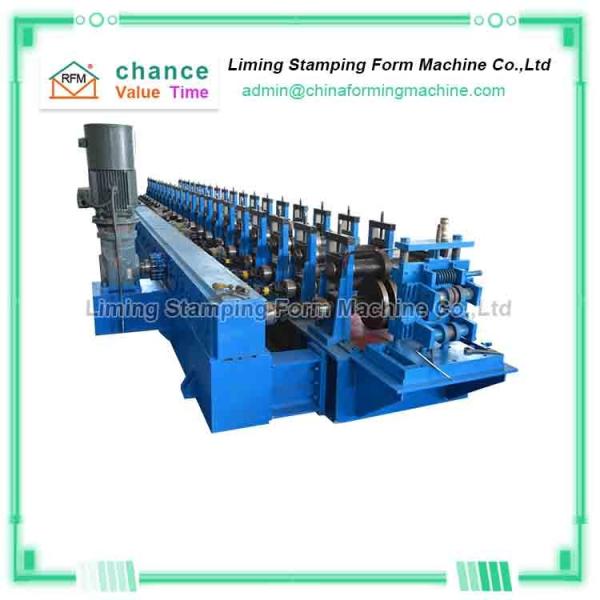

Photovoltaic Bracket 0.3mm 15kw Roll Forming Equipment
Photovoltaic Bracket 0.3mm 15kw Roll Forming Equipment
Specifications
Brand Name :
LIMING
Model Number :
LM-Solar10
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
40work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity: :
30/min
Material of blade: :
Cr12Mov,HRC58-62
After-sales Service Provided: :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
thickness: :
0.3-1.0mm
Power: :
15kw
Dimension(L*W*H): :
9500*1500*1200mm
plc: :
mitsubishi/delixi/siemens
Description

Easy to install, industry-leading photovoltaic bracket forming machine

Solar photovoltaic bracket is a special photovoltaic bracket designed to support and fix solar panels in solar photovoltaic power generation systems. The bracket is environmentally friendly, easy to store, and light in weight. It is highly sought after by the market. In order to respond to market demand, our company has developed and manufactured for many years Out of the photovoltaic bracket forming machine.

The bracket forming machine is composed of an uncoiler, a feeding frame, a forming device, a universal straightening device, a die cutting head, a receiving frame, an electric control system, and a hydraulic system.

1. The photovoltaic support molding machine produced by our company adopts a gear box transmission method to ensure sufficient power for the solar photovoltaic support pair, so as to achieve the purpose of producing photovoltaic supports of different thicknesses.

2. The cutting of the mold equipped with the photovoltaic support molding machine makes the produced photovoltaic support products accurate in size, and the cut section is clean and free of burrs.

3. The galvanized feeding rack equipped with the photovoltaic support forming machine has four-point adjustment and supporting rollers to ensure that the feeding width is convenient and does not cause damage to the raw materials.

Technical parameters of Easy to install, industry-leading photovoltaic bracket forming machine

serial number
Serial number
Equipment Type and Specification
quantity
power of motor (KW)
1
Discharger
5T Automatic Hydraulic
1set
4KW
2
leveller
9 rolls leveling
1set
5.5KW
3
Servo feeder
Separate control system
1set
5.5KW
4
puncher
JH21-80 High Speed Press
1set
7.5KW
5
Punching, computer control cabinet
300 mm per feed
1set
6
Molding mainframe
Arch structure, bevel gear box drive
1set
45KW
7
pneumatic circuit
Flow rate 0.5 m3/min; pressure 0.7 Mpa
1set
8
Hydraulic cutting device
Hydraulic tape storage
1set
7.5KW
9
navar
PLC control system
1set
10
Discharge Desk
Length 3 m
2set

Photovoltaic Bracket 0.3mm 15kw Roll Forming EquipmentPhotovoltaic Bracket 0.3mm 15kw Roll Forming EquipmentPhotovoltaic Bracket 0.3mm 15kw Roll Forming Equipment
