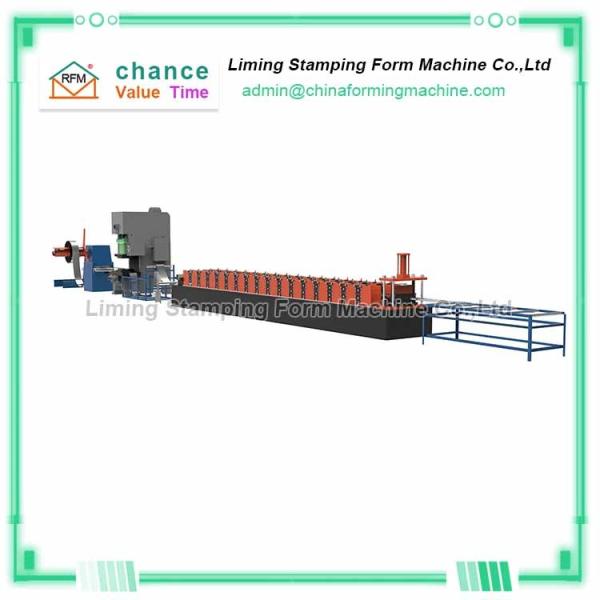

3mm Thick 380v PLC Cable Tray Roll Forming Machine
3mm Thick 380v PLC Cable Tray Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Bridge 8
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
450set/Year
Delivery Time :
50 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Showroom Location: :
Pakistan, India, Russia
Rolling thinckness: :
1-3mm
Dimension(L*W*H): :
10X1.4X1.6M
Warranty :
1.5 years
Voltage :
380v 50Hz
Core Components: :
Motor, Pump, PLC
Suitable to process:Suitable to process:nents: :
Color steel plate
Description

One machine with multiple models, simple operation, cable tray forming machine

The cable bridge can be independently erected in the building, or attached to various buildings (structures) and pipe corridor supports. It has the characteristics of simple structure, beautiful appearance, flexible configuration and convenient maintenance, so it is very popular.

The cable tray forming machine developed by Liming Pressing Machinery Co., Ltd. is composed of an uncoiling device, a splicing device, a forming host, a shearing device, and a splicing device. The whole machine is controlled by a PLC programming system, which is easy to learn and can help you save manpower. cost.

The cable tray forming machine can produce a variety of widths and heights of cable trays. Different specifications can be completed by electronically controlling the rolling size of the cantilever bridge machine. The bridge forming host adopts a cantilever structure and a set of rolls completes all specifications of the cable tray products. The specification changes are completed by the computer The automatic adjustment of the controlled variable speed motor is completed.

Technical parameters of One machine with multiple models, simple operation, cable tray forming machine

Electric fence bridge machine
Production requires rolling a strip width limit 100mm-860mm
Board thickness 1-2.5mm
Molding speed of molding machine 10-15m/min
Online punching production speed 2.5-5M/min
Material requirements Low carbon steel/galvanized steel coil
Operation method automatic / manual
classification Through shaft/cantilever
3mm Thick 380v PLC Cable Tray Roll Forming Machine
