Multi Galvanized Hydraulic Cutting 2mm Cable Tray Forming Machine
Multi Galvanized Hydraulic Cutting 2mm Cable Tray Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Bridge 1
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
450set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Showroom Location: :
Pakistan, India, Russia
Cutting type: :
Hydralic Cutting
Rolling thinckness: :
1-2mm
Side rail height: :
50-60mm
Warranty :
2 years
Voltage :
380v 50Hz
Core Components: :
Motor, Pump, PLC
Suitable to process:Suitable to process:nents: :
Color steel plate
Thickness: :
0.3-0.8mm
Description

One-Machine Multi-Type Cable Tray Forming Machine

With its own characteristics of insulation, dustproof, corrosion resistance, and high strength, cable trays are often used to support insulated cables, which are used for power distribution, control and communication, so the cable tray plays an irreplaceable role. If you need to produce cable trays, we can provide cable tray forming machines.

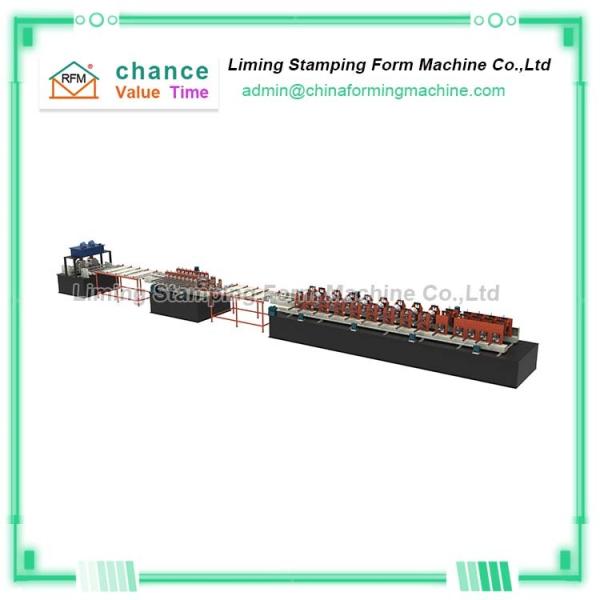

The cable tray forming machine is composed of uncoiling, feeding, forming host, shearing and receiving device. The whole machine is controlled by the PLC programming system. It can be automatically produced by manually inputting parameters. At the same time, the cable tray forming machine adopts a through-shaft structure. The size can be adjusted according to the needs, and a variety of models of cable tray products are produced, which helps you save the cost of wheel replacement and employment.

The cable tray forming machine is also equipped with punching devices on both sides, and the hole position can be adjusted, which helps you save the time and cost of changing molds of different sizes, so as to achieve the purpose of high efficiency production.

At the same time, the products produced by the cable tray forming machine are accurate in size, clean in cross-section without burrs, accurate in hole positions and easy to install, which can help you quickly win market competition.

Technical parameters of Large span hot dip galvanized cable tray roll forming machine

NO Item Description
1 material spec colored steel sheet, galvanized steel sheet, aluminum sheet
2 thickness of coil sheet 0.8-1.5 mm
3 Side rail height 50-60mm
4 length Max3000mm
5 Width 50-500mm
6 roller material high grade NO. 45 forged steel with 0.05mm hard chrome plating
7 shaft material high grade NO. 45 carbon wrought steel
8 cutting blade Cr12 mould steel with quenched treatment
9 diameter of shaft 70mm or as your requirement
10 main frame 350 H steel
11 forming steps 22rows
12 hydraulic station power 15 KW
13 hydraulic pressure 10-12MPa
14 controlling system famous PLC computer controlfamous PLC computer control
17 hydraulic oil 45# hydraulic oil
