1.0mm Wire Slot PLC Roll Forming Line Liming
1.0mm Wire Slot PLC Roll Forming Line Liming
Specifications
Brand Name :
LIMING
Model Number :
LM-Bridge 5.4
Certification :
CE BV STV ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram, Western Union
Supply Ability :
450set/Year
Delivery Time :
40 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Showroom Location: :
Pakistan, India, Russia
Rolling thinckness :
1.0mm
Production Capacity :
20M/Min
Warranty :
2 years
Voltage :
380V
Core Components :
Motor, Pump, PLC
Weight :
10T
Description

Industry Leading Technology 1.0mm Wire Slot Machine LiMing

The cable bridge is divided into trough type, tray type, ladder type, net format and other structures, which are composed of brackets, supporting arms and installation accessories. The bridge frame in the building can be erected independently or attached to various buildings and pipe gallery supports. Because of its simple structure, beautiful appearance, flexible configuration and convenient maintenance, it is deeply loved by people

Technical parameters of Industry Leading Technology 1.0mm Wire Slot Machine LiMing

No Item Parameter
1 Model Punching and cutting before forming
1 Forming Speed

20 m/min(depend on quantity of punching)
2 Forming station 17 groups
3 Main Power 15KW moving motor
Pump station Power 5.5 KW
4 Total Weight About 10t
5 Voltage 380v,60hz,3p
6 Diameter of shaft 90 mm solid
7 Installation Size About 30 *2 M *3
8 Middle Plate Double row 20mm middle plate
9 Main frame system 400 mm channel steel structure with tempering heat treatment
10 Measuring accuracy Precision 3m +/-3mm,with frequencyer
11 Transmission By 1 inch double row chain.
1 Punching machine 160T with servo feeding system
2 Molds 1 set

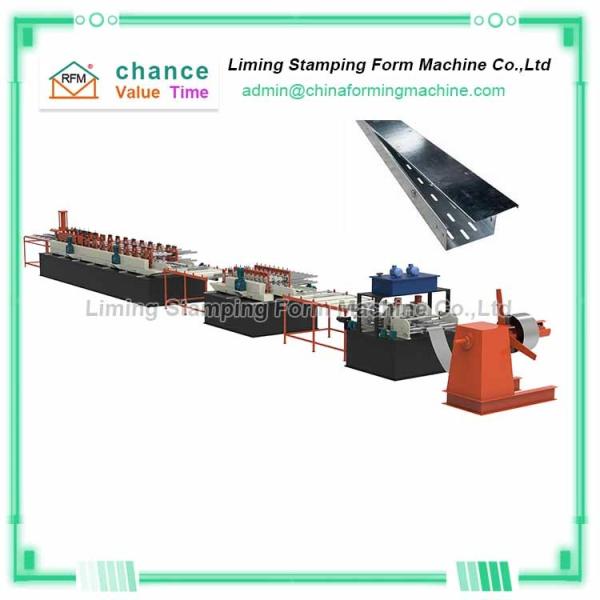

The wire slot machine is composed of an uncoiling device, an adjustable punching device, a small-side bending device, a large-side bending device, and a shearing device. The whole machine is controlled by PLC electronic control. Simple operation can help you save a lot of manpower.

The trunking machine developed by Liming Pressing Machinery Co., Ltd. adopts adjustable punching devices on both sides, which can meet the needs of different hole positions, so as to facilitate the installation of cable trays and facilitate the transportation of cable trays, which can help you quickly Dominate the market.

In order to meet the needs of customers, the trunking machine produced by our company can be matched. Customers can purchase a certain production module of the trunking machine according to their own raw materials to complete the production of cable trays. If you do not have experience in producing cable trays, we Can provide you with a variety of production solutions to meet your needs, so as to help you solve the problem of producing cable tray products
