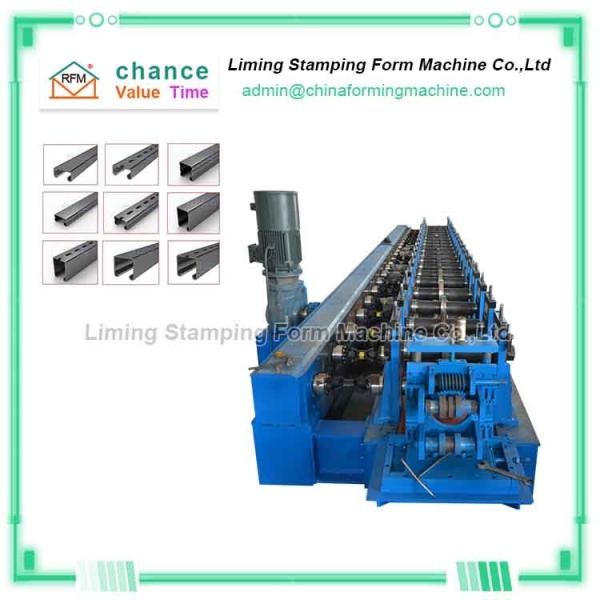

1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine
1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-Solar 5.1
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity :
15m/min
Material of blade :
Cr15Mov,HRC58-62
Dimension(L*W*H) :
9500*1500*1200mm
thickness :
1-2.5mm
Cutting blade material :
Cr12 Frequency Quenching
PLC :
mitsubishi/delta/siemens
Description

Solar stent forming machine leading technology and easy to install

Liming Forming Machinery Co., Ltd. is a professional manufacturer of solar stent forming machine, photovoltaic stent production line, Uc stent plate roll forming machine, and solar stent plate roll forming machine. Our company has been focusing on international export, product development, production and sales for 25 years. The solar stent molding machine produced by our company has a long life and sufficient power. The photovoltaic stent products produced by our company are accurate in size and easy to install, and have been well received by customers in many countries.

item value
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service聽Location None
Showroom Location None
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use ROOF
Production Capacity 15m/min with press step
Place of Origin China
Hebei
Brand Name LiMing
Voltage 220-450V according to customer
Dimension(L*W*H) 9000*1500*1200
Weight 4500kg
Certification CE
Warranty 13months
Key Selling Points Long Service Life
Rolling thinckness 2.5mm
Feeding width 130mm
Machinery Test Report Provided
Video outgoing-inspection Provided
Marketing Type New Product 2020
Warranty of core components 3 years
Core Components Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided Engineers available to service machinery overseas
Product name roll forming machine
Raw material Steel Coil GI
Roller material Cr12 Steel Quenched
Shaft material 45# Steel Outer Diameter: 50mm
Cutting blade material Cr12 Frequency Quenching
Main frame 350H Steel
Control system PLC(detla) System
Cutting type Servo Tracking Cutting
Main motor power 5.5 Kw

The solar stent forming machine developed by Liming Company is composed of uncoiling device, servo feeding device, stamping device, forming host, servo flying saw cutting, and receiving device. The whole machine is controlled by the PL programming system, and it can be completed automatically by filling in the data. Production can help you save a lot of labor costs.

The solar stent forming machine can be customized production. You only need to provide the size or sample. Our engineers with 20 years of work experience can design multiple sets of your solar stent forming machine configuration schemes for you to choose from, and we also have Experienced mechanical engineers will assemble and debug the solar stent forming machine for you to ensure high accuracy and high production efficiency.

1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine

Product tags

solar bracket roll forming machine

,

solar roll forming machine

,

anode plate roll forming machine
Send your message to this supplier
Send Now

1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine

Ask Latest Price
Watch Video
Product Detail
Brand Name :
LIMING
Model Number :
LM-Solar 5.1
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Contact Supplier
video
1mm Mitsubishi Bv Solar Pv Bracket Roll Forming Machine

Liming Stamping Form Machine Co.,Ltd

Active Member
5 Years
hebei
Since 1996
Business Type :
Manufacturer, Exporter, Seller
Main Products :
Roof Panel Roll Forming Machine, Roofing Sheet Roll Forming Machine, Stud And Track Roll Forming Machine
Total Annual :
2000000-5000000
Employee Number :
100~400
Certification Level :
Active Member
