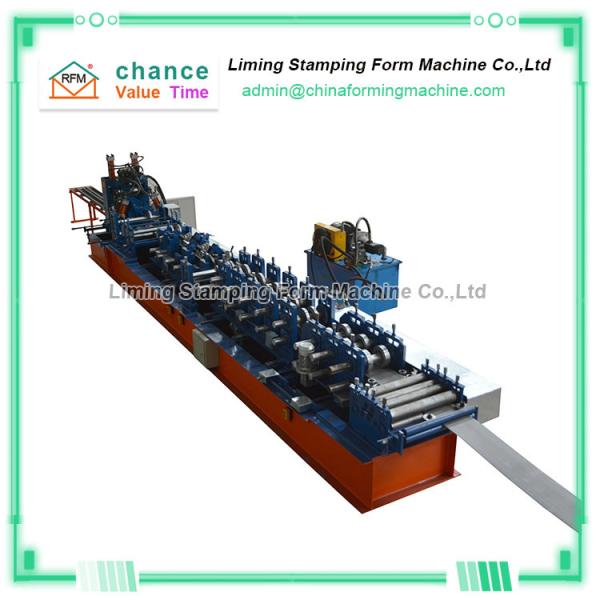

LIMING Purlin Roll Forming Machine Q345 Material 10.3*1.5*1.2m
LIMING Purlin Roll Forming Machine Q345 Material 10.3*1.5*1.2m
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin14
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Driving system: :
Chain drive
Processing custom galvanized C shaped purlin steel roll forming machine :
10-15m/min
Size: :
10.3*1.5*1.2m
Voltage :
380V,50Hz,3Ph
Motor power: :
22kw
Dimension(L*W*H): :
6500*1300*1400mm
Thickness: :
1.5-3mm
Description

Q345 Material C And Z Interchangeable Purlin Roll Forming Machine

"Q345 material C and Z interchangeable purlin roll forming machine" performance:

High-strength "Q345 material C and Z interchangeable purlin roll forming machine" : Using high-strength steel plate as the base material (tensile strength 5600KG/CM) plus the most advanced design and roll forming, it has excellent structural characteristics.

The fire resistance of the "Q345 material C and Z interchangeable purlin roll forming machine" : The surface material and insulation material of the color composite sandwich panel are non-combustible materials, which can fully meet the requirements of fire protection regulations.

"Q345 material C and Z interchangeable purlin roll forming machine" is installed quickly: the composite board has the characteristics of light weight, splicing installation and easy cutting, which determines the simplicity of its installation, which can greatly improve efficiency and save time.

Durability of"Q345 material C and Z interchangeable purlin roll forming machine" : Various studies have been carried out and it has been widely used abroad for more than 40 years. The shelf life of color steel plate treated with special coating is 10-15 years. After 10 years of anticorrosive paint spraying, the service life of the board can reach more than 35 years.

The aesthetics of the"Q345 material C and Z interchangeable purlin roll forming machine" : the clear lines of the special-shaped steel plate have dozens of colors, which can meet the needs of any style of construction and obtain satisfactory results.

Technical parameters of Q345 Material C And Z Interchangeable Purlin Roll Forming Machine

General properties
Maximum production speed not less than 15 meters per minute excluding cutting and punching
Bending precision the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances)
Bending quality ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
Profile, layout & production flow
Steel thickness (t) from 1,5 mm to (at least) 3,0 mm
Profile height (A) as following list
Flange width (B) as following list
Lip width (C) as following list
Minimum finished product length at least 500 mm
Maximum finished product length at least 12000 mm
Length tolerance ±1.5mm per each pieces

Product tags

cz purlin roll forming machine

,

c z purlin roll forming machine

,

c purlin roll forming machine
