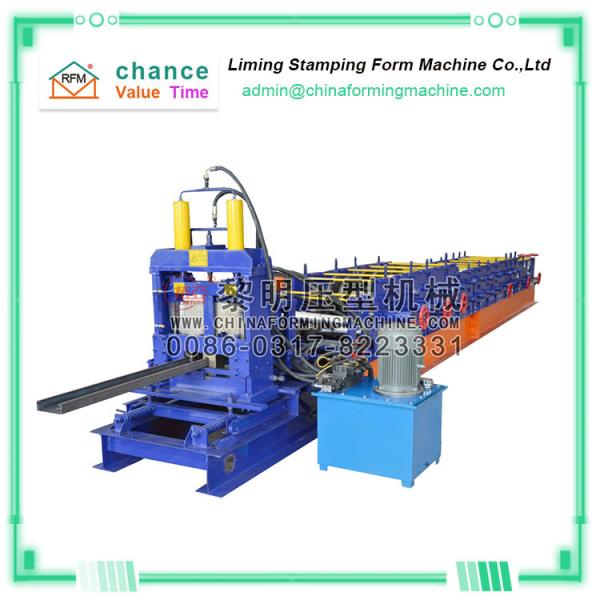

22kw CZ80 Purlin Roll Forming Machine 300H Steel Frame
22kw CZ80 Purlin Roll Forming Machine 300H Steel Frame
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin33
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Main frame: :
300H Steel
Production Capacity: :
15-25M/min
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Pump
thickness of coil sheet: :
1-3mm
Warranty :
2 years
Main Motor Power: :
22kw
Cutting blade material: :
Cr12Mov
diameter of shaft: :
70 mm
Weight: :
15-25M/min
Description

CZ80/120-300 Interchange Purlins Roll Forming Machine For Building Materials

In China, the "CZ80/120-300 interchange purlins roll forming machine for building materials " has undergone many changes, from being unable to change specifications and models to changing specifications and models. Later, many methods were used to replace the mold model

Our professional engineers will select the appropriate specifications and high-quality parameters for the "CZ80/120-300 interchange purlins roll forming machine for building materials ", so that the machine can run well and extend its service life.

"CZ80/120-300 interchange purlins roll forming machine for building materials ", one machine can produce c pur and z pur at the same time.

"CZ80/120-300 interchange purlins roll forming machine for building materials " can automatically change the size, PLC control, and easy to operate.

Technical parameters of CZ80/120-300 Interchange Purlins Roll Forming Machine For Building Materials

Roll Forming Machine Specs
Guiding Rollers Two units 45# forging steel with treatment
Leveling Rollers Up 2 down 3, 45# forging steel with treatment
Roller station 13 forming units
Under Frame 350H-beam, Welded structure
Sidewall Thickness 18mm 45# Steel Plate
Sidewall Connect Bar 25mm
Shaft diameter(Solid) 70mm-0.01~-0.03(with key-way)
Shaft material(Hard) High grade 45# steel,heated and quenched cylindrical grinding,
Roller material(Hard) High grade GCr15 bearing steel,heated and quenched
Roller Surface hard chrome coated 0.05mm
Bearing Type Standard 6210
Screw&Bolt Self-made
Transmission Chain 1.5 inch(Jindun,Hangzhou)
Motor Power 11 KW(Lichao,Shanghai)
Forming Speed 12-15m/min
Hydraulic Punching Device
Hole size 15mm
Hydraulic Cutting Device Specs
Main Structure Welded Structural Steel
Steel Plate 18mm A3 Steel
Cutting type Hydraulic Operation,Stop to post and post to cut
Cylinder Quantity One unit
Pump power 5.5KW,25 Mpa Hydraulic Pressure
Cutting die Cr12Mov, Quenched processed
Automatic Computer Control System
Length tolerance 10m+/-1.5mm
PLC System Delta PLC Program
Length Controller Omron,Japan
Operation Touch-Win Screen,Jiangsu
Inverter Delta,Taiwan
Voltage Standard 220V/3Phases/60Hz
3 Ton Manual Uncoiler
Link-connect expanding system
Coil Inner-diameter 480-510mm
Coil Outer-diameter Max. 1000mm
Load Capacity Max. 3 Tons
Coil Width Max. 650mm
