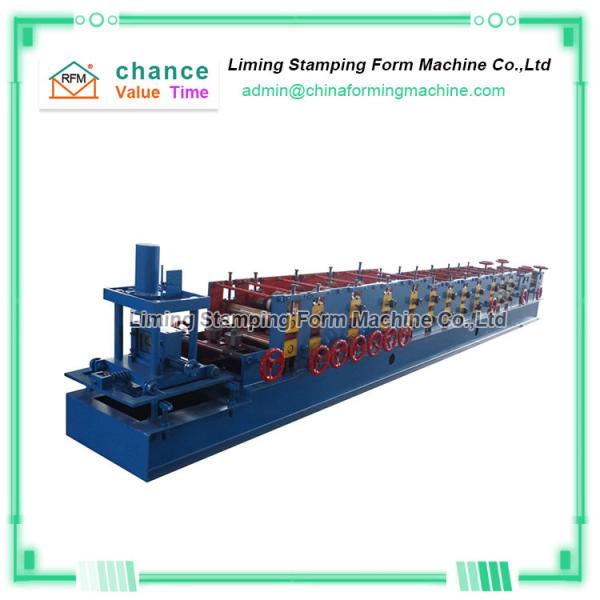

Well Stocked C Shaped Purlin Steel Roll Forming Machine
Well Stocked C Shaped Purlin Steel Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin8
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Building Material Shops, Farms, Construction works
Marketing Type: :
New Product 2020
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Warranty of core components: :
2 years
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Control system: :
Automatic /human interface control
Work Pressure: :
16 MPA
Description

Well Stocked C Shaped Purlin Steel Roll Forming Machine

The C-shaped purlins produced by "Well stocked C shaped purlin steel roll forming machine" can be used as the main load-bearing structure for factories and warehouses, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, and large and large factories. Medium-sized industrial and civil buildings.

The motor power of Liming Stamping Form Machine Co.,Ltd "Well stocked C shaped purlin steel roll forming machine" is 11KW-6 poles, and the output power is 8-12 meters per minute.

The front leveling device of the leveling device of the "Well stocked C shaped purlin steel roll forming machine" uses two upper and lower leveling devices. The back row is one to one.

"Well stocked C shaped purlin steel roll forming machine" adopts external adjustment form, single-sided adjustment, fast adjustment speed and simple operation.

Technical parameters of Well Stocked C Shaped Purlin Steel Roll Forming Machine

No. Well stocked C shaped purlin steel roll forming machine
Sample
1 Profile Size 100-300
2 Suitable Raw Material 0.3-0.8mm, Color steel coil, Galvanized coil, Aluminized zinc coil or as your request
3 Under Frame 400 H-beam
4 Sidewall 20mm
5 Connect Bar 25mm, zinc plated
6 Roller Gcr15, processed by CNC lathe, hardening and tempering, polishing, hard chrome plated 0.05-0.07mm, with keyway
7 Shaft 80mm, solid, finish turning, cylindrical grinding, with keyway
8 Forming Stations 15
9 PLC DELTA, TAIWAN
10 Main Motor 15kw, Lichao, Shanghai, with reducer
11 Hydraulic Pump station 5.5 kw
12 Cutting blade Cr12Mov, quenching 58-62°, double oil cylinder
13 Oil paint National standard grey
14 Computer screen DELTA, TAIWAN
15 Chain double 2inch
