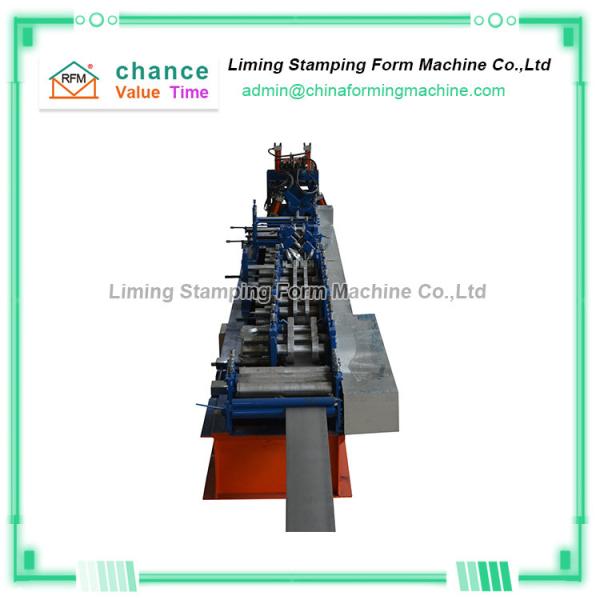

Automatic 30m/Min Cz Purlin Machine Delta PLC Control
Automatic 30m/Min Cz Purlin Machine Delta PLC Control
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin13
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Key Selling Points: :
Automatic
Processing custom galvanized C shaped purlin steel roll forming machine :
10-15m/min
Work Pressure: :
20p
Voltage :
380V,50Hz,3Ph
Control parts: :
Delta PLC
Dimension(L*W*H): :
65008130081400mm
Thickness: :
1.5-3mm
Description

Q235 Material C And Z Interchangeable Purlin Machine

The launch of "Q235 material C and Z interchangeable purlin machine" is a revolution in the open source and throttling project of the steel structure industry.

The main functions o f"Q235 material C and Z interchangeable purlin machine" are as follows:

First of all, "Q235 material C and Z interchangeable purifier" does not need to replace the cutting blade.

The second is the quick model change of "Q235 material C and Z interchangeable purlin machine", which can be changed within three minutes;

The adjustability of the third "Q235 material C and Z interchangeable purlin machine", the web, flange and flange edge can be completed, and the unit can be adjusted in millimeters;

The fourth is"Q235 material C and Z interchangeable purlin machine" CZ three-step conversion between two models and sizes;

Fifth, the coaxial design of "Q235 material C and Z interchangeable purlin machine"reduces the problem of uneven height on both sides of the broken shaft.

Technical parameters of Q235 Material C And Z Interchangeable Purlin Machine

Item Parameters
Coil Thickness(mm) 1.5~3
Max Speed(m/min) 30
Roll standard station (pcs) 18
Main Motor(KW) 22kw (Hydraulic Motor )
Main Shaft(mm) 80mm
Shaft materials 40Cr
Roller Materials GCr15
Cutting Way Hydraulic Cutting (7.5KW)
Cutting Blade Materials Cr12MoV
Hole Punching 3 sets
Control System PLC control (Xinjie)
Size Change PLC control / Press Button
C Z Interchange PLC control / Reverse roll
