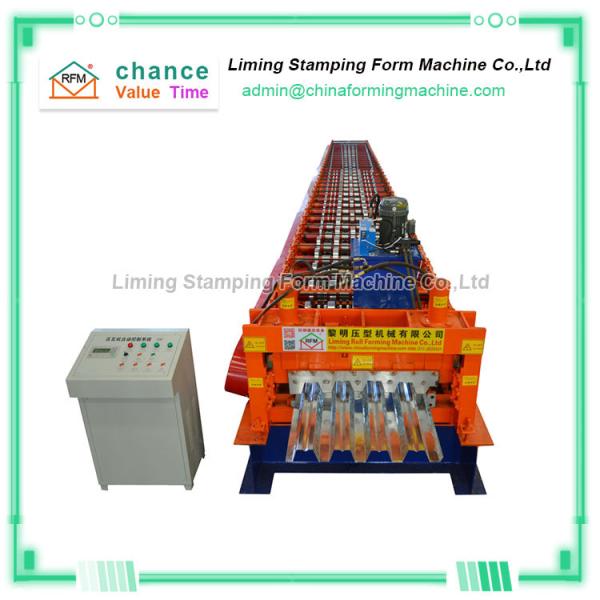

45 Steel Floor Deck Machine 11000x1550x1510mm For Civil Buildings
45 Steel Floor Deck Machine 11000x1550x1510mm For Civil Buildings
Specifications
Brand Name :
LIMING
Model Number :
LM-floor15
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Roller Material: :
45# Steel With Quenching 60mm Shaft
Forming Stations: :
28 stations
Power: :
22kw
Forming Speed: :
8-20m/min
Dimension(L*W*H): :
11000mm x 1550mm x 1510mm
Voltage :
380V
Material thickness: :
0.8---1.2 Mm
Effective Width: :
1250mm
Weight: :
4.5t
Length and length accuracy: :
± 2mm
Description

Custom Designed Floor Deck Forming Machine

"Custom designed floor deck forming machine" is widely used in industrial and civil buildings, high-rise structures of large public buildings, etc.

The floor produced by the "Custom designed floor deck forming machine" has high rigidity, convenient and fast construction, easy to update, and is convenient for the industrial production of composite floors.

The floor of the "Custom designed floor deck forming machine" is made of galvanized steel, and the thickness of the galvanized layer should still meet the requirements of not causing rust during use.

The "Custom designed floor deck forming machine" has passed the quality of the national fixed fire extinguishing system and refractory components. As a composite floor, no fireproof spraying is needed, so the engineering cost is greatly reduced.

The floor produced by the "Custom designed floor deck forming machine" is connected to the bite and press holes with special pliers. The plug is spot welded to the floor and steel beam with a special galvanized plug plate.


Main parameters of Custom Designed Floor Deck Forming Machine

Type Roll former for decking
Thickness 0.8mm-1.6mm
Feeding Width 1220mm
Frame Design Wall-plate-frame-design /New-stand-frame-design
Roll Stages 28 stages
Material Of Forming Roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ95mm
Main Motor Power 15KW×2 with reducer
Max. Line Speed of Roll Former 15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic Group Power 5.5KW
Material of Cutting Blade Cr12, hear treatment
Electric Standard 380V /50Hz/3PH or as per customer's requirements
Machine Dimensions part A+B:11200mm*2080mm*1050mm / Part C: 7000mm*2050mm*1700 mm
Major Color of Machine Painted RAL 5015 (Ornge) or as per customer's requirements
