380V 50Hz Floor Deck Machine 6m/min Panasonic Control
380V 50Hz Floor Deck Machine 6m/min Panasonic Control
Specifications
Brand Name :
LIMING
Model Number :
LM-floor7
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Applicable Industries: :
Hotels, Building Material Shops, Manufacturing Plant, Farms, Retail, Construction works , Advertising Company
After Warranty Service: :
Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Rack: :
welded with 400 steel
Production Capacity: :
12m/min
Dimension(L*W*H): :
8700*2230*1330mm
Voltage :
380V 50Hz 3Phases
Rolling thinckness: :
0.3-1mm
Feeding width: :
1220mm, 900mm, 1200mm, 1000mm
passive discharge bearing: :
10T
Passive discharge: :
manual tightening
Description

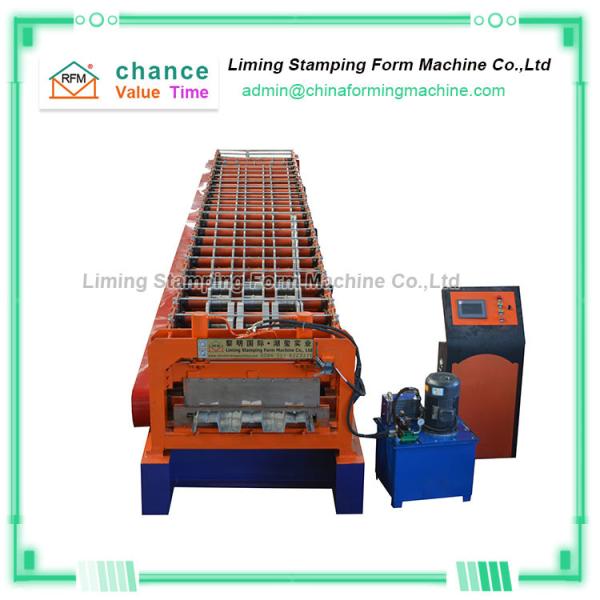

Galvanized 1025 Floor Floor Deck Forming Machine

The "galvanized 1025 Floor floor deck forming machine" is mainly composed of a feeding platform, a forming host, a forming and shearing device, a hydraulic station and a computer control system.

After completion, there is no need to dismantle the "galvanized 1025 Floor floor deck forming machine", which can effectively shorten the construction period.

The "galvanized 1025 Floor floor deck forming machine" embossing the surface of the profiled board to produce the greatest bonding force between the floor and the concrete, so that the two form a whole, with reinforcing ribs, so that the floor system has Higher load-bearing capacity.

"Galvanized 1025 Floor floor deck forming machine" uses galvanized sheet material as floor support. There is no need to decorate the ceiling separately, which can save a large part of the decoration cost for users. Therefore, it has been well received by many users.

Main parameters of Galvanized 1025 Floor Floor Deck Forming Machine

Items Specifications
Material of coil Material Width 1250mm
Material Thickness 0.4-0.7mm
Uncoiler 5 tons manual
Forming system Rolling Speed 6-15m/min
Roller Stations 14 stations
Roller Material 45# steel, Electroplating 0.02-0.05mm
Material of shaft 45 steel
Shaft DIA D76mm
Main Motor Power 15kw
Hydraulic cutting Power 5.5kw
Cutting system Material Of Cutting CR12Mov
Tolerance +-1.5mm
Electrical control system Electric Source 380V, 50HZ,3 phase
Control System PLC (Panasonic)
Way Of Drive 1.5 inch single chain
