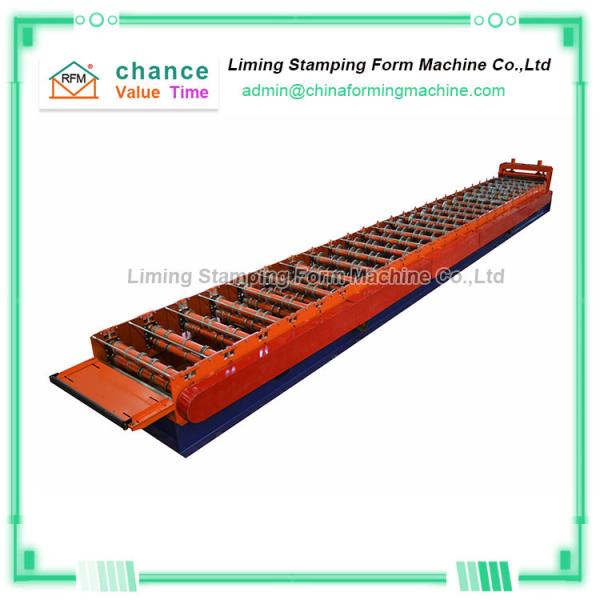

Hydraulic Cutting Floor Deck Machine Lifetime Warranty
Hydraulic Cutting Floor Deck Machine Lifetime Warranty
Specifications
Brand Name :
LIMING
Model Number :
LM-floor9
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Hydraulic Motor Power: :
37KW
Forming Steps: :
18
Hydraulic station motor: :
5.5kw
Molding machine line speed: :
8-10m/min
Dimension(L*W*H): :
16000*1800*1600mm
Voltage :
380V 50Hz 3Phases
Rolling thinckness: :
0.3-1mm
Feeding width: :
1220mm, 900mm, 1200mm, 1000mm
passive discharge bearing: :
10T
Length and length accuracy: :
± 2mm
Description

Lifetime Warranty Floor Deck Forming Machine

The floor produced by the "lifetime warranty floor deck forming machine" meets the requirements for rapid construction of the main steel structure, and can provide a solid working platform in a short time, thereby ensuring the interests of users.

The special-shaped steel plate produced by the"lifetime warranty floor deck forming machine" is very thin, and the quality of the anti-corrosion coating directly affects its service life. In order to meet the processing and anti-rust requirements, the coated steel plates need to be inspected according to relevant regulations. Under normal circumstances, you can also apply anti-rust paint after pressing the thin steel plate according to the application requirements, or use the original stainless steel thin steel plate.

"Lifetime warranty floor deck forming machine" is operated or guided by experienced and skilled workers. From raw material selection, parts processing to assembly and inspection, a dedicated service team has been established to ensure that users' problems can be effectively solved.

The floor produced by the "lifetime warranty floor deck forming machine" can be used as a load-bearing structure. At the same time, in order to improve the bonding force between the profile steel plate and the concrete, it is recommended to weld the studs in advance or suppress the bidirectional stiffeners on the steel plate.

Main parameters of Lifetime Warranty Floor Deck Forming Machine

Model Lifetime Warranty Floor deck Forming Machine
Forming Roller Stations 25
Driving Motor Power 11KW
Pump Motor Power 11KW
Cutting Type Hydraulic Cutting
Shaft Information 80MM SOLID
Automatic PLC Brand AUTO DELTA PLC PROGRAM
HIM Touch-screen HIM TOUCH-WIN OPERATION
Sidewall Structure 16mm
Under Frame 400 H-beam
LENGTH TOLERANCE 10M±1MM
