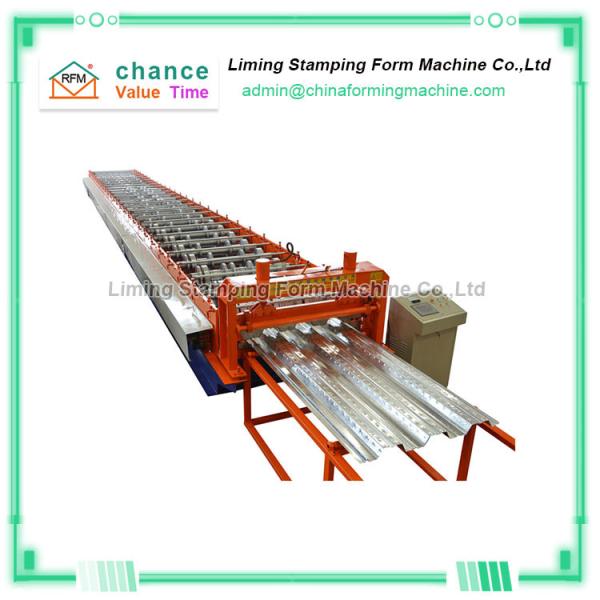

Galvanized Plate Floor Deck Machine 13000KG 40Cr Shaft
Galvanized Plate Floor Deck Machine 13000KG 40Cr Shaft
Specifications
Brand Name :
LIMING
Model Number :
LM-floor5
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type: :
Tile Forming Machine
Tile Type: :
Colored Glaze Steel
Core Components: :
Motor, Pump, Engine, PLC
Production Capacity: :
12m/min
Dimension(L*W*H): :
8700*2230*1330mm
Voltage :
380V 50Hz 3Phases
Rolling thinckness: :
0.3-1mm
Feeding width: :
1220mm, 900mm, 1200mm, 1000mm
Weight :
13000KG (estimated only)
Warranty :
18 Month
Description

915 Automatic Floor Deck Forming Machine

Floor deck is the fastest growing field in the past decade. In the United States, the use of lightweight flooring accounts for more than 50% of non-residential construction investment, so the "915 automatic floor deck forming machine" is very promising in the market.

"915 automatic floor deck forming machine" has a high level of industrialization and commercialization, with fast construction speed and high comprehensive benefits.

The finished product produced by "915 automatic floor deck forming machine" is easy to carry out the construction of steel bars, wires and pipes;

The finished product produced by "915 automatic floor deck forming machine" can be used as part of the structural strength to reduce material costs;

"915 automatic floor deck forming machine" has a simple and beautiful appearance

"915 automatic floor deck forming machine" has been accurately calculated by German design software and consists of 26 processes

"915 automatic floor deck forming machine" is easy to operate and can be operated by one person, and the production speed can reach 12-15m/min

Main parameters of 915 Automatic Floor Deck Forming Machine

No. Type specification
1 Row Material Type Color steel plate, galvanized plate, aluminum plate
Feeding width 1220mm
Thickness 0.8-1 mm
Effiect width 1000mm
2 Main body Forming roller station 26 Stations
Diameter of shaft 90mm
Shaft material 40Cr, Numerical Control Machining To HRC28-32, Then Polishing and Hard Plating
Roller material GCr15# Steel , Heat Treatment to HRC58-60,Then Polishing and Hard Plating
frame 400mm H Steel
Frame thickenss 20mm
Working speed 8-12 m/min
Size (L*W*H) About 15200*1850*1510mm
Weight About 16.5 tons
3 Power Motor power 11KW+11KW
Hydraulic power 5.5KW
Voltage 380V 50Hz 3phases or Customerization
Drving Way By Chain
4 PLC Contro System Language English and Chinese
Brand Of PLC Delta brand (Touch Screen )
Operation Manual and Automatic (Two Type)
Transducer Delta brand
5 Cutting Device Cutting Type Hydraulic Cutting
Blade of Cutting Cr12 , quenching treatment
Cutting Tolerance + -1mm
