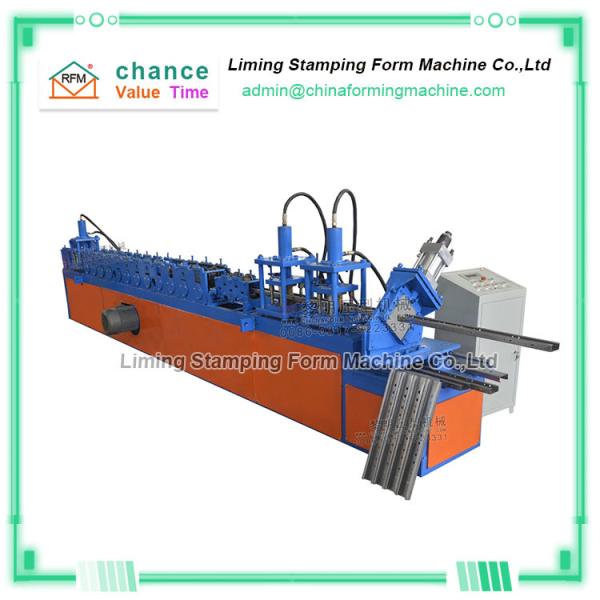

Thickness 3mm Z Purlin Forming Machine GCR15 Roller
Thickness 3mm Z Purlin Forming Machine GCR15 Roller
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin32
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Main frame: :
300H Steel
Production Capacity: :
16-20m/min
Type: :
Steel Frame & Purlin Machine
thickness of coil sheet: :
1-3mm
Warranty :
2 years
Main Motor Power: :
22kw
Cutting blade material: :
Cr12Mov
diameter of shaft: :
70 mm
controlling system: :
famous PLC computer control
Description

3mm Thickness Z Shaped Purlin Roll Forming Machine

Our professional engineers will select suitable materials and high-quality parameters for the "3mm thickness Z shaped purlin roll forming machine", so that the machine can run well and prolong its service life. We will try our best to deal with all the details.

Comparison of advantages of "3mm thickness Z shaped purlin roll forming machine"

1. Energy consumption: "3mm thickness Z shaped purlin roll forming machine" saves electricity and energy (saving 15 kWh per hour)

2. Reduce waste disposal: "3mm thickness Z shaped purlin roll forming machine" has less length waste (flying saw cuts about 5mm, loss after cutting; unlimited cuts about 8mm of waste can be treated as waste.)

3. Environment: "3mm thickness Z shaped purlin roll forming machine" stepless cutting, no noise pollution, no dust, safe and durable.

4. In terms of labor: "3mm thickness Z shaped purlin roll forming machine" does not need to change the mold, and can be cut at will, saving time and energy.

5. "3mm thickness Z shaped purlin roll forming machine" can be replaced more quickly, without keeping a large number of molds.

Technical parameters of 3mm Thickness Z Shaped Purlin Roll Forming Machine

Types of Purlin machine C purlin machine Z purlin machine
Cutting Type Mould cutting Mould cutting
Fly saw cutting Fly saw cutting
Wuji cuting Wuji cuting
Roller stations 13 13
Step of leveling roller 3 upper step , 4 lower step 3 upper step , 4 lower step
Thickness 2-3mm 2-3mm
Shaft diameter 80mm 80mm
Shaft type solid solid
Roller mayerial GCR15 ,Quenching GCR15 ,Quenching
PLC Delta Delta
Computer screen Touch screen Touch screen
Main motor 11KW 11KW
Hydraulic motor 5.5KW 5.5KW
Board thickness 20mm 20mm
Chain size 2 inch 2 inch
