Smoke Exhaust Duct Fireproof Wrap Rock Fiber Panel Class A Non Combustible
Smoke Exhaust Duct Fireproof Wrap Rock Fiber Panel Class A Non Combustible
Specifications
Payment Terms :
L/C,T/T
Thickness :
10mm
Fire resistance :
≥3.0 h
Smoke toxicity :
ZA₁ grade
Density :
1000-1200 kg/m³
Flexural strength :
≥25 MPa
Place of Origin :
china
MOQ :
1 container.
Fire performance :
Class A, non-combustible
Description

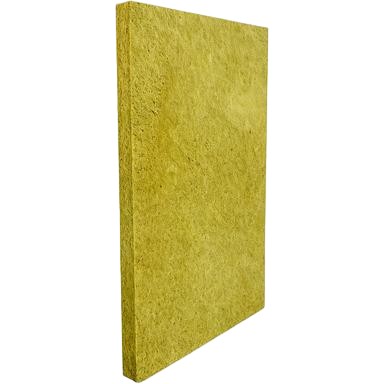

Smoke Exhaust Duct Fireproof Wrap Rock Fiber Panel - Class A Non-Combustible
Product Description

Rock fiber panel specifically designed for fireproof wrapping of building smoke exhaust duct systems, meeting strict building fire code requirements for duct fire resistance. The 10mm-thick panel combined with rock wool provides 3-hour fire protection, preventing secondary fires from high-temperature exhaust smoke and ensuring normal operation of exhaust systems during fire events.

Applications

Fireproof wrapping of smoke exhaust ducts, smoke exhaust ducts, and pressurized air supply ducts in:

  • High-rise buildings
  • Underground spaces
  • Hospitals
  • Shopping malls
  • Subway stations
Technical Specifications
Parameter Unit Typical Value
Density kg/m³ 1000-1200
Flexural strength MPa ≥25
Fire resistance (combined with rock wool) h ≥3.0
Fire performance -- Class A, non-combustible
Smoke toxicity class -- ZA₁ grade
Smoke Exhaust Duct Fireproof Wrap Rock Fiber Panel Class A Non Combustible
Key Features
  • Class A non-combustible material with no droplets upon ignition
  • Smoke toxicity complies with ZA1 safety standard
  • Surface accepts fireproof coating to meet various fire resistance ratings
  • Excellent weather resistance, suitable for humid basement and special environments
