Exterior Wall Decoration Rock Fiber Panel Weather Resistant Aluminum Laminate
Exterior Wall Decoration Rock Fiber Panel Weather Resistant Aluminum Laminate
Specifications
Flexural strength :
≥25 MPa
Impact Strength :
3 kJ/m²
MOQ :
1 container.
Modulus of elasticity :
5630 MPa
Density :
1000-1200 kg/m³
Place of Origin :
china
Moisture Swelling Rate :
0.05%
Fire performance :
Class A, non-combustible
Payment Terms :
L/C,T/T
Description

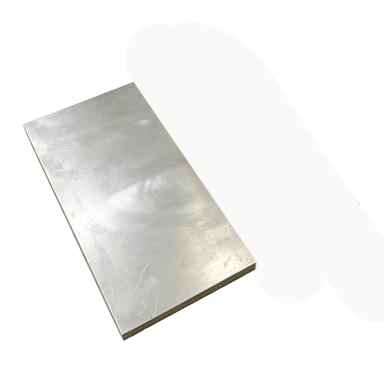

Exterior Wall Decoration - Rock Fiber Panel - Weather-Resistant Aluminum Laminate
Product Overview

Exterior wall decorative panel using high-strength rock fiber panel as substrate with aluminum sheet lamination and fluorocarbon or polyester coating. The aluminum laminate offers excellent weather resistance, corrosion resistance, and self-cleaning properties, available in solid colors, metallic tones, brushed finishes, and stone grain effects.

The panel is Class A non-combustible, and the high-density rock fiber substrate provides thermal insulation, wind load resistance, and fire barrier functionality. Suitable for exterior wall decoration of high-rise buildings and extreme climate regions.

Applications

Exterior wall decoration systems for high-rise building curtain walls, airport terminals, stadiums, commercial complexes, and industrial plants; suitable for prefabricated building exterior cladding systems.

Technical Specifications
Parameter Unit Typical Value
Density kg/m³ 1000-1200
Flexural strength MPa ≥25
Modulus of elasticity MPa 5630
Fire performance -- Class A, non-combustible
Moisture Swelling Rate % 0.05
24-hour water absorption thickness expansion rate % 0
Screw Holding Capacity N 1300
Impact Strength kJ/m² 3
Freezing resistance (100 Freeze-thaw cycles)
no cracking or delamination observed, flexural strength ratio of 96%
Moisture resistance (after cyclic testing)
Water absorption thickness expansion rate 0.2%, Internal bonding strength retention rate 113%, Static flexural strength retention rate 99%
Exterior Wall Decoration Rock Fiber Panel Weather Resistant Aluminum Laminate
Key Features
  • Fluorocarbon coating on aluminum surface provides long-lasting color and performance
  • Metal layer enhances impact resistance and wind load capacity
  • Self-cleaning surface, rain rinse maintains cleanliness
  • Class A non-combustible substrate provides reliable fire barrier
  • Composite structure provides thermal insulation, reducing building energy consumption
