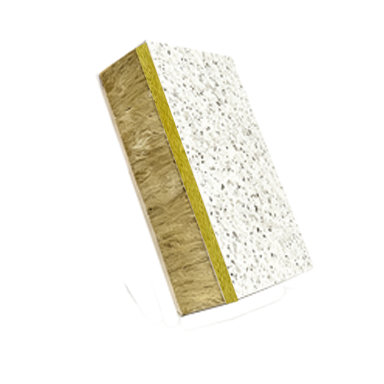

Rock Fiber Decorative Panel For Insulation Composite Panel Class A Non Combustible
Rock Fiber Decorative Panel For Insulation Composite Panel Class A Non Combustible
Specifications
Payment Terms :
L/C,T/T
Place of Origin :
china
Fire performance :
Class A, non-combustible
Impact strength :
3 kJ/m²
Screw holding capacity :
1300 N
Flexural strength :
≥25 MPa
MOQ :
1 container.
Modulus of elasticity :
5630 MPa
Density :
1000-1200 kg/m³
Description
Rock Fiber Decorative Panel for Insulation Composite Panel - Class A Non-Combustible
Product Description

High-strength rock fiber decorative panel specifically designed for insulation composite panel systems. Used as the face layer material to bond with insulation cores such as XPS, EPS, rock wool, or graphite EPS panels. The rock fiber panel itself is Class A non-combustible, significantly improving the overall fire rating of the composite panel to meet both building energy efficiency and fire safety standards.

The panel surface is interface-enhanced for high bonding strength with insulation layers and excellent aging resistance. The finish can be customized with stone-like paint, fluorocarbon coating, metal coating, etc., achieving integration of decorative effect and structural function.

Applications

Exterior insulation finishing systems (EIFS) for new buildings, and integrated insulation-decoration renovation projects for existing buildings; suitable for exterior wall insulation and decoration systems of residential buildings, offices, hospitals, schools, and industrial plants.

Specifications
Parameter Unit Typical Value
Density kg/m³ 1000-1200
Flexural strength MPa ≥25
Modulus of elasticity MPa 5630
Fire performance — Class A, non-combustible
Moisture Swelling Rate % 0.05
24-hour water absorption thickness expansion rate % 0
Screw Holding Capacity N 1300
Impact Strength kJ/m² 3
Freezing resistance (100 Freeze-thaw cycles) no cracking or delamination observed, flexural strength ratio of 96%
Moisture resistance (after cyclic testing) Water absorption thickness expansion rate 0.2%, Internal bonding strength retention rate 113%, Static flexural strength retention rate 99%
Rock Fiber Decorative Panel For Insulation Composite Panel Class A Non Combustible
Key Features
  • Class A non-combustible face layer upgrades the composite panel to A-class fire rating
  • High flexural strength resists wind pressure and external impact
  • Excellent compatibility with various insulation cores, strong bonding without hollowing
  • Weather-resistant and anti-stain finish coating, strong self-cleaning ability, low maintenance cost
